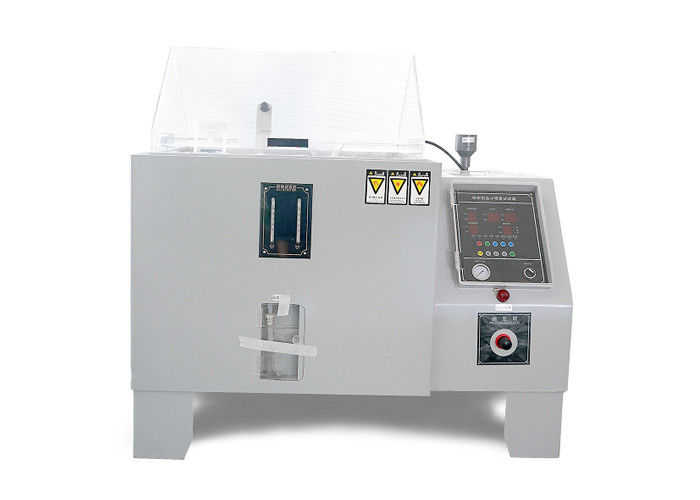

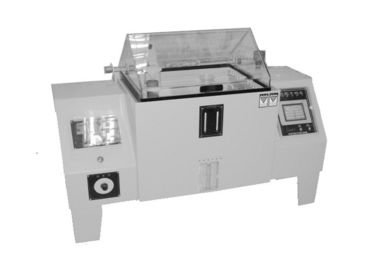

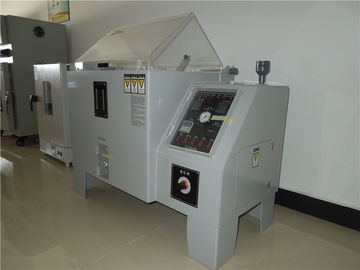

Professional White Corrosion Testing Salt Fog Chamber High Performance

Professional White Corrosion Testing Salt Fog Chamber High Performance

HD-E808-60 Salt Spray Chamber.pdf

HD-E808-90 Salt Spray Chamber.pdf

HD-E808-120 Salt Spray Chamber.pdf

Product Description:

Professional White Corrosion Testing Salt Fog Chamber is the use of salt spray corrosion way to detect corrosion, respectively, the reliability of the sample, salt spray refers to the atmosphere by diffusion system composed of tiny droplets of salt, artificial environment of three anti-series one of many companies need to simulate the destructive product of marine climate surrounding the product caused by salt spray chamber so the line should run. Salt spray test is divided into neutral and acidic salt spray two, the difference lies in the different standards and test methods to comply, respectively, said "NSS" and "CASS" test, three anti-artificial climate the most common test method

Do Test Method:

Neutral salt spray test (NSS test) salt spray test (SS test)
Acetic acid salt spray test (ASS test)
Copper accelerated vinegar instinct test

As a neutral salt spray test (NSS test), reinforced with PVC rigid plastic board when the salt spray test (SS test).
Using as acetic acid salt spray test (ASS test), copper accelerated vinegar instinct test (CASS test) when the PP plate.
Compared PP board PVC board and more resistant to corrosion at high temperatures.

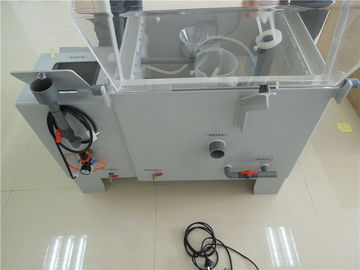

Structural features:

1, inside and outside the gallbladder were integrally molded glass fiber reinforced epoxy, light weight, corrosion resistance, high strength, no leakage, the surface, smooth and easy to clean and so on.
2, the water seal in the form of salt spray will not spill, jacket heating duct, so the studio warming up fast, uniform temperature distribution.
3, salt box cover is designed to 110 ~ 112 ℃ apex, not to direct the cold box of condensed water dripping on the test.
4, spray-way tower spray, spray tower placed on the underside of the middle of the studio. Nozzle material is quartz glass baked sprayed mist of fine materials, salt spray natural subsidence was distributed evenly.
5, the control system equipment is placed in the upper right box, user-friendly operation, set the power switch, ranked fog switch, spray switch on the front panel, two self-tuning PID digital instrumentation and equipment operation timer and a gap spray timer circuit board in the cabinet also ad hoc over-temperature protection.

Specification:

Standards:

CNS, 3627,3885,4159,7669,7670,8886,JIS,D020,H8302,H8610,K5400, Z2371,ISO,3768,3769,3770,ASTM,B117, B268

Precautions:

1, regular cleaning and maintenance of salt spray chamber pressure tank, brine tank nozzle.
2. Do not pressure sodium chloride solution from the barrel manually add water poured out, the first transfer solution within the cylinder and then further cleaned with distilled water.
3, Do not test the exhaust pipe behind the blockage, in order to avoid too much pressure to make the cabinets housing deformation.
4, do not put inflammable and explosive materials inside.
5, salt spray chamber behind the pressure gauge is 2 kg, 1 kg in front, factory in Wuhan still test test Equipment Co., Ltd. has designed, do not tamper with.
6, spray amount is less than set the spray tower to increase, reduce excessive spray spray tower (spray amount collected standard is 1 ~ 2ml / h, takes in 16-hour average)

Operation interface:
