Product Details:
|
| PH: | NSS ACSS6.5~7.2 CASS 3.0~3.2 | Power: | 1A C220V |
|---|---|---|---|
| Certificate: | ISO9001:2008 | Design Criteria: | CNS, JIS, K5400, Z2371, ASTM |
| Spray Quantity: | 1.0~2.0 Ml / 80cm2 / Hr | Brine Temperature: | 35°C±1°C |
| Test Chamber Temperature: | NSS ACSS 35±1°C CASS:50±1°C | Temperature Precision: | ±1°C |
| High Light: | salt fog testing,salt spray test machine |
||

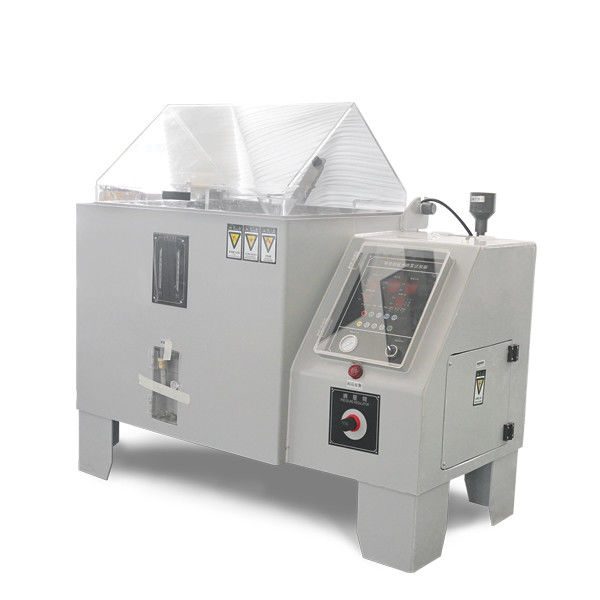

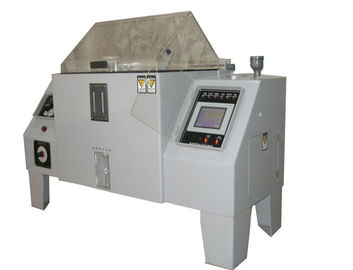

Intelligent Salt Spray Test Machine Corrosion Test Chamber
HD-E808-60 Salt Spray Chamber.pdf
HD-E808-90 Salt Spray Chamber.pdf
HD-E808-120 Salt Spray Chamber.pdf
HD-E808-160 Salt Spray Chamber.pdf
Product Description:
Salt Spray Test Chamber can simulate the marine climate and can be used to test the salt fog resistant performance of materials, products and their coatings. They can also be used to evaluate the quality of the coatings.
Product Parameters:
| Model | HD-E808-90 |
| Internal Size (L×W×H) | 900x600x500mm |
| External Size (L×W×H) | 1410x880x1280mm |
| Equipment Material | Both inside & outside shell adopt P.V.C rigid plastic board |
| Temperature Range | Room temperature ~ 55℃ |
| Temperature Fluctuations | ≤±0.5℃ |
| Temperature Uniformity | ≤±2℃ |
| Temperature Precision | ±1℃ |
| Spraying method | Continuous and Periodic spray type |
| Test Chamber Temperature | Salt Spray Method (NSS ACSS)35±1℃ Corrosion-resistant Testing Method (CASS) 50±1℃ |
| Saturated air Barrel Temperature | Salt Spray Method (NSS ACSS)47±1℃ Corrosion-resistant Testing Method (CASS) 63±1℃ |
| Brine Temperature | 35℃±1℃ |
| Spray Quantity | 1.0~2.0 ml / 80cm2 / hr |
| PH value | Salt Spray Method (NSS ACSS6.5~7.2) Corrosion-resistant Testing Method(CASS)3.0~3.2 |
| Lab Volume | 270L |
| Brine Tank Capacity | 25L |
| Multiple Safety Protection Devices | Current discharge protection, over pressure protection, over temperature protection, over load fuse protection |
| Accessories | Testing Salt/ Measuring tank/Nozzle Equipment x 1 set |
| Air source | 1HP Air pump (provided by buyer) |
Main Components:
|
Controller x 1set |
Sensor x 2pcs |
| Pressure regulation valve x 2pcs | Spray magnetic valve x 1pc |
| SO2 feeding magnetic valve x 1pc | Cyclic motor x 1pc |
| Desulphuration water pump x 1pc | Water inlet magnetic valve x 1pc |
| Water level meter x 4pcs | Heater x 1pc |
| Air filter x 1pc | O shape sample holder x 16pcs |
| V shape sample holder x 12pcs | Sodium chloride x 2 bottles |
| Measuring tank x 1pc | Hydrometer x 1pc |
| User manual x 1pc | Operation video x 1pc |

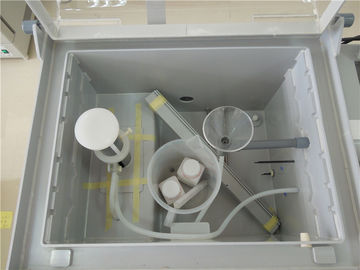

Chamber Material:
, Chamber shell: 8mm corrosion resistance PVC plate, 85℃high temperature resistance.
, Sample holder: fiberglass rod, corrosion resistance.
, Pressure barrel: 2.0mm SUS#304, seamless joint.
, Heater: titanium alloy electric heater, corrosion resistance.
, Machine support: SECC iron with paint spray, have wheels for sliding.
, Chamber cover: with imported 8mm PVC acrylic transparent observation window.
, Cover open method: SNS pneumatic method for uniform performance.
, Machine cover and body are sealed with water to avoid gas leakage.
, Gas pipe uses corrosion resistance silicone tube.
, Equip with double gas filtration device to ensure the discharge gas is not harmful for environment.
Control System:
, Temperature and humidity controller: imported Korea intelligent controller
, Sensor: PT100 test sensor
, LED digital display
, Full digital multiple warning protection system, anti-dry and anti-over temperature
, With SSR output, imported relay contact
, Multiple time mode, S, M, H can freely switch
, Multiple control method for Salt and SO2 switch
, With defog and desulphuration function to ensure salt and SO2 avoid leakage
, With flow meter to control the SO2 concentration by rate of flow and time
, With SO2 filter device, sodium hydroxide and active carbon double filter system to avoid SO2 leakage.
The Introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
See what company you will work with?
. Leading TESTING EQUIPMENT manufacturer in China
. A professional Manufacturer of various kinds of testing equipments over 24 years, defect rate is controlled under 0.02%.
. Completely Production Line. From Raw Material to Delivery, all links are under our control. The quality can be assured.
. ISO 9001:2008 Quality Management System Certificate.
. OEM/ODM Service. Just tell us your idea! Our R&D Team is standing by…
. Our Marketing Investigation Department will send Marketing Research Report to you each season.
. We are trusted by SCS, INTERTEK, HST, COFCO, ESC, KBMC, LENOVO, PANASONIC, EMC, BYD etc.
. We accept 100% inspection.
. Guarantee Period: 365 days, After Sales Service Department provides professional service with you, any questions, just contact us
Shipping &Packaging
Each set the goods is protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
