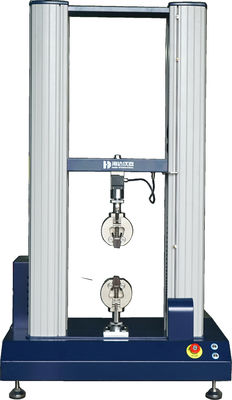

Universal Tensile Strength Testing Machine TM2101 Software Control System

Universal Tensile Strength Testing Machine TM2101 Software Control System

Universal Tensile Strength Testing Machine TM2101 Software Control System
video
Universal Tensile Strength Testing Machine TM2101 Software Control System
Product Details:
Place of Origin: China
Brand Name: HAIDA
Certification: CE,,ISO
Model Number: HD-B604-S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Frame Capacity: 2000kg Load Cell Brand: Germany Brand Load Cell For High Accuracy 2000kg (500,1000kg Are Optional)
Load Accuracy: 0.5% F.S Control System: PC With Windows 7 System
Force Reading: Panasonic Servo Motor W/AC Variable Speed Drive System, High-precision Mechanical Ball Screw Rod Force Reading: Kgf, Ibf, N, KN, T Etc
Vertical Test Space: 1200mm Including Fixture Horizontal Test Space: ≤400mm
Test Speed: 0.1~500mm/min (adjustable) Software: TM 2101
High Light:

universal test equipment

,

tensile testing equipments

                                    Universal Tensile Strength Testing Machine TM2101 Software Control System




Universal Tensile Strength Testing Machine TM2101 Software Control System 0HD-B604B-S Universal Test Machine.pdf



Introduction:

Tensile testing machine is used to test the mechanical properties of various materials such as static load, tensile, compression, bending, shearing, tearing, peeling and other mechanical properties of mechanical equipment. It is suitable for plastic plates, pipes, and other materials. Various physical and mechanical performance tests of profiles, plastic films and rubber, wires and cables, steel, fiberglass and other materials are developed for materials



APPLICATIONS

1. Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.

2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.

3. Deformation under defined load: Test deformation under defined load of tested sample

4. Load under defined deformation: Test load under defined deformation of tested sample

5. Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.



STANDARD FEATURES



Item Description
Frame capacity 2000kg

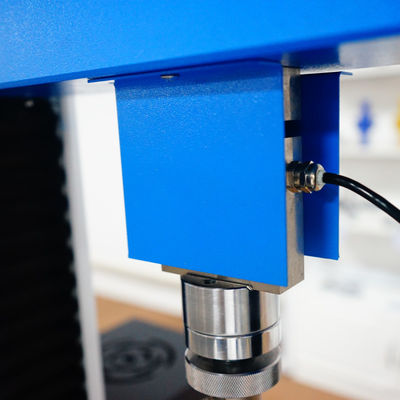

Load cell brand

Germany brand load cell for high accuracy,

2000kg (500,1000kg are optional)

Load accuracy 0.5% F.S
Control system PC with windows 7 system
Motor Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod
Force reading kgf, Ibf, N, KN, T etc
Vertical test space 1200mm including fixture
Horizontal test space ≤400mm
Test speed 0.1~500mm/min (adjustable)
Software TM 2101
Curves display Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…
Safety features

E-Stop

Over-load protection

Upper and lower limit switches

Load sensor with automatic retreat





SOFTWARE TM 2101

tensile test machine software



User setting page



Universal Tensile Strength Testing Machine TM2101 Software Control System 2

Curves display picture



Universal Tensile Strength Testing Machine TM2101 Software Control System 3

Test result picture



Universal Tensile Strength Testing Machine TM2101 Software Control System 4

Test curve page
