|PH:||NSS ACSS6.5~7.2 CASS 3.0~3.2||Power:||1A C220V|
|Certificate:||ISO9001:2008||Design Criteria:||CNS, JIS, K5400, Z2371, ASTM|
|Spray Quantity:||1.0~2.0 Ml / 80cm2 / Hr||Warranty Period:||12 Months|
|Brine Temperature:||35°C±1°C||Test Chamber Temperature:||NSS ACSS 35±1°C CASS:50±1°C|
corrosion testing equipment,
salt fog testing

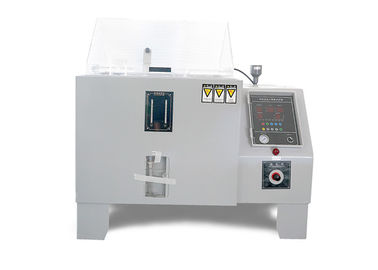

ASTM Salt Spray Tester Corrosion Testing Equipment P.I.D.Temperature Control
Product Image & Description:
ASTM Salt Spray Tester Corrosion Test Chamber P.I.D.Temperature Control through the examination of the material and its ability to salt spray corrosion protective layer, and a protective layer similar process quality compared to the same time assess the ability of certain product resistance to salt spray corrosion; this product is suitable for parts and components, electronic element, protective layer, and salt spray corrosion testing of industrial products, metal materials.
1.Automatic add water when water shortage, with a group of manually water
2.Special glass nozzle, guarantee non-crystalline block for 4000 hours
3.With dual over-temperature protection, water shortage warning, ensure safety use
4.Temperature device adopts digital display, SSR control, precision is 0.1 centigrade degree
5.Chamber adopts direct steam heating method, fast warming, shortening standby time
6.Spray tower attached cone diffuser, with functions of directional mist, adjustable mist, and uniformity fog lamp.
1, after the end of each test, the switch should open the oil-water separator, the oil water put the net, and wipe clean.
2, if a long-term test should not saturated the water put the net, in normal use, should periodically replace the water in the saturator.
3, not long-term, if re-do the test, and to deal with all the electrical supply, gas supply system to make a specific system check, after the failure to prevent the boot.
4, found dirt clogging the nozzle, remove the nozzle promptly with alcohol, xylene, or 1: 1 hydrochloric acid wash or superfine wire careful and clear, not damage the wall of the nozzle opening, so as not to affect the spray quality.
1, Chamber shell: 8mm corrosion resistance PVC plate, 85℃high temperature resistance.
2, Sample holder: fiberglass rod, corrosion resistance.
3, Pressure barrel: 2.0mm SUS#304, seamless joint.
4, Heater: titanium alloy electric heater, corrosion resistance.
5, Machine support: SECC iron with paint spray, have wheels for sliding.
6, Chamber cover: with imported 8mm PVC acrylic transparent observation window.
7, Cover open method: SNS pneumatic method for uniform performance.
8, Machine cover and body are sealed with water to avoid gas leakage.
9, Gas pipe uses corrosion resistance silicone tube.
10, Equip with double gas filtration device to ensure the discharge gas is not harmful for environment.
|Internal Size (L×W×H)||600x400x450mm|
|External Size (L×W×H)||1070x600×1180mm|
|Equipment Material||Both inside & outside shell adopt P.V.C rigid plastic board|
|Temperature Range||Room temperature ~ 55℃|
|Spraying method||Continuous and Periodic spray type|
|Test Chamber Temperature||Salt Spray Method (NSS ACSS)35±1℃
Corrosion-resistant Testing Method (CASS) 50±1℃
|Saturated air Barrel Temperature||Salt Spray Method (NSS ACSS)47±1℃
Corrosion-resistant Testing Method (CASS) 63±1℃
|Spray Quantity||1.0~2.0 ml / 80cm2 / hr|
|PH value||Salt Spray Method (NSS ACSS6.5~7.2)
Corrosion-resistant Testing Method(CASS)3.0~3.2
|Brine Tank Capacity||25L|
|Multiple Safety Protection Devices||Current discharge protection, over pressure protection, over temperature protection, over load fuse protection|
|Accessories||Testing Salt/ Measuring tank/Nozzle Equipment x 1 set|
|Air source||1HP Air pump (provided by buyer)|
|Controller x 1set||Sensor x 2pcs|
|Pressure regulation valve x 2pcs||Spray magnetic valve x 1pc|
|SO2 feeding magnetic valve x 1pc||Cyclic motor x 1pc|
|Desulphuration water pump x 1pc||Water inlet magnetic valve x 1pc|
|Water level meter x 4pcs||Heater x 1pc|
|Air filter x 1pc||O shape sample holder x 16pcs|
|V shape sample holder x 12pcs||Sodium chloride x 2 bottles|
|Measuring tank x 1pc||Hydrometer x 1pc|
|User manual x 1pc||Operation video x 1pc|
