Product Details:
|
| Low Temp. Exposure Range*1: | -65to 0 °C | Temp. Fluctuation *2: | ±1.8°C |
|---|---|---|---|
| Pre-heat Upper Limit: | +200°C | Temp. Heat Up Time*3: | Ambient Temp. To +200°C Within 30min |
| Pre-cool Lower Limit: | -65°C | Temp. Pull Down Time*3: | Ambient Temp. To -65°C Within 70min |
| Power Supply: | AC380V, 50/60Hz, Three Phase , 30A | Noise Level: | 70 DB Or Lower |
| Use: | Thermal Shock Testing Machine | ||
| High Light: | environmental testing equipment,environmental test chamber |
||

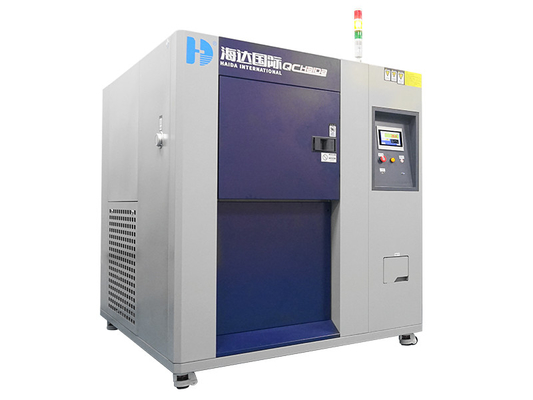

Thermal Endurance Environmental Test Chamber Temperature Humidity Chamber
1. Description:
Temperature Humidity Chamber Thermal Endurance Environmental Test Chamber is the perfect testing machine of electronic components, metal, chemical materials, automation components, communication module, national defense industry, aerospace industry, BGA, PCB substrate, electronic chip IC, semiconductor ceramic and high polymer materials.
2. Specifications of ISO certificated Professional High and Low Temperature Thermal Shock Environmental Test Device:
|
System |
Two-zone test by means of damper switching |
|||||||
|
Three-zone chamber |
||||||||
|
Model |
HD-E703-50A/HD-E703-50W |
HD-E703-100A/HD-E703-100W |
Customized |
|||||
|
Performance |
Test area |
High temp. exposure range*1 |
+60~ to +200°C |
|||||
|
Low temp. exposure range*1 |
-65to 0 °C |
|||||||
|
Temp. fluctuation *2 |
±1.8°C |
|||||||
|
Hot chamber |
Pre-heat upper limit |
+200°C |
||||||
|
Temp. heat up time*3 |
Ambient temp. to +200°C within 30min |
|||||||
|
Cold chamber |
Pre-cool lower limit |
-65°C |
||||||
|
Temp. pull down time*3 |
Ambient temp. to -65°C within 70min |
|||||||
|
Temp. recovery (2-zone) |
Recovery conditions |
Two-zone: High temp. exposure +125°C 30 min, Low temp. exposure -40°C 30 min; Specimen 6.5 kg (specimen basket 1.5kg) |
||||||
|
Temp. recovery time |
Within 10 min. |
|||||||
|
Construction |
External material |
Cold-rolled rust-proofed steel plate |
||||||
|
Test area material |
SUS304 stainless steel |
|||||||
|
Door*4 |
Manually operated door with unlock button |
|||||||
|
Heater |
Strip wire heater |
|||||||
|
Refrigeration unit |
System*5 |
Mechanical cascade refrigeration system |
||||||
|
Compressor |
Hermetically sealed scroll compressor |
|||||||
|
Expansion mechanism |
Electronic expansion valve |
|||||||
|
Refrigerant |
High temp side:R404A, Low temp side R23 |
|||||||
|
Cooler |
Stainless steel welded plate heat exchanger |
|||||||
|
Air circulator |
Sirocco fan |
|||||||
|
Damper driving unit |
Air cylinder |
|||||||
|
Fittings |
Cable port with diameter 100mm on the left side (right side and tailor made diameter size are available as options), specimen power supply control terminal |
|||||||
|
Inside dimensions (W x H x D) |
350 x 400 x 350 |
500 x 450 x 450 |
Customized |
|||||
|
Test area capacity |
50L |
100L |
Customized |
|||||
|
Test area load |
5 kg |
10 kg |
Customized |
|||||
|
Outside dimensions (W x H x D) |
1230 x 1830 x 1270 |
1380 x 1980 x 1370 |
Customized |
|||||
|
Weight |
800kg |
1100kg |
N/A |
|||||
|
Utility requirements
|
Allowable ambient conditions |
+5~30°C |
||||||
|
Power supply |
AC380V, 50/60Hz, three phase , 30A |
|||||||
|
Cooling water supply pressure*6 |
02~0.4Mpa |
|||||||
|
Cooling water supply rate*6 |
8m³ /h |
|||||||
|
Operating cooling water temp. range |
+18 to 23 °C |
|||||||
|
Noise Level |
70 dB or lower |
|||||||
Features
Unique Thermal Shock System
This unique thermal shock system uses different types of chambers for both the hot and cold chambers, an air chamber for the hot chamber and a water chamber for the cold chamber.
Labor-saving Thermal Shock Testing
Conventional thermal shock tests using a water chamber were required manual operation into the water chamber. The specimen is transferred between chambers automatically; the testing can be performed simply by setting the program and reduces labor and time.
Environmental Test Device:
Control
(Color LCD interactive touch-screen system)
Operation and settings simplified by the use of a touch-screen LCD display (instructions displayed on-screen). At-aglance confirmation of test patterns, test area temperatures, temperature cycles, and trend graph displays.
|
Setting |
Interactive key input by touch panel |
|
Display |
LCD (5.7 inches) |
|
Temperature control function |
Test area: exposure temp. Hot chamber: pre-heating temp. Cold chamber: pre-cooling temp. |
|
PID control |
|
|
Preset temperature range |
High temperature: 60 to200’C Low temperature: -78 to 0’C |
|
Setting resolution |
1’C |
|
Input |
Thermocouple type T (Copper/Copper-Nickel) |
|
Setting and indication ranges |
Preset time: 0 min. to 99 hours and 59 min. Preset cycle: 1 to 9,999 cycles |
|
Accessory function |
Timer preset Overheat/ overcool protection Power failure/ recovery selection Temperature recovery time setting Program memory Automatic power shut-off Programmed time display Test completion mode selection Trend graph Alarm history display Sensor calibration RS-232/ USB communication |
