Product Details:
|
Use Environment: | 5C~+30C, 85%R.H | Power: | AC380V, Three Phase Five Wire, 10KW |
---|---|---|---|
Box Material: | Stainless Steel SUS304# | Sample And Xenon Lamp Distance: | 300~375mm |
Rainfall Cycle: | 1~240min, Interval Is Adjustable | Rainfall Time: | 1~9999min, Adjustable |
Insulation Body: | Superfine Glass Fabric | ||
Highlight: | environmental testing equipment,environmental lab testing equipment |

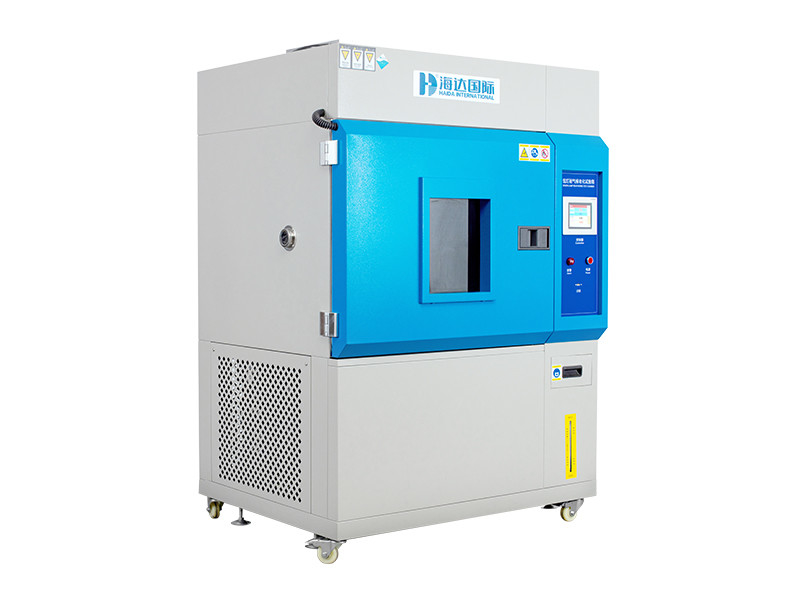

Three Phase Xenon ARC Aging Test Chamber , Environmental Testing Chamber
Production Introduction
PID Enviroment Ac380v , Three Phase Five Wire , 10kw Xenon Arc Aging Test Chamber is used for the examination of the ultraviolet irradiation resistance capacity when the materials/products are exposed in ultraviolet irradiation environment. Ultraviolet light is a term used to describe electromagnetic radiation with ultraviolet waves shorter than light visible to humans.UV light is present in sunlight and can cause chemical reactions in certain materials. This reaction caused them to glow,which is called fluoresce. It is widely applied to coating ink, paint, resin, plastics, printing, packaging, aluminum profile,cement, automobile, motorcycle, cosmetics, metal, electronic, electroplating, medicine, etc.
Feature
(1) Condensation device simulates the effect of humidity of outdoor, meeting 100% humidity.
(2) Electronic-eye irradiance control system.
(3) Use blackboard temperature sensor providing precise temperature and recurring test result.
(4) Perform humidifying, condensation and water spraying circulating test.
(5) Irradiance is calibrated by CR-10 calibrator and automatic calibration procedure (Paten technology)
(6) Specimen size and quantity: 75mm×300mm 24pcs, 75mm×150mm 40pcs
Specification
1. Inner chamber and exterior chamber material: SUS304 stainless steel.
2. Heating: Electrical heater with rapid temperature rise and temperature distribution
3. RS232 communication interface
4. Power leakage circuit breaker control circuit, overload short circuit alarm, over-temperature alarm water shortage protection.
Specifications:
Model |
HD-E711 |
Inner Box Size (DWH) |
950950900mm |
Outside Dimension (DWH) |
130015001900mm |
Humiture Range |
(RT+10)~70C; 30~98%RH |
Humiture uniformity |
2C; 3%RH |
Rainfall time |
1~9999min, adjustable |
Rainfall cycle |
1~240min, interval is adjustable |
Xenon lamp light |
xenon long-arc lamp, 6KW10%, 290-800nm, 1000W/m2200 |
Heating/humidifying power |
2.0KW/2.0KW |
Sample spinning machine speed |
1~5r/ min (adjustable) |
Sample and xenon lamp distance |
300~375mm |
Box material |
Stainless Steel SUS304# |
Insulation materials |
Superfine heat insulation cotton |
Insulation body |
Superfine glass fabric |
Circulation system |
Single cycle, centrifugal fan |
Control system |
Germany KLOCKNER-MOELLER progammable controler |
Gas processing |
dischager for fector and harmful gas |
Packaging & Shipping
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Our Services
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
4,Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5,Good Packaging:
Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
FAQ
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
