Product Details:
|
Interal Dimension: | (W×H×D)50×40×40 Cm | Structure: | Two Chambers Design |
---|---|---|---|
Damper Device: | Forced Air Drived Damper | Interior Material: | SUS# Stainless Steel Plate |
Exterior Material: | SUS# Stainless Steel Plate | Basket Material: | SUS# Stainless Steel Plate |
Highlight: | environmental test chamber,environmental lab testing equipment |

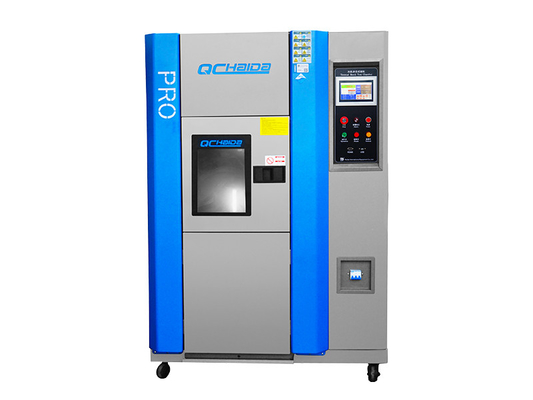

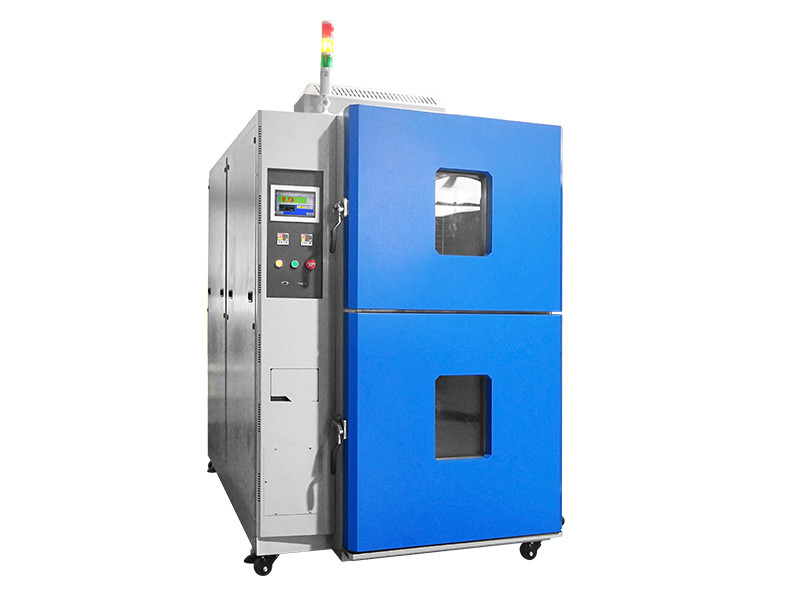

Thermal Shock Test Chamber Environmental Test Chamber Programmable Stainless Steel
Thermal Shock Chamber.pdf
Production Introduction
Environmental Test Chamber is divided into high temperature area, low temperature area and test area three parts, each area is a unique insulation structure, so doing hot and cold impact test. High-temperature impact test or low-temperature impact test, the maximum time is up to 9999 minutes, the most cycle time is up to 9999 times. The machine can be automatically or manually cycle the impact or selectively set the two areas or three areas to impact of hot and cold. It used binary cooling system that is very effectiveness for cooling.
Corresponding Standard:
GB/T2423.1-1989 low-temperature testing methodGB/T2423.2-1989 high-temperature testing method
GB/T2423.22-1989 temperature test
GJB150.5-86 temperature impact test
GJB360.7-87 temperature impact test
Applicable Industries:
Thermal Shock Test Chamber applied to aviation, military, ships, electrical, electronics, instruments and meters; medical equipment; civilian nuclear energy; colleges and universities; research laboratories; commodity inspection, arbitration, and technical supervision departments; building materials ceramic; petroleum and chemical products, For high and low temperature impact test.
Techincal Parameter:
Model |
HD-E703-80 Programmable Thermal Shock Testers |
Interal Dimension: |
(W×H×D)50×40×40 cm |
Structure: |
Two chambers design(the hot chamber or the cold chamber) |
Damper device: |
Forced air drived damper |
Interior material: |
SUS# Stainless steel plate |
Exterior material: |
SUS# Stainless steel plate |
Basket material: |
SUS# Stainless steel plate |
Refrigeration: |
Cascade refrigeration system |
Cooling method: |
Water |
Ambient temperature: |
0°~30° |
Preheating temperature: |
60.00°C~200.00°C |
Precooling temperature: |
subzero 10.00°C~subzero 70.00°C |
H.T. Shocking: |
above freezing 60.00°C~150.00°C |
L.T. Shocking: |
subzero 10.00°C~subzero 65.00°C |
