Product Details:
|
| PH: | NSS ACSS6.5~7.2 CASS 3.0~3.2 | Power: | 1A C220V |
|---|---|---|---|
| Certificate: | ISO9001:2008 | Design Criteria: | CNS, JIS, K5400, Z2371, ASTM |
| Spray Quantity: | 1.0~2.0 Ml / 80cm2 / Hr | Warranty Period: | 12 Months |
| Brine Temperature: | 35°C±1°C | Test Chamber Temperature: | NSS ACSS 35±1°C CASS:50±1°C |
| Temperature Precision: | ±1°C | Color: | White |
| High Light: | corrosion testing equipment,salt fog testing |
||
Neutral test range GB10587 Pt100 test sensors Corrosion Test Chamber
HD-E808-60 Salt Spray Chamber.pdf
HD-E808-90 Salt Spray Chamber.pdf
HD-E808-120 Salt Spray Chamber.pdf
HD-E808-160 Salt Spray Chamber.pdf
Product image & Description:

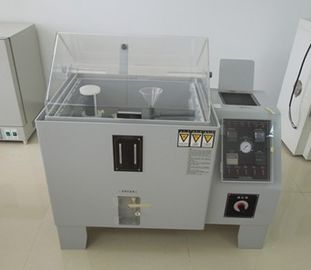

Neutral test range GB10587 Pt100 test sensors Corrosion Test Chamber is suitable for all kinds of electrical materials and parts into the salt spray corrosion testing
The disposable molded fiberglass shell, transparent cover. High-precision digital meters, PID fuzzy control. Pt100 test sensors, dual pressure protection and over-temperature protection. Air-spray, spray and adjustable time interval can be set. Temperature fluctuation ≤ ± 0.5 °C, temperature uniformity ≤ ± 2 °C. Salt settlement: 1 ~ 2ml/80cm2 hours, special nozzles, no crystallization phenomena.
corresponding standard :
1.GB/T 2423.17-1993 salt spray test
2.GB/T 2423.18-2000 salt spray test
3.GB/T 10125-1997 salt spray test
4.ASTM.B117-97 salt spray test
5.JIS H8502 salt spray test
6.IEC68-2-11 salt spray test
7.IEC68-2-52 1996 salt spray test
8.GB.10587-89 salt spray test
9.CNS.4158 salt spray test
10.CNS.4159 CASS Accelerated acetic acid copper salt spray test
11..GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test
Technical Specification:
| Model | HD-E808-90 |
| Internal Size (L×W×H) | 900x600x500mm |
| External Size (L×W×H) | 1410x880x1280mm |
| Equipment Material | Both inside & outside shell adopt P.V.C rigid plastic board |
| Temperature Range | Room temperature ~ 55℃ |
| Temperature Fluctuations | ≤±0.5℃ |
| Temperature Uniformity | ≤±2℃ |
| Temperature Precision | ±1℃ |
| Spraying method | Continuous and Periodic spray type |
| Test Chamber Temperature | Salt Spray Method (NSS ACSS)35±1℃ Corrosion-resistant Testing Method (CASS) 50±1℃ |
| Saturated air Barrel Temperature | Salt Spray Method (NSS ACSS)47±1℃ Corrosion-resistant Testing Method (CASS) 63±1℃ |
| Brine Temperature | 35℃±1℃ |
| Spray Quantity | 1.0~2.0 ml / 80cm2 / hr |
| PH value | Salt Spray Method (NSS ACSS6.5~7.2) Corrosion-resistant Testing Method(CASS)3.0~3.2 |
| Lab Volume | 270L |
| Brine Tank Capacity | 25L |
| Multiple Safety Protection Devices | Current discharge protection, over pressure protection, over temperature protection, over load fuse protection |
| Accessories | Testing Salt/ Measuring tank/Nozzle Equipment x 1 set |
| Air source | 1HP Air pump (provided by buyer) |
Image:
Control system:
1, Temperature and humidity controller: imported Korea intelligent controller
2, Sensor: PT100 test sensor
3, LED digital display
4, Full digital multiple warning protection system, anti-dry and anti-over temperature
5, With SSR output, imported relay contact
6, Multiple time mode, S, M, H can freely switch
7, Multiple control method for Salt and SO2 switch
8, With defog and desulphuration function to ensure salt and SO2 avoid leakage
9, With flow meter to control the SO2 concentration by rate of flow and time
10, With SO2 filter device, sodium hydroxide and active carbon double filter system to avoid SO2 leakage.
