Electronic Salt Spray Environmental Testing Chamber Temperature Nss Acss 6 . 5 ~ 7. 2 PH

Electronic Salt Spray Environmental Testing Chamber Temperature Nss Acss 6 . 5 ~ 7. 2 PH
Electronic Salt Spray Environmental Testing Chamber Temperature Nss Acss 6 . 5 ~ 7. 2 PH
Electronic Salt Spray Environmental Testing Chamber Temperature Nss Acss 6 . 5 ~ 7. 2 PH Electronic Salt Spray Environmental Testing Chamber Temperature Nss Acss 6 . 5 ~ 7. 2 PH Electronic Salt Spray Environmental Testing Chamber Temperature Nss Acss 6 . 5 ~ 7. 2 PH Electronic Salt Spray Environmental Testing Chamber Temperature Nss Acss 6 . 5 ~ 7. 2 PH Electronic Salt Spray Environmental Testing Chamber Temperature Nss Acss 6 . 5 ~ 7. 2 PH Electronic Salt Spray Environmental Testing Chamber Temperature Nss Acss 6 . 5 ~ 7. 2 PH Electronic Salt Spray Environmental Testing Chamber Temperature Nss Acss 6 . 5 ~ 7. 2 PH

Large Image :  Electronic Salt Spray Environmental Testing Chamber Temperature Nss Acss 6 . 5 ~ 7. 2 PH

Product Details:
Place of Origin: CHINA
Brand Name: HD
Certification: IE;ISO
Model Number: HD-E808
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C, D/A, D/P, Western Union, T/T, MoneyGram
Supply Ability: 100 Sets per Month

Electronic Salt Spray Environmental Testing Chamber Temperature Nss Acss 6 . 5 ~ 7. 2 PH

Description
Spray Quantity: 1.0~2.0 Ml / 80cm2 / Hr Brine Temperature: 35°C±1°C
Test Chamber Temperature: (NSS ACSS)35±1°C Temperature Precision: ±1°C
Temperature Range: 35°C~55°C Outside Box Size(L×W×H): 141×88×128 Cm
High Light:

salt fog testing

,

salt spray test machine

Electronic Salt Spray Environmental Testing Chamber Temperature Nss Acss 6 . 5 ~ 7. 2 PH





production introduction
Electronic Environmental Temperature Nss Acss 6 . 5 ~ 7. 2 Ph Salt Spray Chamber adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products.


production structure

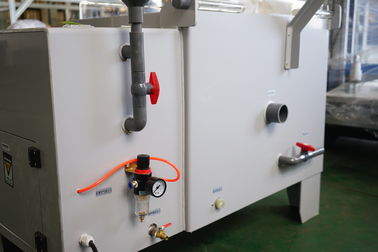

Integral moulded by the high temperature of welding and become, corrosion resistance, easy to clean, no leak phenomenon.Tower spray system, and is equipped with salt liquid filtration system, no crystallization nozzle, uniform distribution of salt fog, subsidence free adjustment.Cover the transparent material can clearly see the test items, and spray conditions in the cabinet.Between the box cover and the box body adopts a water seal structure, no salt fog overflow.Circuit control board, and other elements are fixed in position for easy inspection and maintenance, use locks open the side cover door, not only beautiful, and convenient maintenance.


Main Technical Parameter

Model HD-E808-60
Internal Size (L×W×H) 600x400x450mm
External Size (L×W×H) 1070x600×1180mm
Equipment Material Both inside & outside shell adopt P.V.C rigid plastic board
Temperature Range Room temperature ~ 55℃
Temperature Fluctuations ≤±0.5℃
Temperature Uniformity ≤±2℃
Temperature Precision ±1℃
Spraying method Continuous and Periodic spray type
Test Chamber Temperature Salt Spray Method (NSS ACSS)35±1℃
Corrosion-resistant Testing Method (CASS) 50±1℃
Saturated air Barrel Temperature Salt Spray Method (NSS ACSS)47±1℃
Corrosion-resistant Testing Method (CASS) 63±1℃
Brine Temperature 35℃±1℃
Spray Quantity 1.0~2.0 ml / 80cm2 / hr
PH value Salt Spray Method (NSS ACSS6.5~7.2)
Corrosion-resistant Testing Method(CASS)3.0~3.2
Lab Volume 108L
Brine Tank Capacity 25L
Multiple Safety Protection Devices Current discharge protection, over pressure protection, over temperature protection, over load fuse protection
Accessories Testing Salt/ Measuring tank/Nozzle Equipment x 1 set
Air source 1HP Air pump (provided by buyer)
