PV Module Weld Material Tensile Testing Machine Solar Panel Welding Material Connection Strength Tester Tensile Test Equipment

Large Image : PV Module Weld Material Tensile Testing Machine Solar Panel Welding Material Connection Strength Tester Tensile Test Equipment

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Haida

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$1,679-1,988

Contact Now

PV Module Weld Material Tensile Testing Machine Solar Panel Welding Material Connection Strength Tester Tensile Test Equipment

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	0.5% F.S	Application:	Universal Testing, Strength Testing, Tensile Testing, Material Connection Strength Testing, PV Module Testing
Customized Support:	OEM, ODM	Power:	/
Protection Class:	/	Voltage:	220 V
Warranty:	1 Year	Frame Capacity:	2000kg
Load Cell Brand:	Germany Brand Load Cell For High Accuracy, 2000kg (500,1000kg Are Opti	Load Accuracy:	0.5% F.S
Control System:	PC With Windows 7 System	Motor:	Panasonic Servo Motor W/AC Variable Speed Drive System
Force Reading:	Kgf, Ibf, N, KN, T Etc	Vertical Test Space:	1200mm Including Fixture
Horizontal Test Space:	≤400mm	Test Speed:	0.1~500mm/min (adjustable)
Curves Display:	Load- Elongation, Elongation-time, Time-elongation, Stress-strain
Highlight:	PV Module Weld Material Tester , Solar Panel Welding Material Tester

Product Description

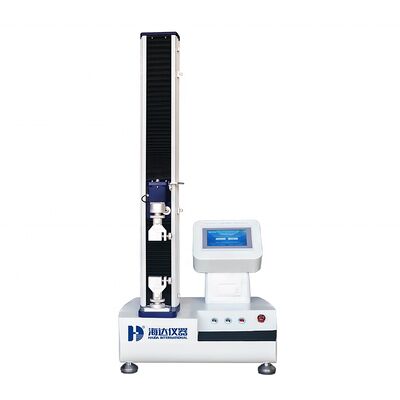

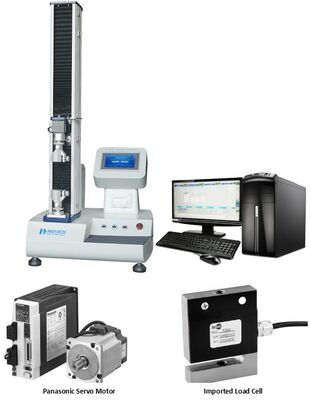

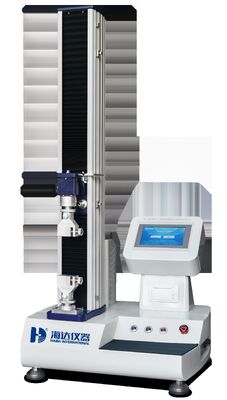

Tensile Test Machine

Computer Servo Universal Tensile Test Machine is a mechanical testing machine used for static load, tension, compression, bending, shear, tearing,peeling and other mechanical properties of instruments and equipment for various materials. Universal tensile test machine is suitable for plastic sheets, pipes, Various physical and mechanical performance tests for profiled materials, plastic films,rubber, wire and cable, steel, glass fiber and other materials are developed for material testing, teaching research, quality control and other indispensable testing equipment. Tensile machine fixtures are used as instruments. An important component,
different materials require different fixtures, which is also an important factor in whether the test can proceed smoothly and the accuracy of the test results.

Specification

Frame capacity	200kg

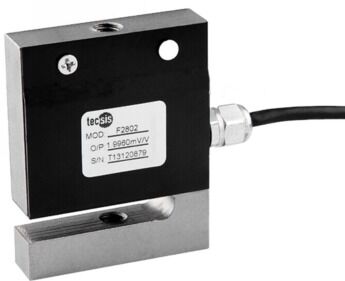

Load cell brand	Germany brand load cell for high accuracy 200kg (5,10,50,100kg are optional)
Load accuracy	0.5% F.S
Control system	LCD with build-in printer /PC with windows 7 system

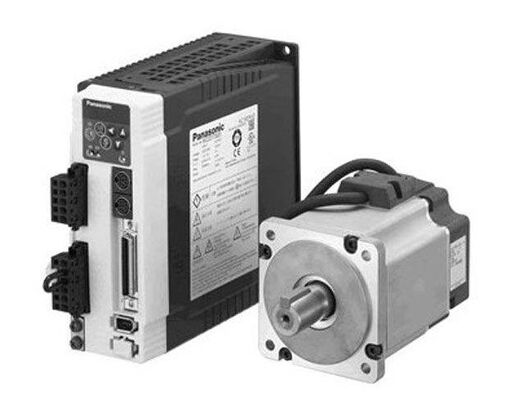

Motor	Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod
Force reading	kgf, Ibf, N, KN, T etc
Vertical test space	900mm including fixture
Test speed	0.1~500mm/min (adjustable)
Software	TM 2101
Curves display	Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display	Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…
Safety features	E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat

APPLICATIONS:
1. Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.
2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
3. Deformation under defined load: Test deformation under defined load of tested sample
4. Load under defined deformation: Test load under defined deformation of tested sample
5. Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength,
compression strength, etc.

GENERL SPECIFICATIONS:
Estimated Packaging Dimensions: (W*D*H) 630*630*1400mm
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Estimated Gross Weight: 120kg
HS Code: 9024800000

Tensile Testing Machine
