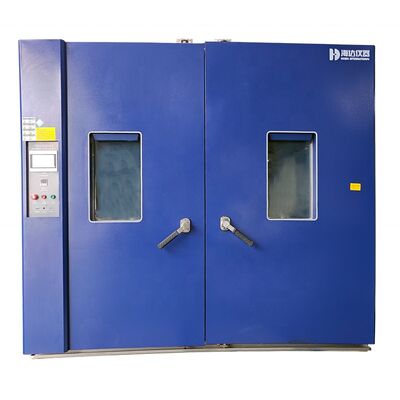

Hot Spot Endurance Testing Chamber / BBA Steady Sun Simulator Natural Light Photovoltaic Module PV Aging Tester Machine Equipment

Large Image : Hot Spot Endurance Testing Chamber / BBA Steady Sun Simulator Natural Light Photovoltaic Module PV Aging Tester Machine Equipment

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HAIDA

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$45,960-58,999 / set

Contact Now

Hot Spot Endurance Testing Chamber / BBA Steady Sun Simulator Natural Light Photovoltaic Module PV Aging Tester Machine Equipment

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	±2%(-20℃~+40℃)	Application:	Aging Testing, Photovoltaic Module Testing, Hot Spot Endurance Testing, BBA Steady, Natural Light Testing, Sun Simulator
Customized Support:	OEM, ODM	Power:	35KW
Protection Class:	/	Voltage:	380 V
Warranty:	1 Year	Wave Band:	400~1200nm
Radiation Area:	2.4m*1.4m For 4pcs Light Source To Placed 1 Pv Module	Light Method:	Upper Light, This Is Easy To Place PV Module
Sensitivity:	7~14μV/W/M2	Response Time:	≤30s(99%)
Inner Resistance:	Approx. 350Ω	Stability:	±2%
Cosine Response:	≤±5%(When The Sun's Altitude Angle Is 10 Degrees)	Temperature Characteristic:	±2%(-20℃~+40℃)
Nonlinear:	±2%
Highlight:	Hot Spot Endurance Testing Equipment , Natural Light Aging Test Equipment , Photovoltaic Module Aging Tester

Product Description

HD-E905

Hot Spot Endurance Test Machine/BBA Steady Sun Simulator

This machine will offer a near natural light source under the certain area, the light source class is BBA, It’s main used for large area PV module aging testing

Specification

Light source	4pcs, lamp import from Germany (The light source is core components, meanwhile is consumables;)
Radiation intensity	800～1200W/m²(adjustable) (single light source system can real-time signal output to the collector)
Wave band	400~1200nm
Spectral Matching Degree	Class B
Irradiation inhomogeneity	Class B
Instabilities	Class A
Radiation area	2.4m*1.4m for 4pcs light source to placed 1 pv module
Light source hang system	Light source hang system: upper hang ways: the main frame use high strength , and easy to move’s aluminum profile structure, between every lamp’s space can adjustable, debugging finished after, light source distance PV module’s distance approx 1.5m
Light Method	Upper light, this is easy to place PV module
Irradiation introduction	The sensor use thermoelectric effect principle, sense components adopts winding plated multi-contact thermopile, Its surface is coated with a black coating with high absorptivity. hot junction on the sensing surface ,The cold nodes are located in the inner chamber, cold and hot junction produce the temperature difference potential, within linear range, The output signal is proportional to the solar irradiance. In order to reduce temperature’s effect , will matched the temperature compensation circuit, In order to prevent the influence of environment on its performance, will use 2 layer quartz glass cover, the quartz glass cover is via precision optical cold process grinding produce
Sensitivity	7～14μV/W/M2
Response time	≤30s(99%)
Inner resistance	Approx. 350Ω
Stability	±2%
Cosine response	≤±5%(When the sun's altitude angle is 10 degrees)
Temperature characteristic	±2%(-20℃～+40℃)
Nonlinear	±2%
Testing range	0～2000W/m2
Signal output:	0～20mV
Fan cooling system	Temperature control 50±10℃
PID control	PID automatic temperature compensation control
Controller	Mitsubishi
Data acquisition and processing	First the data collector as ≤5s/times speed grasp irradiation sensor and temperature sensor as simulate signal ways high speed transfer come data, data acquisition after , then transferred to the data process unit to analysis and calculation, then as data and curve’s ways present to the final user and storage to the data base
System Special function	a. System protection function: current overload protection, temperature overload protection, leakage electric protection b. Cut off power memory function: cut offer power after, recover electricity can continue to testing c. 2.3.3 System support Chinese and English language , the interface can change each other 2.3.4 Support data storage, history information query, data export/print, the report can save to the Word, Excel, PDF JPG etc format
Environmental installation requirement	Running environment: standard lab environment, temperature 25±2℃, humidity:60％
Power	Three-phase, 380V, 50Hz Power approx:35KW

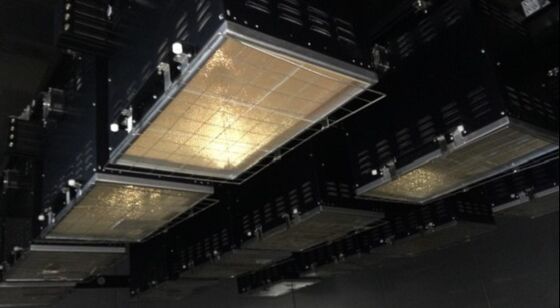

Light source array distribution

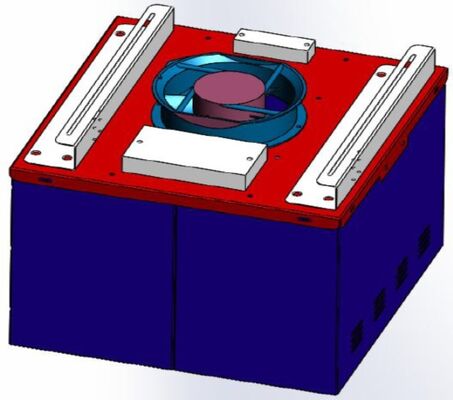

Single group light source

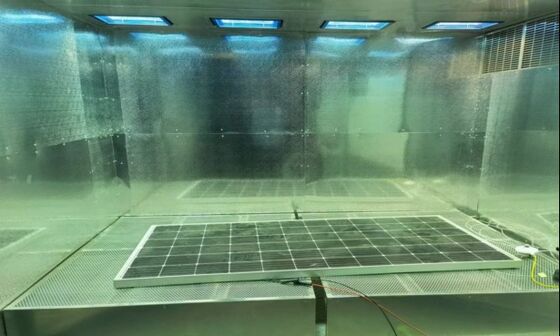

System structure

This system is structure established on the pv module BBA steady state sun simulator testing platform, service to the pv module BBA steady state sun simulator data acquisition and result processing software

Spectral curve
