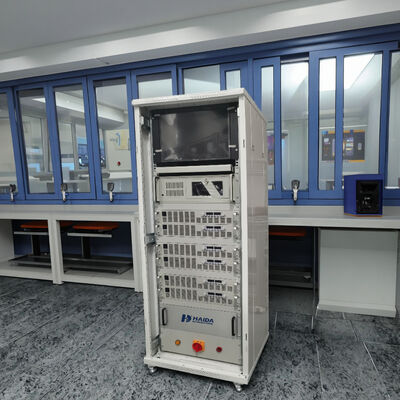

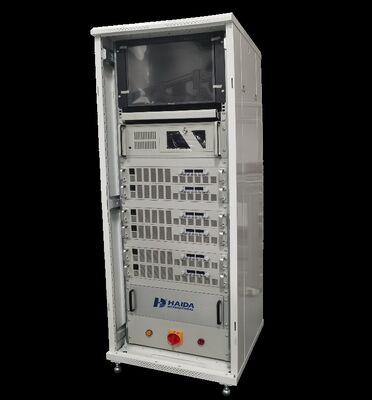

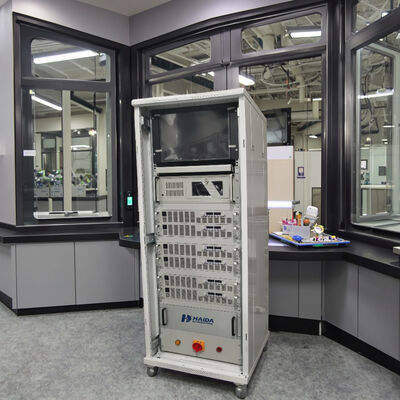

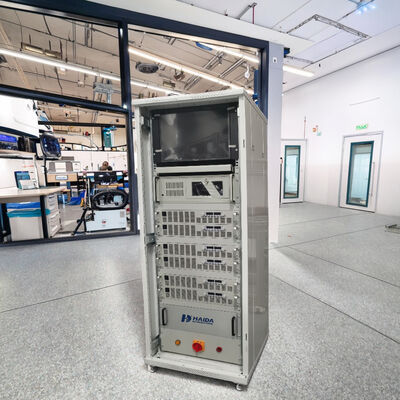

Circuit Continuity Monitoring System Temperature and Current Testing Machine Circuit Continuity Monitoring Testing Equipment

Large Image : Circuit Continuity Monitoring System Temperature and Current Testing Machine Circuit Continuity Monitoring Testing Equipment

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HAIDA

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Circuit Continuity Monitoring System Temperature and Current Testing Machine Circuit Continuity Monitoring Testing Equipment

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	/	Application:	Temperature And Current Testing
Customized Support:	OEM, ODM	Power:	/
Protection Class:	/	Voltage:	220 V
Warranty:	1 Year	Power Supply Type:	DC Constant Current Power Supply
Power Supply Number:	12 Units	Software Features 1:	Time Control: Start/end Time Settings, Auto-stop Function
Software Features 2:	Data Export: Saves In Excel Format, Reusable Historical Data Export	Software Features 3:	Real-time Display: I/V/T Curve Visualization
Software Features 4:	Alarm System: Logs Time, Object, Event Description For Fault Tracing	Retention Period:	Displays And Sets The Retention Period For Saved Data
Highlight:	Circuit Continuity Monitoring System , Current Testing Machine , Monitoring Testing Equipment

Product Description

HD-E920

Circuit Continuity Monitoring System

This circuit continuity monitoring system is combined with rapid thermal cycle test room to monitor the product temperature and current.

Specification

Power Supply Type	DC Constant Current Power Supply
Power Supply Number	12 units
Current Switching Function	IEC 61215-2:2021 automatically switches current according to the following procedure (red line in the figure below):
Test requirement part 1	A 5 N weight capable of being attached to the electrical termination leads of the module
Test requirement part 2	Connect the temperature monitoring equipment to the temperature sensors. Connect each module to the appropriate current source by connecting the module’s positive terminal to the positive terminal of the power supply and connecting the second terminal accordingly. During the thermal cycling test, set the continuous current during the heating phase to the technical specification current (see 4.11.2d), for a temperature range from −40 °C to +80 °C.
Test requirement part 2		During the cooling phase, at the −40 °C dwell stage and when the temperature is above 80 °C, the continuous current shall be reduced to no more than 1.0% of the measured STC peak power current for monitoring continuity. If the temperature rises too quickly at the lowest temperature (exceeding 100 °C/hour), the application of current may be delayed until the temperature reaches −20 °C.
Software features	Time control: start/end time settings, auto-stop function
		Data export: saves in excel format, reusable historical data export
		Real-time display: I/V/T curve visualization
		Alarm system: logs time, object, event description for fault tracing
		Retention period: displays and sets the retention period for saved data. The default value is 60 seconds. Users may
