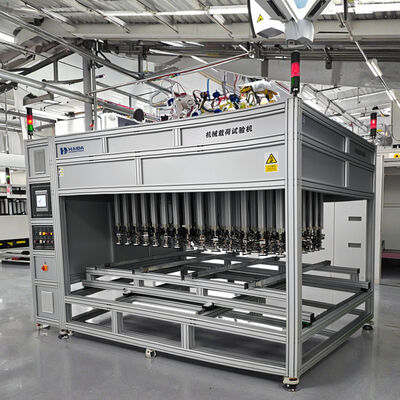

Solar PV Module Mechanical Load Test Machine Photovoltaic Panel Mechanical Load Tester Pv Module Testing Equipment

Large Image : Solar PV Module Mechanical Load Test Machine Photovoltaic Panel Mechanical Load Tester Pv Module Testing Equipment

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HAIDA

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Solar PV Module Mechanical Load Test Machine Photovoltaic Panel Mechanical Load Tester Pv Module Testing Equipment

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	/	Application:	PV Module Testing, Photovoltaic Panel Testing, Mechanical Load Testing, Solar PV Testing
Customized Support:	OEM, ODM	Power:	120V 5A
Protection Class:	/	Voltage:	220 V
Warranty:	1 Year	Cylinder Space:	Cylinder Space Is Adjustable
Cylinder Type:	Low Friction	Cylinder Stroke:	400mm
Static Mechanical Load 1:	Downward Pressure: 800 Pa ~ 12,000 Pa;	Static Mechanical Load 2:	Upward Pull: 800 Pa ~ 6,000 Pa;
Dynamic Mechanical Load 1:	Downward Pressure: -2,500 Pa ~ +2,500 Pa(Setting At Software)	Dynamic Mechanical Load 2:	Cycle: 3~7 Cycles/min
Highlight:	PV Module Mechanical Load Test Machine , Solar PV Module Tester , Photovoltaic Panel Mechanical Load Test Machine

Product Description

HD-E910

Solar PV Module Mechanical Load Test Machine

Solar PV Module Mechanical Load Test Machine employs a combined forward pressure application and reverse suction pressure mode of operation, enabling it to meet the pressure testing requirements for photovoltaic modules under extreme climatic conditions such as deserts and plateaus.

Test Standards

IEC 61215-2:2021 MQT16 Static Mechanical Load Test IEC 61215-2:2021 MQT20 Dynamic Mechanical Load Test ANSI/UL 1703:2018 Mechanical Load Test

IEC 62782: 2016 Dynamic Mechanical Load Test

Specification

Cylinder-type device	Allow the component sample to freely bend and deform under applied load, ensuring the test surface pressure uniformity remains within ±5%.
Pressure Method	Gradually and uniformly increase load until reaching the set value, using both downward pressure and upward pull methods.
Max sample size	26001400mm(LW)
Cylinder Space	Cylinder space is adjustable
Cylinder Type	Low Friction
Cylinder Stroke	400mm
Cylinder Quantity	72 sets (12*6) Enable free adjustment of suction cup spacing in both horizontal and vertical directions at equal intervals.
Cylinder distance	Cylinder Center Point Distance≤20cm
Cylinder distance		Edge cylinder center distance from module edge≤20cm
Deformation Detection	Infrared non-contact, deformation measurement range ±10 cm, accuracy ±0.5 mm, with 7 points that can be placed at any position within the same plan
DC Stabilized Power Supply	Powering 1 Module;
DC Stabilized Power Supply		DC Power Supply: 120V 5A.
Static Mechanical Load	Downward pressure: 800 Pa ~ 12,000 Pa;
Static Mechanical Load		Upward pull: 800 Pa ~ 6,000 Pa; Setting at software
Dynamic Mechanical Load	Downward pressure: -2,500 Pa ~ +2,500 Pa(Setting at software) Cycle: 3~7 cycles/min
Deflection Detection	Laser non-contact
		Measurement range≥10cm
		Accuracy±0.5mm
		Measurement points: 5 point(can be placed at any position within the same plane)
Temperature Monitoring	Equipped one temperature sensor (OMEGA T-type thermocouple) Calibration point: 25°C
Controller Controller	Capable of storing operational data, equipped with a USB interface, enabling conversion of operational data into Excel/PDF files and charts.
		Test pressure, cycle count, cycle duration, and energization current; each pressurization process is independently programmable: every test parameter for each cycle must be individually configurable.
		Each suction cup's pressure can be individually controlled, and pressure can be set separately.
		Including non-uniform snow loads, validated on top of previously delivered loads.
		Collect test pressure, time, module deflection, real-time cycle count, energized current, voltage, and module temperature data. The sampling frequency is configurable.
		Using Touchscreen control
		Control panel can display real-time test data curves; historical data and curves can be viewed on the control panel; historical data can be exported to Excel.
Safety Device	The air supply source equipped with a safety valve and status indicator lights. In the event of a test failure, the device will sound an alarm and halt the test.
Air source	0.6~0.8Mpa(prepare by user)
Power	Single-phase, 220V, 50Hz
Machine Dimension	Approx.,370020002300mm(WDH)
