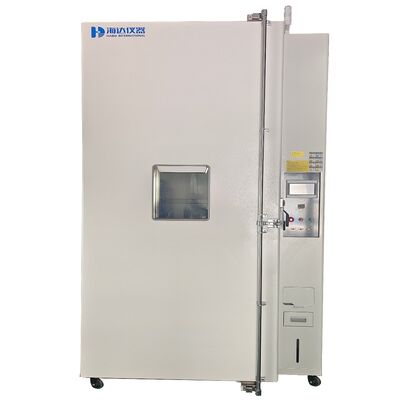

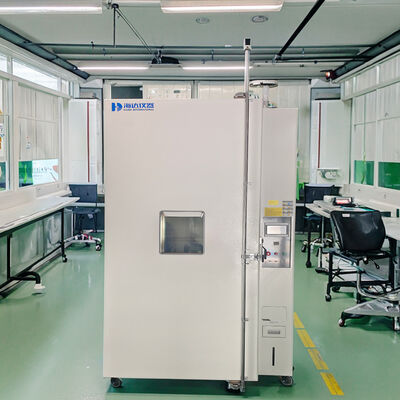

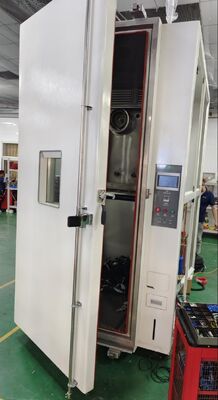

Solar Photovoltaic Rapid-rate Thermal Cycle Test Chamber PV Circuit Continuity Monitoring System Thermal Cycle Testing Equipment

Large Image : Solar Photovoltaic Rapid-rate Thermal Cycle Test Chamber PV Circuit Continuity Monitoring System Thermal Cycle Testing Equipment

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HAIDA

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$27,900-55,985 / set

Contact Now

Solar Photovoltaic Rapid-rate Thermal Cycle Test Chamber PV Circuit Continuity Monitoring System Thermal Cycle Testing Equipment

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	/	Application:	Temperature And Current Testing
Customized Support:	OEM, ODM	Power:	50KW, 100A
Protection Class:	/	Voltage:	380 V
Warranty:	1 Year	Temperature Sensor:	High Precision PT100 Platinum Resistance
Capacity:	6885L	Internal Dimension(WDH):	170015002700mm
External Dimension(WDH):	Approx. 300031003100mm	Temperature Range:	-40C + 100C
Temperature Fluctuation:	±0.5℃	Temperature Uniformity:	≤2℃
Humidity Range:	20%~95%RH	Humidity Fluctuation:	±3%RH
Power Source:	Three-phase, 380V, 50Hz 50KW, 100A
Highlight:	PV Circuit Continuity Monitoring System , Solar Photovoltaic Thermal Cycle , Solar Photovoltaic Test Chamber

Product Description

HD-E708

CRapid-rate Thermal Cycle Test Chamber

(Including Circuit Continuity Monitoring System)

Rapid-rate Thermal Cycle Test Chamber provides a wide temperature and humidity control range. This machine mainly used to test solar panel test to do Thermal cycling test, Humidity-freeze Test and Damp heat test. Customer can select suitable models based on performance and test area capacity. It is widely used in various industries, such as electronic instruments and meters, new materials, electricians, vehicles, metals, electronic products, aerospace materials , which may encounter environmental condition during transportation, storage, and in-using.

Programmable Controller

Imported Germany Bock Compressor

Specification

2.1 Cooling System
1	The refrigerating system equips Germany Bock Compressor, and uses environmentally friendly refrigerant (R404a). Adopting binary low temperature circuit system design, it is convenient to use different compressors for work in different temperature regions.
2	Temperature control using P.I.D + S.S.R system coordinated control with the same channel. It has the function of automatic calculation, which can immediately modify the temperature change conditions to make the temperature control more accurate and stable.
3	High-precision controllers of temperature. The temperature performance is accurately set and displayed with a resolution of 0.1 ℃.
2.2 Temperature System
1	Temperature system using Nickel-chromium alloy high-speed heating electric wire;
2	High temperature system is completely independent;
3	The system using stainless steel tube built-in nickel-chromium alloy high-speed heating electric wire and high-temperature magnesium oxide powder, which has fast response and long life;
4	The temperature system is completely independent
2.3 Control System
Temperature Sensor		High precision PT100 Platinum resistance
Controller		TATO
Display Function		a. Temperature Setting (SV) Practical (PV) value can be displayed directly b. Display numbers, paragraphs, remaining time and cycles, running time c. Program editing and graphic curve display, d. Fixed or program operation status display,
Interface		a. RS-232 or R485 port design b. Connected to computer c. Monitor and remote control by computer and Ethernet optional
2.4 Protection System
1	Protection for Electrical leakage
2	Over-temperature
3	Compressor overvoltage and overload
4	Heater short circuit

3.1 Capacity and Material
Model	HD-E708-6
Capacity	6885L
Internal dimension(WDH)	170015002700mm
External dimension(WDH)	Approx. 300031003100mm
Single sample dimension	2400140035mm
Test sample number	12 pieces
Internal material	SUS#304 stainless steel, mirror finished;
External material	Cold-rolled steel plate baking
3.2 Temperature
Temperature Range	-40C + 100C
Temperature fluctuation	±0.5℃
Temperature uniformity	≤2℃
Temperature Rate	Heating Rate: 3.3C/min in linear control @-40~85C
	Cooling Rate: 3.3C/min in linear control @-40~85C
3.3 Humidity
Humidity Range	20%~95%RH
Humidity fluctuation	±3%RH
Humidity uniformity	±2%RH

Temp. &Humid. Chart

3.3 Power Supply
Power Source		Three-phase, 380V, 50Hz 50KW, 100A
3.4 Cooling System and Others
Compressor		Germany Bock compressor
Refrigerant		R404A
Cooling method		Single stage compression
Cooling method		Water cooled(Water tank provide by customer)
Heating System		Nichrome stainless steel heater

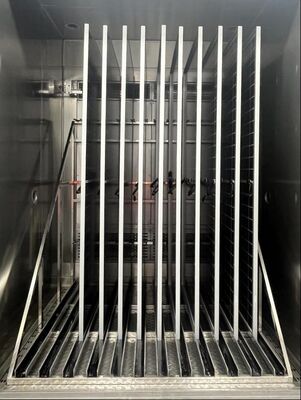

Sample tray		Customized sample holder *1
Testing hole		Diameter 100mm at side of chamber for cable routing
Evaporator		Finned tube heat exchanger
Dry filter		Absorb the residual moisture and acidic substances in the refrigerant of the refrigeration system, and filter out solid particles, copper shavings, etc. in the system to protect the normal operation of the expansion valve and capillary tube, and prevent ice blocking and dirty blocking.
Door handle		Non-reaction, explosion-proof door handle, easy to operate, safe and reliable
Insulation		100mm polyurethane rigid foam and 100mm high density glass fiber cotton
Insulation system		Filling the insulation area with ultra-fine glass fiber; Machine connection parts are made of non-metal resistant high and low temperature materials, which effectively reduces the temperature conduction; Door seal is made of refined silicone rubber, which is more reliable seal;
Observation window		Double-layer vacuum-strengthened glass; Heat-resistant defrosting on the inside with adhesive sheet conductive film, which can clearly observe inner chamber.
Note- Interior		The Interior & Bottom (Foundation Plate ) of chamber is Satin finished double walled anticorrosive Stainless steel 304 grade
3.6 Test Standard
1	IEC61215：2021 MQT 11 Thermal cycling test IEC61215：2021 MQT 12 Humidity-freeze Test IEC61215：2021 MQT 13 Damp heat test IEC 62892：2021 IEC 63126：2020

IEC61512-2021 MQT 13 Damp heat test

Test temperature: (85 ± 2) °C Relative humidity: (85 ± 5) % Test duration: (1000 h +48/0)

IEC61512-2021 MQT 11 Thermal cycling test

IEC61512-2021 MQT 12 Humidity-freeze Test
