Product Details:
|
| Usage: | Constant High Low Temperature And Humidity Test Device | Humid. Range: | 10~ 98 Percent R.H. |
|---|---|---|---|
| Temp. & Humid. Accuracy: | ± 0.3°C; ± 2 Percent R.H | Resolution: | 0.01°C, 0.1 Percent, P.I.D Control |
| Heating Up: | -40°C ~ +100°C Within 45 Min | Interior Dimension(W×D×H): | 100×100×80cm |
| Exterior Dimension(W×D×H): | 145x190x135cm | Exterior Material: | Stainless Steel Plate(SUS304) |
| Power: | AC220V±10 Percent 50/60Hz | Use: | Temp Humid Test Chamber |
| Highlight: | environmental testing equipment,environmental lab testing equipment |
||

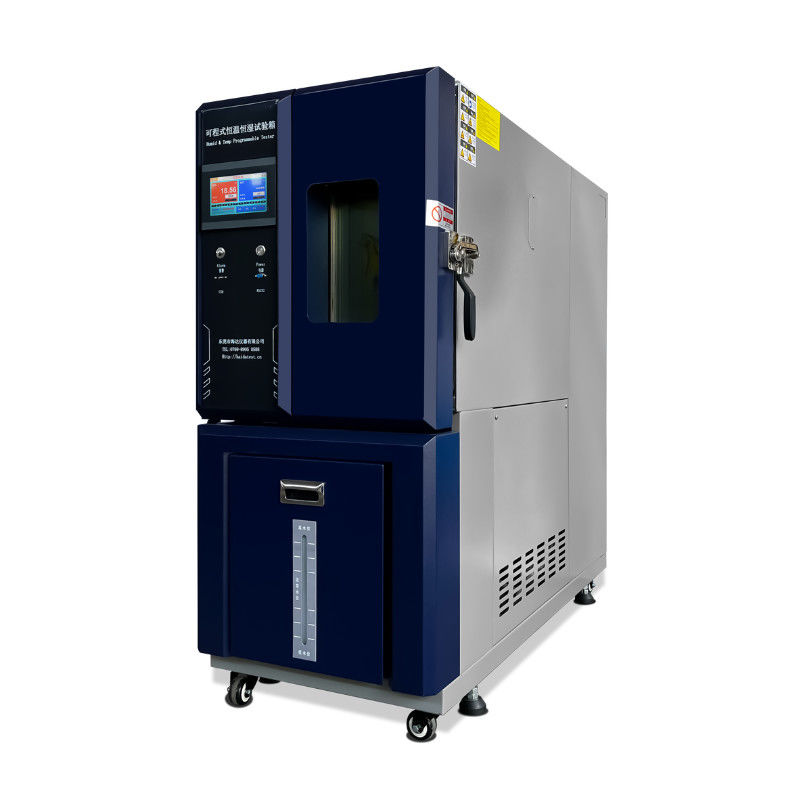

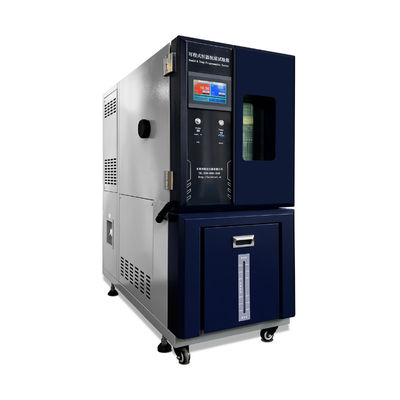

Constant High Low Temperature Humidity Chamber Professional
HD-E702-100-7 Climate Chamber.pdf
Downloadable Information
UV Accelerated Weathering Tester.pdf
Haida IPX1 - IPX8 Rain Test Chamber.pdf
UV Accelerated Weathering Tester.pdf
Operation Manual for UV Aging Test Chamber - Contr...
Constant High Low Temperature and Humidity Test Device is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.
Standard Features:
The HD series chambers have temperature change rates from 1 to 3°C per minute in average and controlled humidity from 10% to 95%. There are 6 sizes with interior volumes of 100 to 1000 Liters or we also provide tailor-made chambers of size. On the advance model for Cycling Chambers have temperature change rates from 3 to 15 °C, controlled humidity from 10 to 95%.
International Applications
HD series chambers meet international test performance standards. The units can be installed around the world for consistent testing at different facilities, supported by Haida Group and our cooperation prater in Australia, Dubai, India, Malaysia, Turkey and Vietnam. And our chambers feature two levels of overheat protection, and one levels of overcool protection. The system controller provides alarm messages with specific troubleshooting help to quickly resume testing.
System & Performance Options
Get a performance evaluation to help provide the suitable chambers to you.
For better assurance of performance for your temperature and humidity cycling application, Haida can provide a guaranteed performance calculation based on your submitted requirements.
Please use these questions as below as a guide to define your test plan. You can then give this information to our lab consultant or email to us, for review by our lab consultant. A recommended model with appropriate refrigeration size will provide to you.
(Normal Humidity Range Diagramed)
Range – 70 to 150°C
|
Temp/Humidity |
HD-E702-100-7 |
HD-E702-150-7 |
HD-E702-225-7 |
|
|
|
HD-E702-408-7 |
HD-E702-800-7 |
HD-E702-1000-7 |
|
|
Temp-only |
HD-E702-100T-7 |
HD-E702-150T-7 |
HD-E702-225T-7 |
|
|
|
HD-E702-408T-7 |
HD-E702-800T-7 |
HD-E702-1000T-7 |
|
|
Temperature Range: |
-70°C ～150°C |
|||
|
Cooling Capacity |
~ 2.5 kW at -50°C |
~ 3 kW at -50°C |
~ 5 kW at -50°C |
|
|
~ 6.5 kW at-50°C |
~ 8.5 kW at -50°C |
~ 9 kW at - -50°C |
||
|
Heating System |
~ 5 kW |
~ 5 kW |
~ 5.5 kW |
|
|
~6.5 kW |
~ 8.5 kW |
~ 9 kW |
||
|
Temperature Fluctuation: |
±0.5°C |
|||
|
Temperature Gradient: |
±0.5°C～±0.2°C |
|||
|
Heating Rate†: |
≥3℃ / min average ( Advance model 5 – 15 ℃ / min) |
|||
|
Cooling Rate†: |
≥1℃ / min average (Advance model 5 - 15℃ / min) |
|||
|
Humidity Range: |
10％～95％RH (Ref to Normal Humidity Range Diagramed) |
|||
|
Humidity Fluctuation: |
±1.5％RH～±2.0％RH |
|||
|
Humidity Gradient: |
±3％RH |
|||
|
Dimensions |
||||
|
Workspace dimensions |
500x400x500 HD-E702-100 |
600x500x500 HD-E702-150 |
750x500x600 HD-E702-225 |
|
|
|
850x650x800 HD-E702-800 |
1000x1000x800 HD-E702-800 |
1000x1000x1000 HD-E702-1000 |
|
|
Exterior dimensions |
1400x850x1050 |
1500x950x1050 |
1650x950x1150 |
|
|
|
1750x1050x1350 |
1900x1450x1350 |
1900x1450x1550 |
|
|
Site Requirements |
||||
|
Electrical Supply: |
208V 3Ø 60Hz or 230V 3Ø 60Hz (customer specific) |
|||
|
Humidity Water |
Distilled water |
|||
|
Condensate Drain: |
1/2" hose connection (gravity drain) |
|||
Range – 40 to 150°C
|
Temp/Humidity |
HD-E702-100-4 |
HD-E702-150-4 |
HD-E702-225-4 |
|
|
|
HD-E702-408-4 |
HD-E702-800-4 |
HD-E702-1000-4 |
|
|
Temp-only |
HD-E702-100T-4 |
HD-E702-150T-4 |
HD-E702-225T-4 |
|
|
|
HD-E702-408T-4 |
HD-E702-800T-4 |
HD-E702-1000T-4 |
|
|
Temperature Range: |
-40°C ～150°C |
|||
|
Cooling Capacity |
~ 2 kW at -20°C |
~ 2.5 kW at -20°C |
~ 4.5 kW at -20°C |
|
|
~ 5.5 kW at-20°C |
~ 8 kW at -20°C |
~ 8.5 kW at - -20°C |
||
|
Heating System |
~ 5 kW |
~ 5 kW |
~ 5.5 kW |
|
|
~6.5 kW |
~ 8.5 kW |
~ 9 kW |
||
|
Temperature Fluctuation: |
±0.5°C |
|||
|
Temperature Gradient: |
±0.5°C～±0.2°C |
|||
|
Heating Rate†: |
≥3℃ / min average ( Advance model 5 – 15 ℃ / min) |
|||
|
Cooling Rate†: |
≥1℃ / min average (Advance model 5 - 15℃ / min) |
|||
|
Humidity Range: |
10％～95％RH (Ref to Normal Humidity Range Diagramed) |
|||
|
Humidity Fluctuation: |
±1.5％RH～±2.0％RH |
|||
|
Humidity Gradient: |
±3％RH |
|||
|
Dimensions |
||||
|
Workspace dimensions |
500x400x500 HD-E702-100 |
600x500x500 HD-E702-150 |
750x500x600 HD-E702-225 |
|
|
|
850x650x800 HD-E702-800 |
1000x1000x800 HD-E702-800 |
1000x1000x1000 HD-E702-1000 |
|
|
Exterior dimensions |
1400x850x1050 |
1500x950x1050 |
1650x950x1150 |
|
|
|
1750x1050x1350 |
1900x1450x1350 |
1900x1450x1550 |
|
|
Site Requirements |
||||
|
Electrical Supply: |
208V 3Ø 60Hz or 230V 3Ø 60Hz (customer specific) |
|||
|
Humidity Water |
Distilled Water |
|||
|
Condensate Drain: |
1/2" hose connection (gravity drain) |
|||
View:

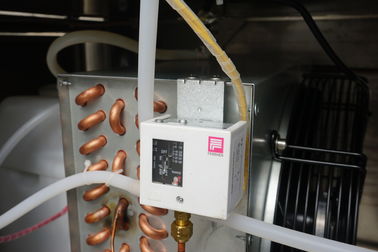

(Advanced refrigeration design is especially compact for HD-Series Chambers)
Company Information
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
See what company you will work with?
1. Leading TESTING EQUIPMENT manufacturer in China
2. A professional Manufacturer of various kinds of testing equipments over 24 years, defect rate is controlled under 0.02%.
3. Completely Production Line. From Raw Material to Delivery, all links are under our control. The quality can be assured.
4. ISO 9001:2008 Quality Management System Certificate.
5. OEM/ODM Service. Just tell us your idea! Our R&D Team is standing by…
6. Our Marketing Investigation Department will send Marketing Research Report to you each season.
7. We are trusted by SCS, INTERTEK, HST, COFCO, ESC, KBMC, LENOVO, PANASONIC, EMC, BYD etc.
8. We accept 100% inspection.
9. Guarantee Period: 365 days, After Sales Service Department provides professional service with you, any questions, just contact us
Shipping &Packaging
Each set the goods is protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
