Product Details:
|
| Product Name: | Cyclic Corrosion Test Chamber | Temperature Range: | Ambient~60℃ (No Humidity If Temp. Below +25℃) |
|---|---|---|---|
| Temperature Fluctuation: | ±3%RH | ||
| High Light: | salt fog testing,salt spray test machine |
||

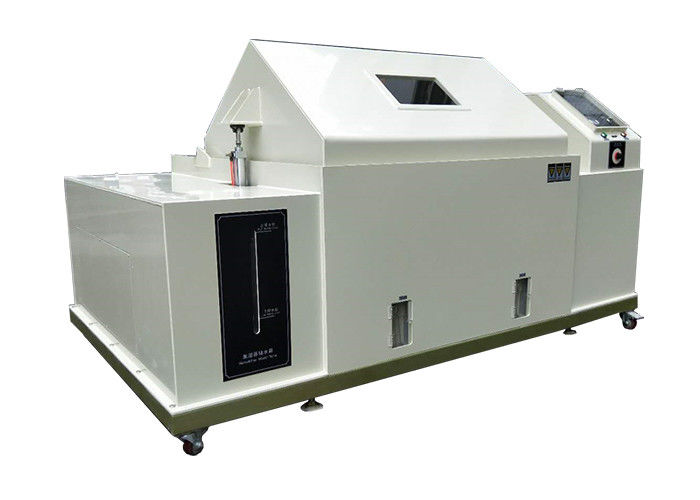

LCD Control Cyclic Corrosion Test Chamber With Temperature Humidity Testing
Introduction
Cyclic Corrosion Test Chamber can perform multiple tests, including: Salt Fog, Heating and Cooling, Humidity, Drying.The tests are programmable. You can set the test procedures according to your requirements.
In addition to the function of the usual salt spray tester, it also combines the function of alternating (circulating) salt spray test to provide a test environment such as caricature corrosion and filamentous corrosion. It has hot air drying, damp heat, forced drying and salt spray and other test environment.
The main test items are for the use of items in the environment with severe changes, such as: automotive parts, aviation equipment, building materials, coating electric, electrical machines, etc., combined with salt spray, dry, wet heat and cycle testing.
Standard Parameters
| Model | HD-E808-160-1 |
| Internal size (L*W*H) | 1600*1000*600mm |
| External size (L*W*H) | 3000*1650*1700mm |
| Equipment material | Both inside & outside shell adopt P.V.C rigid plastic board |
| Temperature range | Ambient~60℃ (No humidity if temp. below +25℃) |
| Temperature fluctuation | ±2℃ |
| Humidity range | 30% - 98% |
| Temperature fluctuation | ±3%RH |
|
Salt spray test
|
Concentration of salt solution: 5% Spray quantity: 1.0~2.0 ml / hr / 80cm2 PH value: 6.5~7.2 (at ambient temperature) |
| Spraying method | Continuous and Periodic spray type |
| Lab volume | 960L |
| Brine tank capacity | 40L |
| Multiple safety protection devices | Over pressure protection, over temperature protection, over load fuse protection |
| Air source |
2.5HP Air pump, pump capacity with 60L or above (provided by buyer) |
| Power supply source | Single-phase, 220V±10%, 50/60Hz |
Chamber Material
| Item | Specification |
| Internal chamber | High temperature resistant 8mm PVC, anti-corrosion and easy to clean |
| Chamber cover | High temperature resistant 10mm PVC |
| Saturated barrel | Imported 8mm PP impact resistance plate, high temperature and corrosion resistance, equipped with water level indicating device |
| Heating system | Titanium electric heater, corrosion resistance |
| Blower | Multi-blade blower |
| Water pump | Corrosion resistant pump |
| Solenoid valve | JPA series |
| Sample shelves | Test Angle: 15 ° - 30 °, adjustable |
| Viewing window | Double vacuum organic glass |
| Controller | PLC controller, touch screen |
| Water supply | Adopts automatic water charging system for long time operation. |
Product Features
1, Double layers sample placing design to improve the usable area of internal chamber.
2, Adopt high precision temperature and humidity controller for temperature, humidity and drying tests.

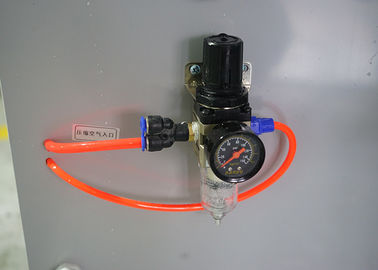

3, Two poles air inlet decompression to ensure stable spray pressure.

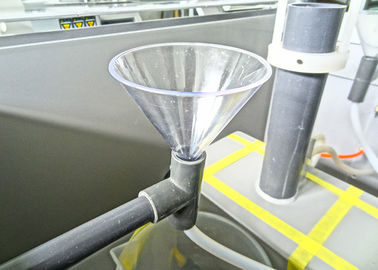

4, Spray tower has conical disperser to lead and adjust the uniformity and dripping volume of salt fog.
5, Perfect safety protection device with audio alarm and auto stop function.
6, Have saturate process for spray compressed air to ensure stable test environment and prevent nozzles from block.
7, With time controller for auto power off when setting time arrive.
