Product Details:
|
| Usage: | Constant Temperature Humidity Chamber | Temp. Range: | -70°C~150°C |
|---|---|---|---|
| Humid. Range: | 10~ 98 Percent R.H. | Resolution: | 0.01°C, 0.1 Percent, P.I.D Control |
| Interior Dimension(W×D×H): | 100×100×80cm | Interior Material: | Stainless Steel Plate(SUS304) |
| Display: | LCD | Weight: | Approx. 600 Kg |
| Power: | AC220V±10 Percent 50/60Hz | ||
| Highlight: | environmental test chamber,environmental lab testing equipment |
||

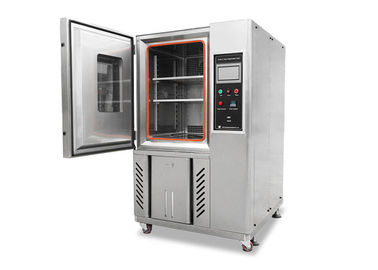

Constant Temperature Humidity Environmental Testing Chambers , Climatic Test Chamber
Temperature and humidity chamber.pdf
LCD Display Constant Temperature Humidity Chamber Water-Cooling Climatic Test Chamber can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.
1. Specifications of LCD Display Constant Temperature Humidity Chamber Water-Cooling Climatic Test Chamber
Range – 70 to 150°C
| Temp/Humidity | HD-E702-100-7 | HD-E702-150-7 | HD-E702-225-7 | |
| HD-E702-408-7 | HD-E702-800-7 | HD-E702-1000-7 | ||
| Temp-only | HD-E702-100T-7 | HD-E702-150T-7 | HD-E702-225T-7 | |
| HD-E702-408T-7 | HD-E702-800T-7 | HD-E702-1000T-7 | ||
| Temperature Range: | -70°C ～150°C | |||
| Cooling Capacity | ~ 2.5 kW at -50°C | ~ 3 kW at -50°C | ~ 5 kW at -50°C | |
| ~ 6.5 kW at-50°C | ~ 8.5 kW at -50°C | ~ 9 kW at - -50°C | ||
| Heating System | ~ 5 kW | ~ 5 kW | ~ 5.5 kW | |
| ~6.5 kW | ~ 8.5 kW | ~ 9 kW | ||
| Temperature Fluctuation: | ±0.5°C | |||
| Temperature Gradient: | ±0.5°C～±0.2°C | |||
| Heating Rate†: | ≥3℃ / min average ( Advance model 5 – 15 ℃ / min) | |||
| Cooling Rate†: | ≥1℃ / min average (Advance model 5 - 15℃ / min) | |||
| Humidity Range: | 10％～95％RH (Ref to Normal Humidity Range Diagramed) | |||
| Humidity Fluctuation: | ±1.5％RH～±2.0％RH | |||
| Humidity Gradient: | ±3％RH | |||
| Dimensions | ||||
| Workspace dimensions (WxDxH)mm: |
500x400x500 HD-E702-100 |
600x500x500 HD-E702-150 |
750x500x600 HD-E702-225 |
|
|
850x650x800 HD-E702-800 |
1000x1000x800 HD-E702-800 |
1000x1000x1000 HD-E702-1000 |
||
| Exterior dimensions (WxDxH)mm: |
1400x850x1050 | 1500x950x1050 | 1650x950x1150 | |
| 1750x1050x1350 | 1900x1450x1350 | 1900x1450x1550 | ||
| Site Requirements | ||||
| Electrical Supply: | 208V 3Ø 60Hz or 230V 3Ø 60Hz (customer specific) | |||
| Humidity Water | Distilled water | |||
| Condensate Drain: | 1/2" hose connection (gravity drain) | |||
Range – 40 to 150°C
| Temp/Humidity | HD-E702-100-4 | HD-E702-150-4 | HD-E702-225-4 | |
| HD-E702-408-4 | HD-E702-800-4 | HD-E702-1000-4 | ||
| Temp-only | HD-E702-100T-4 | HD-E702-150T-4 | HD-E702-225T-4 | |
| HD-E702-408T-4 | HD-E702-800T-4 | HD-E702-1000T-4 | ||
| Temperature Range: | -40°C ～150°C | |||
| Cooling Capacity | ~ 2 kW at -20°C | ~ 2.5 kW at -20°C | ~ 4.5 kW at -20°C | |
| ~ 5.5 kW at-20°C | ~ 8 kW at -20°C | ~ 8.5 kW at - -20°C | ||
| Heating System | ~ 5 kW | ~ 5 kW | ~ 5.5 kW | |
| ~6.5 kW | ~ 8.5 kW | ~ 9 kW | ||
| Temperature Fluctuation: | ±0.5°C | |||
| Temperature Gradient: | ±0.5°C～±0.2°C | |||
| Heating Rate†: | ≥3℃ / min average ( Advance model 5 – 15 ℃ / min) | |||
| Cooling Rate†: | ≥1℃ / min average (Advance model 5 - 15℃ / min) | |||
| Humidity Range: | 10％～95％RH (Ref to Normal Humidity Range Diagramed) | |||
| Humidity Fluctuation: | ±1.5％RH～±2.0％RH | |||
| Humidity Gradient: | ±3％RH | |||
| Dimensions | ||||
| Workspace dimensions (WxDxH)mm: |
500x400x500 HD-E702-100 |
600x500x500 HD-E702-150 |
750x500x600 HD-E702-225 |
|
|
850x650x800 HD-E702-800 |
1000x1000x800 HD-E702-800 |
1000x1000x1000 HD-E702-1000 |
||
| Exterior dimensions (WxDxH)mm: |
1400x850x1050 | 1500x950x1050 | 1650x950x1150 | |
| 1750x1050x1350 | 1900x1450x1350 | 1900x1450x1550 | ||
| Site Requirements | ||||
| Electrical Supply: | 208V 3Ø 60Hz or 230V 3Ø 60Hz (customer specific) | |||
| Humidity Water | Distilled Water | |||
| Condensate Drain: | 1/2" hose connection (gravity drain) | |||
2. Performance
Get a performance evaluation to help provide the suitable chambers to you.
For better assurance of performance for your temperature and humidity cycling application, Haida can provide a guaranteed performance calculation based on your submitted requirements.
Please use these questions as below as a guide to define your test plan. You can then give this information to our lab consultant or email to us, for review by our lab consultant. A recommended model with appropriate refrigeration size will provide to you.
System & Performance Options
(Normal Humidity Range Diagramed)
3. Features of Stainless Steels Constant Temperature Humidity Chamber Climate Test Equipment:
Vice lock type door and foam silicone packing to ensure a perfect seal Cartridge type tank for easy adding and changing of water
Tempered glass window with lamps provides a clear view of samples in the chamber, beneficial during testing Easy cleaning of condenser air-filter to prevent deterioration of refrigeration system
Leakage breaker for power supply Over current protection Overheat / overcool protection Switch-off after alarm for over heating Water empty / Door open alarm Vice lock door type locking mechanism
Standard Features:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
