1. Description:

Hight-Low Temperature Thermal Shock Chamber Environmtntal Test Chamber is the perfect testing machine of electronic components, metal, chemical materials, automation components, communication module, national defense industry, aerospace industry, BGA, PCB substrate, electronic chip IC, semiconductor ceramic and high polymer materials.





2. Specifications of Hight-Low Temperature Thermal Shock Chamber Environmtntal Test Chamber:

System Two-zone test by means of damper switching
Three-zone chamber
Model HD-E703-50A/HD-E703-50W HD-E703-100A/HD-E703-100W Customized
Performance Test area High temp. exposure range*1 +60~ to +200°C
Low temp. exposure range*1 -65to 0 °C
Temp. fluctuation *2 ±1.8°C
Hot chamber Pre-heat upper limit +200°C
Temp. heat up time*3 Ambient temp. to +200°C within 30min
Cold chamber Pre-cool lower limit -65°C
Temp. pull down time*3 Ambient temp. to -65°C within 70min
Temp. recovery (2-zone) Recovery conditions Two-zone: High temp. exposure +125°C 30 min, Low temp. exposure -40°C 30 min; Specimen 6.5 kg (specimen basket 1.5kg)
Temp. recovery time Within 10 min.
Construction External material Cold-rolled rust-proofed steel plate
Test area material SUS304 stainless steel
Door*4 Manually operated door with unlock button
Heater Strip wire heater
Refrigeration unit System*5 Mechanical cascade refrigeration system
Compressor Hermetically sealed scroll compressor
Expansion mechanism Electronic expansion valve
Refrigerant High temp side:R404A, Low temp side R23
Cooler Stainless steel welded plate heat exchanger
Air circulator Sirocco fan
Damper driving unit Air cylinder
Fittings Cable port with diameter 100mm on the left side (right side and tailor made diameter size are available as options), specimen power supply control terminal
Inside dimensions (W x H x D) 350 x 400 x 350 500 x 450 x 450 Customized
Test area capacity 50L 100L Customized
Test area load 5 kg 10 kg Customized
Outside dimensions (W x H x D) 1230 x 1830 x 1270 1380 x 1980 x 1370 Customized
Weight 800kg 1100kg N/A



Utility requirements



Allowable ambient conditions +5~30°C
Power supply AC380V, 50/60Hz, three phase , 30A
Cooling water supply pressure*6 02~0.4Mpa
Cooling water supply rate*6 8m³ /h
Operating cooling water temp. range +18 to 23 °C
Noise Level 70 dB or lower



3.Notes

1) If the high-temp exposure range lower limit + 60°C is required or the low temp exposure range lower limit -60°C, please select the “ambient-temperature exposure” option



2)If the temp fluctuation need to below ±1.8°C please select the “Low temp fluctuation package”



3) Temperature heat-up/pull down time are applicable only during independent chamber operation



4) If the automatically operated sliding door required, please select the “Automatically door package”



5) Air-cooled condenser / Water-cooled condenser both available



6) Apply on water-cooled condenser only





4. Safety Devices of Hight-Low Temperature Thermal Shock Chamber Environmtntal Test Chamber

1)Hot chamber overheat protection switch

2)Cold chamber overheat protection switch

3)Air circulator overload alarm

4)Refrigerator high/low pressure protector

5)Compressor temperature switch

6)Air pressure switch

7)Fuse

8)Water suspension relay ( water-cooled specification only)

9)Compressor circuit breaker

10)Heater circuit breaker

11)Test area overheat/overcool protector

12)Air purge valve



5.Control

Operation and settings simplified by the use of a touch-screen LCD display (instructions displayed on-screen). At-aglance confirmation of test patterns, test area temperatures, temperature cycles, and trend graph displays.



Setting Interactive key input by touch panel
Display LCD (5.7 inches)
Temperature control function

Test area: exposure temp.

Hot chamber: pre-heating temp.

Cold chamber: pre-cooling temp.

PID control
Preset temperature range

High temperature: 60 to200’C

Low temperature: -78 to 0’C

Setting resolution 1’C
Input Thermocouple type T (Copper/Copper-Nickel)
Setting and indication ranges

Preset time: 0 min. to 99 hours and 59 min.

Preset cycle: 1 to 9,999 cycles

Accessory function

Timer preset

Overheat/ overcool protection

Power failure/ recovery selection

Temperature recovery time setting

Program memory

Automatic power shut-off

Programmed time display

Test completion mode selection

Trend graph

Alarm history display

Sensor calibration

RS-232/ USB communication

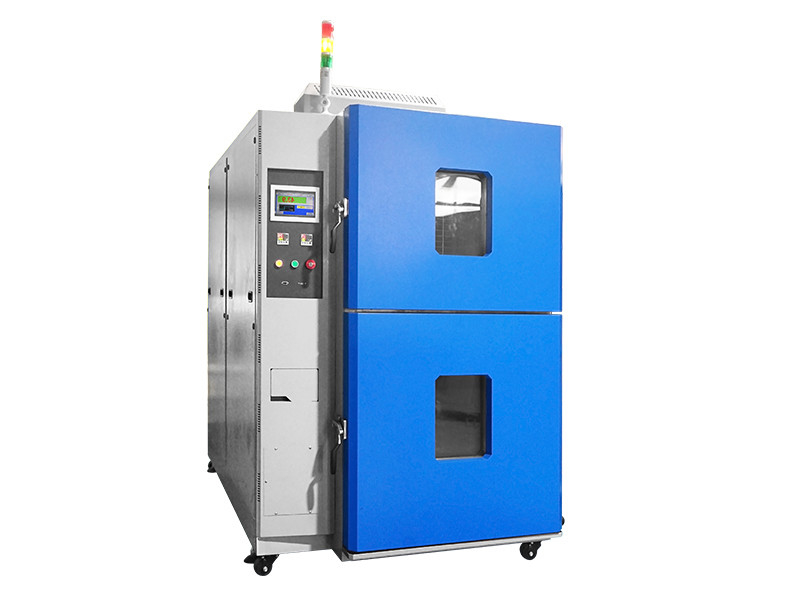

6. Hight-Low Temperature Thermal Shock Chamber Environmtntal Test Chamber view:
