Product Details:
|
| Usage: | High And Low Temperature Thermal Shock Test Chamber | High Temp. Exposure Range*1: | +60~ To +200°C |
|---|---|---|---|
| Low Temp. Exposure Range*1: | -65to 0 °C | Pre-heat Upper Limit: | +200°C |
| Pre-cool Lower Limit: | -65°C | Air Circulator: | Sirocco Fan |
| Damper Driving Unit: | Air Cylinder | Allowable Ambient Conditions: | +5~30°C |
| Cooling Water Supply Pressure*6: | 02~0.4Mpa | Cooling Water Supply Rate*6: | 8m³ /h |
| Noise Level: | 70 DB Or Lower | ||
| High Light: | environmental testing equipment,environmental lab testing equipment |
||

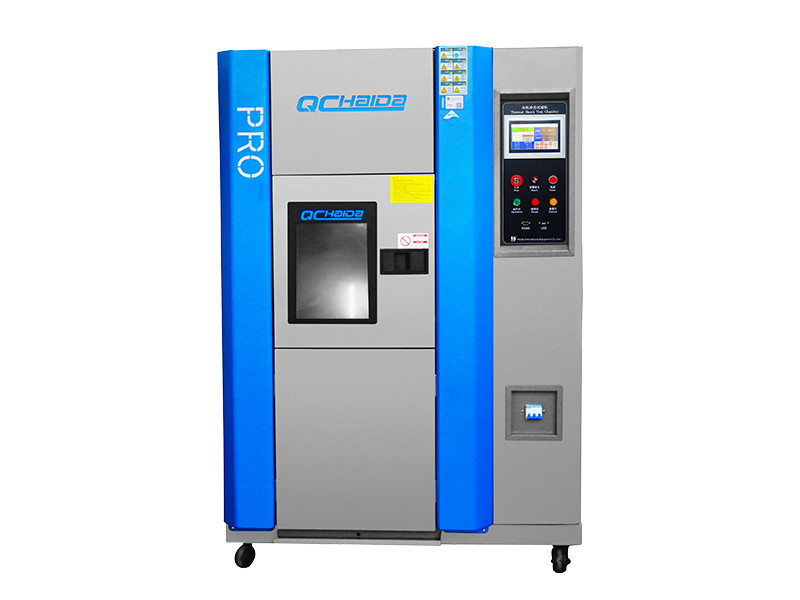

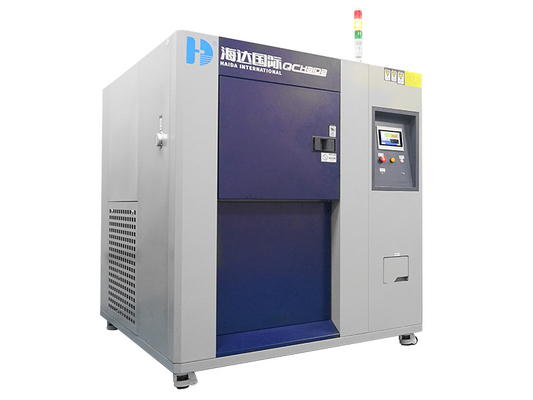

Customizable Thermal Shock Chamber battery appliance Climatic Shock Chamber
1. Description:
Customizable Thermal Shock Chamber battery appliance Climatic Shock Chamber is applies Yu electronic electrical instrument zero component, and electrical products, and plastic, and chemical industry, and food industry, and BGA, and PCB base pull, and electronic chip IC, and semiconductor pottery magnetic pharmaceutical industrial and the related products, equipment in around atmosphere temperature sharply changes conditions Xia of adaptability test (impact), adapted Yu instrument, and instrument, and electrical, and electronic products machine and the parts, for temperature fast changes or gradient conditions Xia repeatedly arrived pull and the products Yu thermal expansion and contraction output of chemical changes or physical hurt
2. Specifications
| Workroom Dimensions (cm) | 50x50x60 | 60x60x70 | 60x70x70 | 80x80x80 | 100x100x100 | ||||||
| Mobile specimen is put aside frame size (cm) | 30x30x35 | 40x40x45 | 40x50x45 | 60x60x55 | 80x80x75 | ||||||
| Temperature Range | A: -20°C-150°C B: -40°C-150°C C: -60°C-150°C D: -80°C-150°C | ||||||||||
| Fluctuation/Evenness | ±0.5°C/±2°C | ||||||||||
| Conversion time | 15s | ||||||||||
| Recovery time | 5min | ||||||||||
| Time needed for heating | RT°C~200°C≤30min | ||||||||||
| Time needed for cooling | RT°C~-45°C≤50min | ||||||||||
| The low temperature zone temperature range | -45°C ~ -10°C | ||||||||||
| High temperature control | RT+10°C ~ 200°C | ||||||||||
| The machine noise | ≤72 dB(A) | ||||||||||
| Load on the largest | ≤20kg | ||||||||||
| Equipment installed power | ~22.5KW | ~26.5KW | ~28.5KW | ~32.5KW | ~38.5KW | ||||||
| material | The studio:# SUS 304 stainless steel | The outer wall:Cold plate coating/#SUS304 | |||||||||
| Wind Cycling Way | Centrifugal fan-broadband type forced air circulation | ||||||||||
| Refrigeration Way | Single stage compression refrigeration | ||||||||||
| Refrigerater | French Tecumseh | ||||||||||
| Refrigerants | R4O4A USA Dupont environmental protection refrigerant(R404A & R23) | ||||||||||
| Condensing Way | Air-cooled or water-cooled | ||||||||||
| Heater | Nickel chrome heating wire heater | ||||||||||
| Water Suplying Way | Automatic cycling water supply | ||||||||||
| Control instrument | OYO-8226P or HLS980 | ||||||||||
| Design criteria | GJB150.5 GJB360.7 GB/T2423.22 GB10589-89 GB11158-89 | ||||||||||
| Standard Accessories |
1 Observe window(double-deck cavity toughened glass), 1 50mm test hole in the left, 1 PL inner chamber lamp, 2 The sample is put aside frame 1 bag of wet and dry bulb, 3 fuses, 1 power line. |
||||||||||
| Safety device |
Non- fuse-switch(compressor overload, refrigerant high low voltage, over-humidity and temperature protection, Protection switch,fuse stoppage warning system |
||||||||||
Notes
1. If the high-temp exposure range lower limit + 60°C is required or the low temp exposure range lower limit -60°C, please select the “ambient-temperature exposure” option
2. If the temp fluctuation need to below ±1.8°C please select the “Low temp fluctuation package”
3. Temperature heat-up/pull down time are applicable only during independent chamber operation
4. If the automatically operated sliding door required, please select the “Automatically door package”
5. Air-cooled condenser / Water-cooled condenser both available
6. Apply on water-cooled condenser only
3. Safety Devices
1)Hot chamber overheat protection switch
2)Cold chamber overheat protection switch
3)Air circulator overload alarm
4)Refrigerator high/low pressure protector
5)Compressor temperature switch
6)Air pressure switch
7)Fuse
8)Water suspension relay ( water-cooled specification only)
9)Compressor circuit breaker
10)Heater circuit breaker
11)Test area overheat/overcool protector
12)Air purge valve
Control
Operation and settings simplified by the use of a touch-screen LCD display (instructions displayed on-screen). At-aglance confirmation of test patterns, test area temperatures, temperature cycles, and trend graph displays.
|
Setting |
Interactive key input by touch panel |
|
Display |
LCD (5.7 inches) |
|
Temperature control function |
Test area: exposure temp. Hot chamber: pre-heating temp. Cold chamber: pre-cooling temp. |
|
PID control |
|
|
Preset temperature range |
High temperature: 60 to200’C Low temperature: -78 to 0’C |
|
Setting resolution |
1’C |
|
Input |
Thermocouple type T (Copper/Copper-Nickel) |
|
Setting and indication ranges |
Preset time: 0 min. to 99 hours and 59 min. Preset cycle: 1 to 9,999 cycles |
|
Accessory function |
Timer preset Overheat/ overcool protection Power failure/ recovery selection Temperature recovery time setting Program memory Automatic power shut-off Programmed time display Test completion mode selection Trend graph Alarm history display Sensor calibration RS-232/ USB communication |
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
4,Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5,Good Packaging:
Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
