|Pre-cool Lower Limit:||-65°C||Temp. Pull Down Time*3:||Ambient Temp. To -65°C Within 70min|
|Temp. Recovery Time:||Within 10 Min.||External Material:||Cold-rolled Rust-proofed Steel Plate|
|Test Area Material:||SUS304 Stainless Steel||Cooler:||Stainless Steel Welded Plate Heat Exchanger|
|Air Circulator:||Sirocco Fan||Damper Driving Unit:||Air Cylinder|
environmental testing equipment,
environmental test chamber

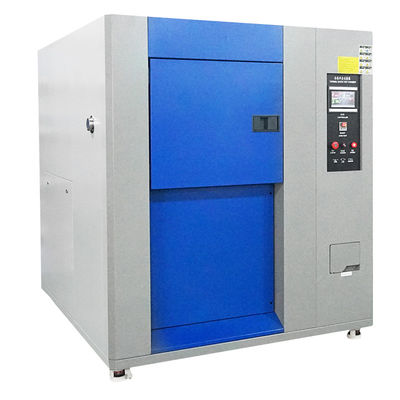

Rubber Products Thermal Shock Chamber GJB150.5-86 Compressor slide off Chamber
Thermal Shock Test Chamber
2. Material:SUS#304 stainless steel
3. Reasonable price
4. 2 year after sales servic
Rubber Products Thermal Shock Chamber GJB150.5-86 Compressor slide off Chamber is For testing material structure or composite material, in an instant by the extremely mild to extremely low temperatures continuous environment can bear, in order in the shortest time to test its chemical changes or physical damage due to thermal expansion and contraction caused by the application of objects,

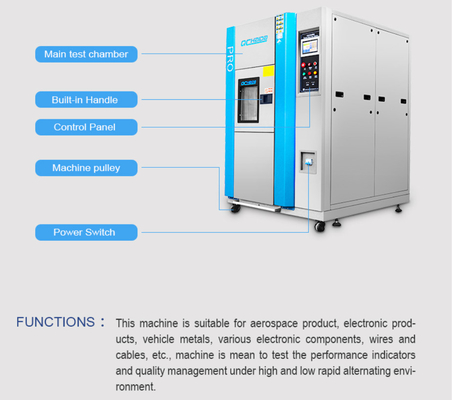

Friendly interface, easy operation setting, mature control technology, reliable operation, heating and cooling time-interleaved control, energy saving effect is very significant, colorful programmed for a variety of standard tests, comprehensive and reliable safety device for long-term continuous operation, three-box design, the test without moving.
|Inner size WxHxD(cm)||40×35×30||50×40×40||60×50×50||70×60×60||80×75×75|
|External size WxHxD(cm)||140x180x145||148X190X155||160x200X175||175x210X187||190x220x200|
(150°C~A:-45°C;B:-55°C;C:-65°C);( High temperature zone :
+60°C~+150C; Low temperature zone :-10°C~-65°C;)
|Heating up time||RT~200°C about 35min|
|Cooling down time||RT~-70°C about 85min|

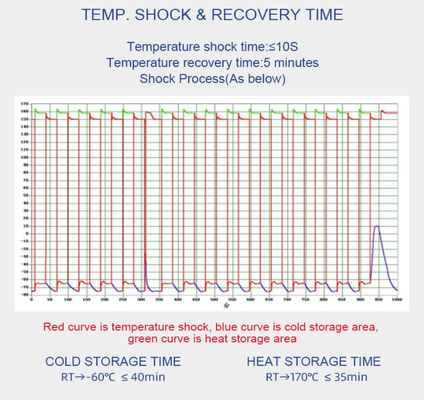

|Temp recover time/change time||≤5min / ≤10sec|
Temp control accuracy/
|±0.5°C / ±2.0°C|
SUS 304# stainless steel plate for inner chamber,and stainless steel plate
+ spray painting for external chamber.
High-temperature high-density amino acid ethyl ester foam insulator material.
P.I.D+S.S.R+Microcomputer balanced temperature control system.
Semi-hermetic two-stage compressor (water-cooled) /
hermetic two-stage compressor (air-cooled).
Fuse switch, high and low pressure protection switch compressors,
refrigerant pressure protection switch failure warning system, electronic siren.
Outlook window (special purchase), the upper and lower adjustable compartment two energized measured line hole, casters,

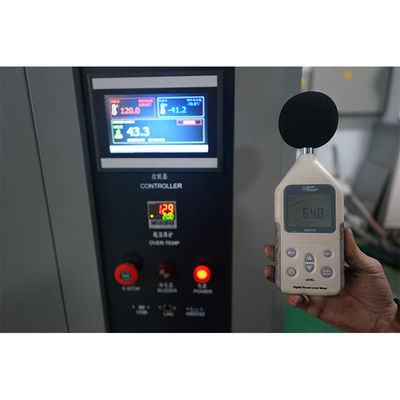

|Controller||South Korea’s“TEMI” Japan's “UMC” Brand Optional|
