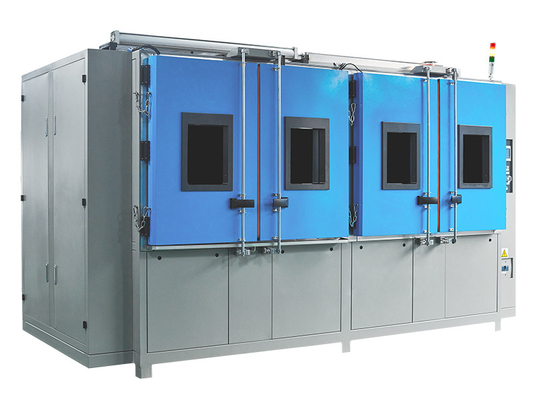

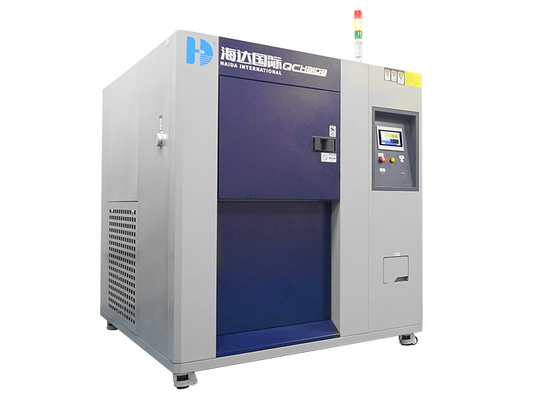

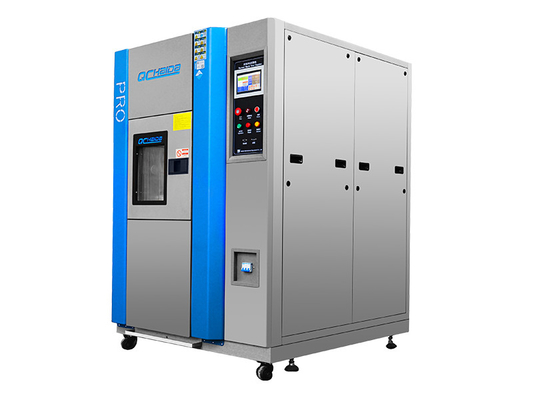

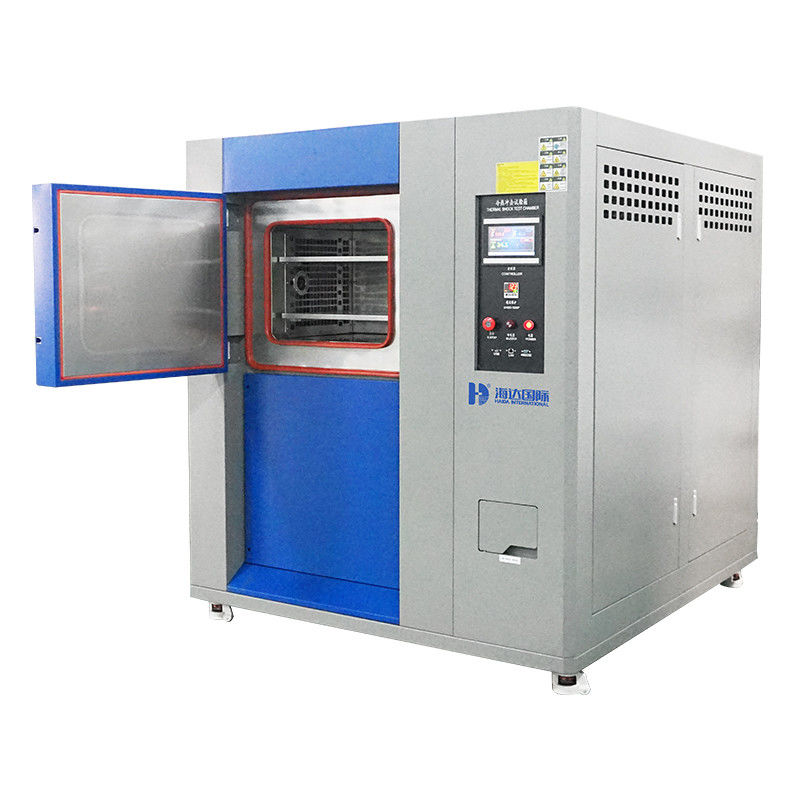

Electronic Product Thermal Shock Tester Overheating Protector Testing Chamber

Electronic Product Thermal Shock Tester Overheating Protector Testing Chamber
Electronic Product Thermal Shock Tester Overheating Protector Testing Chamber Electronic Product Thermal Shock Tester Overheating Protector Testing Chamber Electronic Product Thermal Shock Tester Overheating Protector Testing Chamber Electronic Product Thermal Shock Tester Overheating Protector Testing Chamber

Large Image :  Electronic Product Thermal Shock Tester Overheating Protector Testing Chamber

Product Details:
Place of Origin: China
Brand Name: Haida
Certification: CE,,ISO
Model Number: HD-E703
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Strong Wooden Case
Delivery Time: 15 Days After Order
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 75 Piece / Pieces Per Month

Electronic Product Thermal Shock Tester Overheating Protector Testing Chamber

Description
Usage:: Thermal Cold Hot Shock Test Inner Material:: SUS#304 Stainless Steel Plate
Temperature Accuracy:: 0.1℃ External Material: Cold-rolled Rust-proofed Steel Plate
Test Area Material: SUS304 Stainless Steel Controller:: PID + S.S.R
High Light:

environmental test chamber

,

environmental lab testing equipment

Electronic Product Thermal Shock Tester Overheating Protector Testing Chamber



Thermal Shock Chamber.pdf



Specifications

Thermal Shock Test Chamber
1. Manufacturer
2. Material:SUS#304 stainless steel
3. Reasonable price
4. 2 year after sales servic



Usage:

Thermal Shock Chamber is Testing a variety of materials for high and low temperature tensile repeated contact, test the chemical changes or physical damage to the product produced by thermal expansion and contraction, can confirm the quality of products



Characteristics:

1. Within the box material using SUS # 304 stainless steel, carton steel material used SEEC plus foundation paint, increasing the appearance of texture and cleanliness, nice shape.
2. The cabinet insulation layer made of high strength PU and cotton insulation, achieve good insulation effect.
3. The cabinet is equipped with 50mm diameter test holes, for external test power line or signal line to be produced according to customer requirements.
4. The bottom of the machine can be fixed with high quality PU activity sheaves, easy mobility.
5. Using color US WINCONTROL, Japan UNIQUE, OYO series touch screen controller, the screen is simple to operate, easy to edit programs for a variety of alternating temperature and humidity test conditions, with RS-232 communication interface and connection software, available on the computer perform various functions.
6. With RS-232 communication interface and connection software can be on the computer design program, test data collection and recording, call the program to perform various functions.





Specifications



Inner size WxHxD(cm) 40×35×30 50×40×40 60×50×50 70×60×60 80×75×75
External size WxHxD(cm) 140x180x145 148X190X155 160x200X175 175x210X187 190x220x200
Temp range

(150°C~A:-45°C;B:-55°C;C:-65°C);( High temperature zone :

+60°C~+150C; Low temperature zone :-10°C~-65°C;)

Heating up time RT~200°C about 35min
Cooling down time RT~-70°C about 85min
Temp recover time/change time ≤5min / ≤10sec

Temp control accuracy/

distribution accuracy

±0.5°C / ±2.0°C
Inner materials

SUS 304# stainless steel plate for inner chamber,and stainless steel plate

+ spray painting for external chamber.

Insulation materials

High-temperature high-density amino acid ethyl ester foam insulator material.



Systems

P.I.D+S.S.R+Microcomputer balanced temperature control system.



Cooling systems

Semi-hermetic two-stage compressor (water-cooled) /

hermetic two-stage compressor (air-cooled).



Safety devices

Fuse switch, high and low pressure protection switch compressors,

refrigerant pressure protection switch failure warning system, electronic siren.

Fitting

Outlook window (special purchase), the upper and lower adjustable compartment two energized measured line hole, casters,

level bracket.

Power AC380V 50HZ/60HZ
Controller South Korea’s“TEMI” Japan's “UMC” Brand Optional
Compressor France’s"Tecumseh" Brand



Our Services

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.

1. Pre-service

24 Hours online service for your consult.

Help choose right model,and a series of service,person,advise.

2. Middle service

--Give you best offer

--Provide discount for many sets order

--Do customer's request:

--Choose payment term you convienent.

--Promptly production and delivery,inform you in time.

--Can provide invoice value as you like to decrease your tax.

3. After sale service

--1 year warranty service and all life maintenance.

--Technical Egineer are avalible for oversea trainning.

--Free change for some parts

--Remote control technical consult

--Free installation DVD

--Maintenance plan

4,Commitment:

We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.

5,Good Packaging:

Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.

Electronic Product Thermal Shock Tester Overheating Protector Testing Chamber 0

FAQ

Q:Are your company a trading one or a factory?

A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.

Q:After an order is placed, when to deliver?

A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.

Please be aware that our production lead times depend on specific items and item quantities.

Q:What about the warranty with after - sales services?

A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair

your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

Q:What about the product' services and quality?

A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
