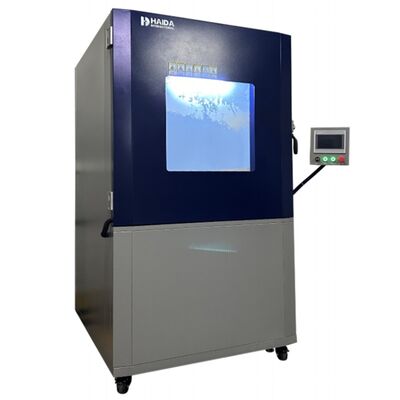

PV Module Bypass Diode Dust Testing Chamber Machine(IP6X)Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment

Large Image : PV Module Bypass Diode Dust Testing Chamber Machine(IP6X)Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HAIDA

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

PV Module Bypass Diode Dust Testing Chamber Machine(IP6X)Environmental Dust-proof Tester Dust-Resistance Strength Test Equipment

Description

Type:	Testing Machine	Accuracy Class:	Standard Accuracy
Accuracy:	Within ±15%	Application:	Sensitivity Testing, Dust Testing
Customized Support:	OEM, ODM	Power:	AC380V / 50 HZ, Approx. 5 KW
Protection Class:	/	Voltage:	380 V
Warranty:	1 Year	Specifications Of Square Mesh Sieve:	Mesh Hole 75um, Mesh Metal Wire Diameter 50um
Talcum Powder Amount:	2kg/ M³	Airflow Speed:	No More Than 2m/s
Door:	Left Open Door With Tempered Glass Door	Vacuum Pump Capacity:	60-600 L/H
Fan:	Centrifugal Fan	Chamber Material:	SUS#304 Stainless Steel
External Material:	Spray Paint Type	Internal Dimension(WDH):	800800800mm
External Dimension(WDH):	130011001800mm
Highlight:	PV Module dust testing chamber , IP6X dust-proof tester , PV Module dust-resistance test equipment

Product Description

8089-HD

Bypass Diode Dust Test Chamber(IP6X)

1, Chamber material: SUS#304 stainless steel; 2, Transparent window is convenient to observe specimen during testing; 3, Blow fan adopts stainless steel shell, high sealing and wing speed, low noise; 4, Inside the shell is the funnel type, vibration cycle can be adjusted, dust free float in the sky falling to blowing the hole together.

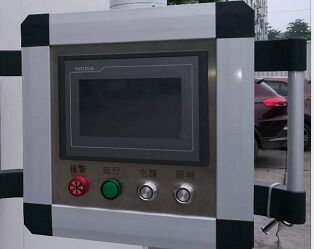

Control panel

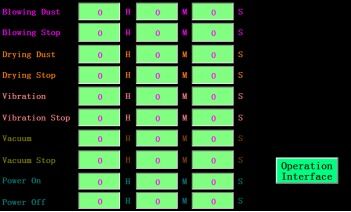

PLC operation interface

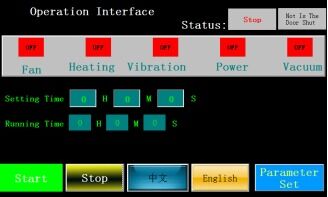

PLC operation interface

Specification

GENERL SPECIFICATIONS

Packaging Dimensions: (WxDxH) 1700*1500*2200mm Power supply source: 3-phase, AC380V±10%,50Hz (can be appointed) Gross Weight: 400kg HS Code: 8479899990

Item	Specification
Model	8089-HD
Internal dimension(WDH)	800800800mm
External dimension(WDH)	130011001800mm
Internal material	SUS304 Stainless steel
External material	Spray Paint Type
Specifications of square mesh sieve	Mesh hole 75um, mesh metal wire diameter 50um
Talcum powder amount	2kg/ m³
Airflow speed	No more than 2m/s
Door	Left open door with tempered glass door
Controller	PLC Touch Screen controller, programmable to set as below cycle: a. Blowing dust time (Stop/Blow) m/s b. Cycle time: can be adjusted c. Pre-set test time: 0s ~99m99s
Vacuum system	Pressure gauge, air filter, Pressure regulating FRL, connecting pipe, Vacuum pump
Vacuum pump capacity	60-600 L/H
Fan	Centrifugal fan
Safety protection devices	Meter over-temperature function, Phase shortage protection, Power short-circuit protection

Internal chamber with sample tray & Hopper for dust collection

Anti-dust socket for sample connect to power source

Mesh and parts for filtering test dust

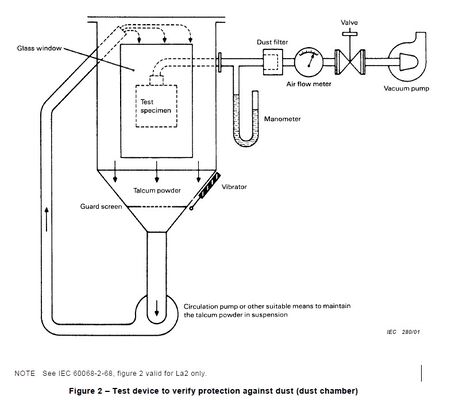

DESIGN DRAWING AS PER IEC60529 & IEC20653
