PV Potential Induced Degradation PID Testing Machine Photovoltaic Module Humid and High-Temperature Simulation Tester Equipment

Large Image : PV Potential Induced Degradation PID Testing Machine Photovoltaic Module Humid and High-Temperature Simulation Tester Equipment

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HAIDA

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

PV Potential Induced Degradation PID Testing Machine Photovoltaic Module Humid and High-Temperature Simulation Tester Equipment

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	0.5%	Application:	Photovoltaic Module Testing, PV Simulation Testing, PV Humid Testing, Humid And High-Temperature Testing, PID
Customized Support:	OEM, ODM	Power:	220V, 50Hz
Protection Class:	/	Voltage:	220 V
Warranty:	1 Year	Voltage Range:	-2000V ~ 2000V
Voltage Resolution:	1V	Voltage Accuracy:	±3% (referencing CNAS-CL01-A021:2018)
Voltage Tolerance:	0.5% (referencing IEC 62804-1-1:2020)	Current Measurement Range:	0~1mA Resolution: 0.01μA (as Specified In IEC 62804-1-1:2020)
Acquisition Interval:	≤5min(adjustable At Software)	Power:	Single Phase, 220V, 50Hz
Highlight:	PID Testing Machine Equipment , High-Temperature Simulation Tester Equipment

Product Description

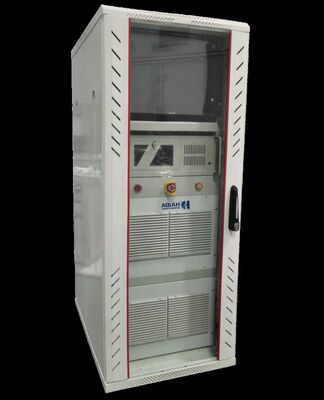

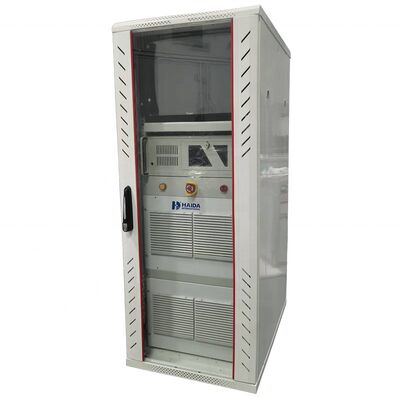

HD-E900

Potential Induced Degradation(PID) Test Machine

Potential Induced Degradation (PID) testing evaluates the ability of photovoltaic modules to resist potential-induced deterioration by simulating harsh electric field and humid heat conditions.

Specification

TECHNICAL PARAMETERS
Item	Specification
DC Regulated Power Supply	12 channels(Independently monitoring and control) Each channel can independently control the voltage polarity
Voltage range	-2000V ~ 2000V
Voltage resolution	1V
Voltage stability	For continuous output of 1000V, 1500V, and 2000V, voltage fluctuation is ≤2% within 500 hours
Connection method	Module frame grounded, connector shorted and then connected to the high-voltage terminal; for negative voltage testing and positive voltage recovery, only switch toggling is needed, no change in connection method required
Voltage application method	20 power channels operate independently, capable of outputting different polarities and voltages
Voltage accuracy	±3% (referencing CNAS-CL01-A021:2018)
Voltage tolerance	0.5% (referencing IEC 62804-1-1:2020)
Current measurement range	0~1mA Resolution: 0.01μA (as specified in IEC 62804-1-1:2020)
Acquisition interval	≤5min(adjustable at software)
Safety protection features	Overcurrent alarm, overvoltage alarm, overtemperature alarm, communication interface with environmental test chamber
Power	Single phase, 220V, 50Hz

TEST STANDARD
Items	Description
Test Standard	IEC61215-2: 2021 MQT 21 Potential Induced Degradation Test IEC 62804-1-1:2020“Photovoltaic (PV) modules - Test methods for the detection of potential-induced degradation Part 1-1 Crystalline silicon – Delamination” IEC 63209:2019 Extended-stress testing of photovoltaic modules

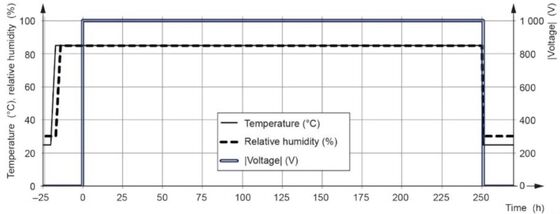

IEC 62804-1-1:2020 Test Cycle

(Tips: to achieve temperature and humidity control, test cycle required combined with climate chamber)

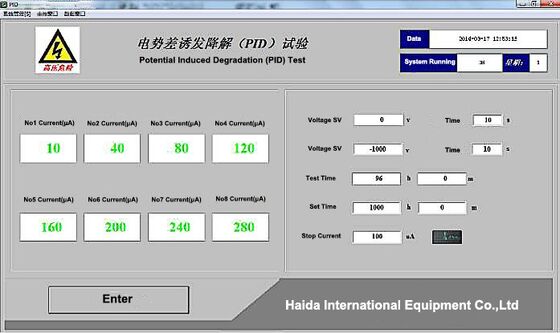

Main Interface
