PV Bypass Diode Thermal Testing Machine Thermal Tester Photovoltaic Module Thermal Effect Protective Function Testing Equipment

Large Image : PV Bypass Diode Thermal Testing Machine Thermal Tester Photovoltaic Module Thermal Effect Protective Function Testing Equipment

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HAIDA

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

PV Bypass Diode Thermal Testing Machine Thermal Tester Photovoltaic Module Thermal Effect Protective Function Testing Equipment

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	≤1℃	Application:	Photovoltaic Module Testing, Hot Spot Endurance Testing, Thermal Testing, Thermal Shock Testing
Customized Support:	OEM, ODM	Power:	220V, 50Hz
Protection Class:	/	Voltage:	220 V
Warranty:	1 Year	Pulse Power Supply:	20μs~999s(adjustable)
Current Range:	0-60A; Deviation ±2%	Thermal Runaway Test:	Forward Current - Reverse Voltage ≤10ms
DC Power Supply:	Current Range 0-60A; Deviation ±1%	Voltage Range:	0-20V; Deviation ±1%
Voltage Acquisition Accuracy:	≤0.2V	Functional Test:	Diode I-V Curve <1s
Temperature Range:	RT~200C	Temperature Rise Time:	5 C/ Min In Average
Observation Window:	250*250mm
Highlight:	Photovoltaic Module Testing Equipment , Module Thermal Effect Testing Equipment , Module Thermal Testing Machine

Product Description

HD-E918

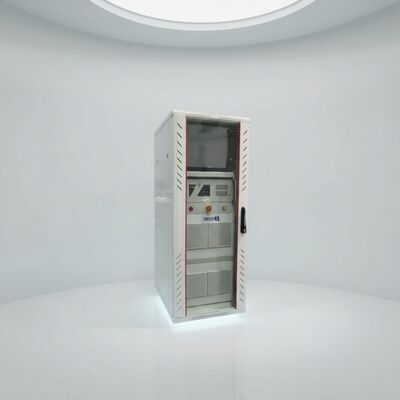

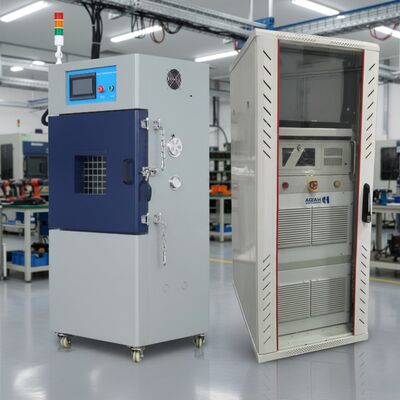

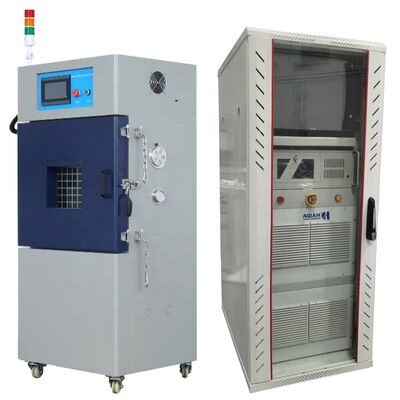

Bypass Diode Thermal Test Machine

Bypass Diode Thermal Test Machine mainly used to detect the protective performance and heat generation of bypass diodes in photovoltaic modules under hotspot effects.

Specification

PART1 : BYPASS DIODE TEST PARAMETERS
Item	Specification
Pulse Power Supply	20μs~999s(adjustable)
Current Range	0-60A; Deviation ±2%
Voltage Range	0-5V; Deviation ±2%
DC Power Supply	Current Range 0-60A; Deviation ±1%
Voltage Range	0-20V; Deviation ±1%
Temperature Acquisition Channel Accuracy	≤1℃
Voltage Acquisition Accuracy	≤0.2V
Data Acquisition and Analysis System	A . Includes temperature and voltage acquisition channels; B. Software automatically fits curves based on the relationship between temperature and voltage
Functional Test	Diode I-V curve <1s
Thermal Runaway Test	Forward current → Reverse voltage ≤10ms
Power	Single phase, 220V, 50Hz

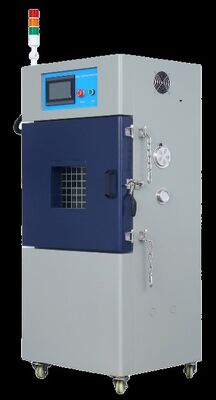

PART 2 : THERMAL OVEN PARAMETERS
Item	Specification
Internal dimension	400400400mm(WDH)
External dimension	7606901720mm(WDH)
Temperature range	RT~200C
Temperature display accuracy	0.1 C
Temperature stability	± 1.0 C
Temperature uniformity	± 2 C
Temperature rise time	5 C/ min in average
Controller	Touch screen control
Inner chamber material	stainless steel plate
External chamber material	Cold rolled steel plate baking varnish treatment
Observation window	250*250mm
Lighting device	Machine is equipped with internal lighting, easy to observe the state of the sample being tested;
Box door	Single door left open, box door side is equipped with explosion-proof chain
Test holes	The right side of the device has 2 test holes with a diameter of 50mm, easy to put in the temperature, voltage, current, and other collection lines;
Insulation material	High efficiency compressed glass wool;
Insulation device	No fuse switch, over-temperature protection switch, fuse;
Safety devices	Equipped with over-temperature alarm;
Air circulation system	Convection air circulation system
Pressure relief port	Opening size 200*200mm, located on the back side of the box, when the specimen explodes, the pressure relief port pops open to unload the pressure
Power	Single phase 220V, 50Hz
Weight	Approx. 170kg
TEST STANDARD
Items	Description
Test Standard	IEC61215-2: 2021 MQT 8 Bypass Diode Testing IEC 62979:2017 Photovoltaic modules – Bypass diode-Thermal runaway test IEC 63126:2020 Guidelines for qualifying PV modules, components and materials for operation at high temperatures
