Climate Temperature Test Equipment PV Cyclic Salt Spray Room Salt Spray Aging Testing Chamber Machine

Large Image : Climate Temperature Test Equipment PV Cyclic Salt Spray Room Salt Spray Aging Testing Chamber Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HAIDA

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Climate Temperature Test Equipment PV Cyclic Salt Spray Room Salt Spray Aging Testing Chamber Machine

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	±3%RH	Application:	Photovoltaic Testing
Customized Support:	OEM, ODM	Power:	380V±10%, 50/60Hz
Protection Class:	/	Voltage:	380 V
Warranty:	1 Year	Lab Volume:	4540L(Not Include Top Sloping Roof Capacity)
Suitable For Sample:	2400*1200mm PV Module With 2 Pieces	Saturated Tank Temperature:	Ambient ~60℃
Chamber Temperature:	Ambient ~60℃ (No Humidity If Temp. Below +25℃)	Chamber Temperature Fluctuation:	±2℃
Chamber Temperature Uniformity:	±0.5℃	Humidity Range:	30% ~ 98%
Temperature Fluctuation:	±3%RH	Test Type:	NSS,ASS,CASS
Power Supply Source:	Three-phase, 380V±10%, 50/60Hz
Highlight:	Aging Testing Chamber Machine , cyclic salt spray machine , Salt Spray Room Testing Chamber

Product Description

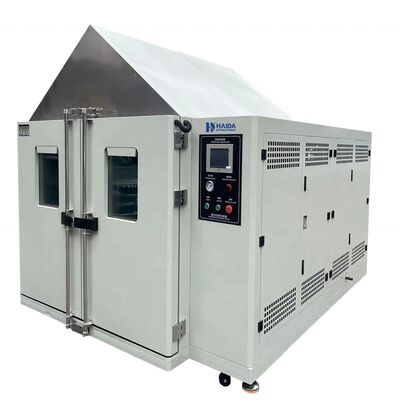

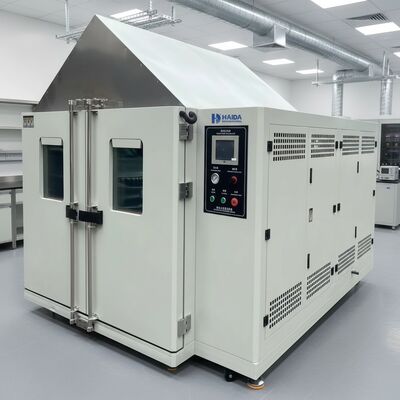

HD-E808-4C Cyclic Salt Spray Room

PRODUCT FEATURES 1, Double layers sample placing design to improve the usable area of internal chamber. 2, Adopt high precision temperature and humidity controller for temperature, humidity and drying tests. 3, Two poles air inlet decompression to ensure stable spray pressure. 4, Spray tower has conical disperser to lead and adjust the uniformity and dripping volume of salt fog. 5, Perfect safety protection device with audio alarm and auto stop function. 6, Have saturate process for spray compressed air to ensure stable test environment and prevent nozzles from block. 7, With time controller for auto power off when setting time arrive.

PLC Controller

Specification

Model	HD-E808-4C

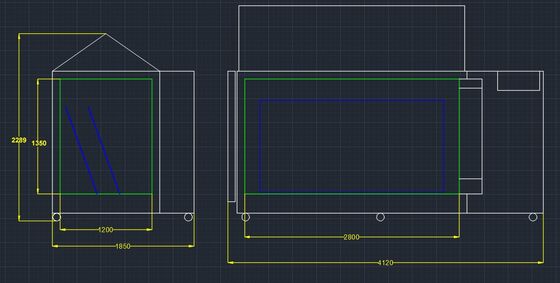

Internal size (LWH)	120028001350m
External size (LWH)	185041202289mm
Lab volume	4540L(Not include top sloping roof capacity)
Suitable for sample	2400*1200mm PV module with 2 pieces
Saturated Tank Temperature	Ambient ~60℃
Chamber Temperature	Ambient ~60℃ (No humidity if temp. below +25℃)
Chamber Temperature fluctuation	±2℃
Chamber Temperature Uniformity	±0.5℃
Humidity range	30% ~ 98%
Temperature fluctuation	±3%RH
Salt spray test	Concentration of salt solution: 5% Spray quantity: 1.0~2.0 ml / hr / 80cm2 PH value: 6.5~7.2 (at ambient temperature)
Spraying method	Continuous and Periodic spray type
Multiple safety protection devices	Over pressure protection, over temperature protection, over load fuse protection
Air source	2.5HP Air pump, pump capacity with 60L or above (provided by buyer)
Power supply source	Three-phase, 380V±10%, 50/60Hz
Test Type	NSS,ASS,CASS
Test Standard	IEC 61701:2020(according IEC 60068-2-52:2027) ASTM G85; ASTM B117; Test Standard ASTM G85
Item	Specification
Internal chamber	High temperature resistant 8mm PVC, anti-corrosion and easy to clean
Chamber cover	High temperature resistant 8mm PVC, anti-corrosion and easy to clean
Saturated barrel	High temperature and corrosion resistance, equipped with water level indicating device
Heating system	Titanium electric heater, corrosion resistance
Blower	Multi-blade blower
Water pump	Corrosion resistant pump
Solenoid valve	JPA series

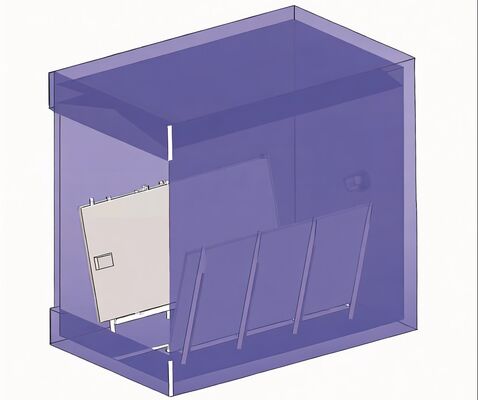

Sample shelves	Test Angle: 15° ~ 30°, adjustable
Viewing window	Double vacuum organic glass
Controller	PLC controller, touch screen
Water supply	Adopts automatic water charging system for long time operation.

Sodium chloride (testing salt)

Measuring tank

Spray Nozzle

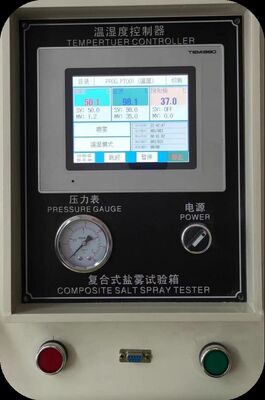

Controller
