Climate Test Equipment PV Hail Impact Testing Machine Equipment Photovoltaic Module Hail Impact Tester Hail Shock Test Chamber

Large Image : Climate Test Equipment PV Hail Impact Testing Machine Equipment Photovoltaic Module Hail Impact Tester Hail Shock Test Chamber

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HAIDA

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Climate Test Equipment PV Hail Impact Testing Machine Equipment Photovoltaic Module Hail Impact Tester Hail Shock Test Chamber

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	≤1mm	Application:	Hail Impact Testing, Shock Testing, Photovoltaic Testing
Customized Support:	OEM, ODM	Power:	AC380V / 50 HZ, Approx. 5 KW
Protection Class:	/	Voltage:	380 V
Warranty:	1 Year	Suitable For Sample Size:	2.4*1.2m
X Shaft Move Distance:	Approx. 2.4m	Y Shaft Move Distance:	Approx. 1.2m
Locating Accurate:	≤1mm	Impact Area:	2.4*1.2m (suitable For Different Solar Panel Size In The Range)
Locating Control:	PC Control And Automatic Locating	Machine Material:	Aluminum Profile Structure
Test Standard:	IEC61215-2:2021 MQT 17 Hail Test
Highlight:	Photovoltaic Module Hail Impact Tester , Hail Shock Test Chamber , Climate Test Equipment

Product Description

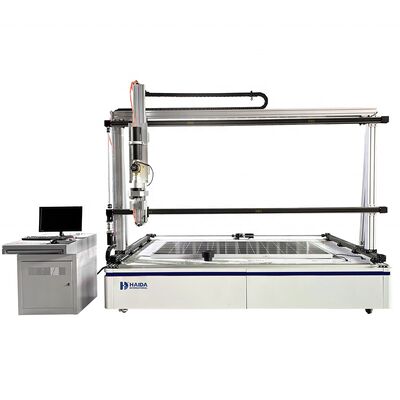

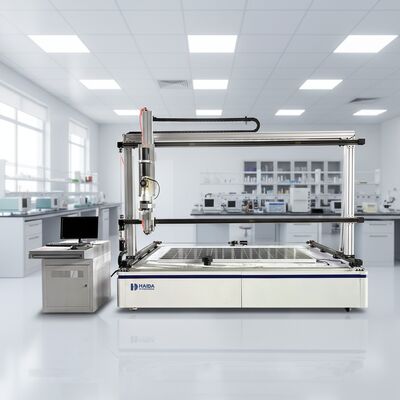

HD-E960

Hail Impact Test Machine

This machine is verify that the PV module is capable of withstanding the impact of hailstones.

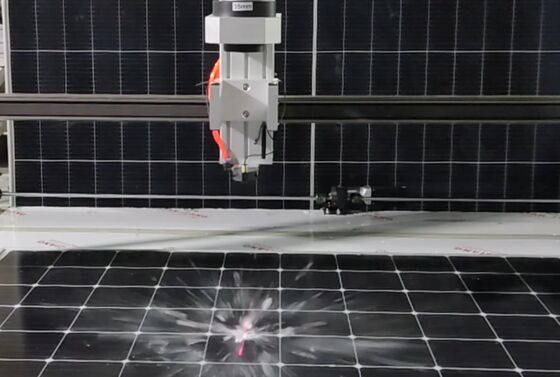

Test Image

Ice Ball Picture

Specification

Items	Description
Suitable for sample size	2.4*1.2m
X shaft move distance	Approx. 2.4m
Y shaft move distance	Approx. 1.2m
Locating accurate	≤1mm
Impact area	2.4*1.2m (suitable for different solar panel size in the range)
Locating control	PC control and automatic locating
Testing velocity system and theory	A. Ice ball through the infrared test velocity sensor, meanwhile catch Infrared by breaking time T, according to the V=S/T calculation ice ball flight velocity; B. Infrared test speed sensor accurate:±5%; C. The speed catch range:0-50m/s;

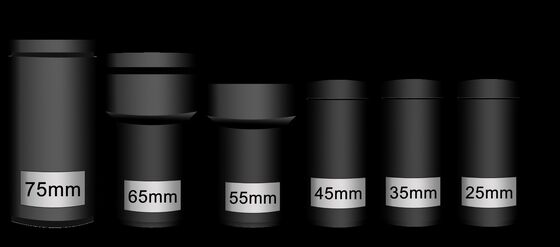

Ice ball mould specifications	A.One mould with 6 ice ball and each ice ball size with 2 sets mould (25mm, 35mm, 45mm ice ball) B.One mould with 4 ice ball and each ice ball size with 3 sets mould (55mm, 65mm, 75mm ice ball) C.The Mould material:Special materials and the ice ball easy take off from the mould D.The Mould process : CNC processing
System software	Software with Chinese and English Software display the impact point, impact speed, ice ball diameter etc; The testing data can save, inquiry and print; Testing data export is World , Excel, PDF, JPG etc format;
Machine material	Aluminum profile structure
Launch device	a.Power source is air compressor; b.Air pressure :6-8bar; c.Ice Ball Single filled by Manual; d.The Barrel length approx 940mm; e.The barrel can change; f.The guide ways is high quality import guide rail; g.Driving ways adopt import servo motor+synchronous wheel;
Test standard	IEC61215-2:2021 MQT 17 Hail Test

Ice Ball Diameter, Mass and Speed

Diameter(mm)	Mass (g)	Speed (m/s)	Diameter(mm)	Mass (g)	Speed (m/s)
25	7.53<5%	23.0±5%	35	20.7<5%	27.2±5%
45	43.9<5%	30.7±5%	55	80.2<5%	33.9±5%
65	132.0<5%	36.7±5%	75	203.0<5%	39.5±5%
