HAST High Pressure Accelerated Aging Testing Chamber Corrosion Resistance and Aging Tester Equipment Air Tightness Test Machine

Large Image : HAST High Pressure Accelerated Aging Testing Chamber Corrosion Resistance and Aging Tester Equipment Air Tightness Test Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HAIDA

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

HAST High Pressure Accelerated Aging Testing Chamber Corrosion Resistance and Aging Tester Equipment Air Tightness Test Machine

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	/	Application:	Aging Testing, Corrosion Testing, Air Tightness Testing
Customized Support:	OEM, ODM	Power:	220V 50/60Hz
Protection Class:	/	Voltage:	220 V
Warranty:	1 Year	Temperature Range:	+105C~147C (Vapor Temperature)
Temperature Fluctuations:	±2C	Humidity Range:	75%~100% (vapor Humidity)
Humidity Control Stability:	±3%RH	Humidity Distribution Average:	±5%RH
Operating Pressure:	1.2~2.89kg(including L Atm)	Time Setting Range:	0~999hours
Pressurization Time:	From 0.00kg~1.04kg/cm2,approx.45min	Controller Model:	PLC Control
Internal Dimension:	Diameter 400*L500mm; Circular Type Chamber
Highlight:	HAST Aging Tester Equipment , HAST Aging Testing Chamber

Product Description

HD-E819

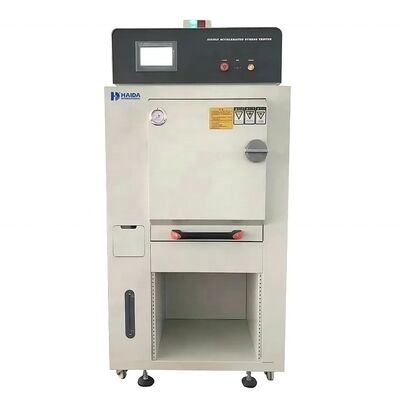

HAST High Pressure Accelerated Aging Testing Chamber

This product is suitable for national defense, aerospace, automotive parts, electronic parts, circuit boards, lighting products and other products of the sealing performance. in product design stage, using quickly expose the defects and weaknesses of the products. test the resistance to nastiness and air tightness of the products.

Feature

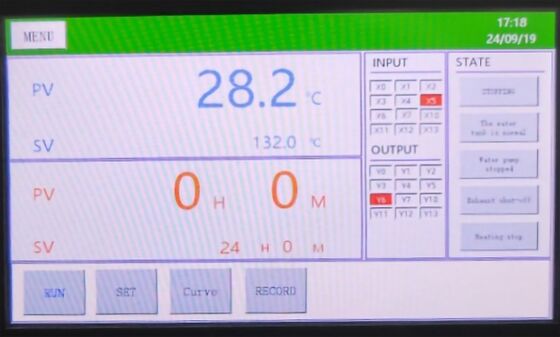

1. Adopt imported high-temperature solenoid valve double-way structure to reduce the failure rate of use. 2. Independent steam generation chamber to avoid direct impact of steam on product, resulting in local damage to the product. 3. The labor-saving structure of the door lock solves the shortcomings of the difficult locking of the disc handle of the product. 4. Exhaust cold air before the test; The design of the exhaust cold air in the test (air discharge in the test barrel) improves the pressure stability. 5. Ultra-long experimental operation time, 1000 hours of long-term experimental machine operation. 6. Water level protection, through the water level sensor in the test room to detect the protection. 7. The pressure resistance design of the water tank, the pressure resistance of the box body (140°C) is 2.65kg, and the water pressure test is 6kg. 8. Two-stage pressure safety protection device, using two-stage combination controller and mechanical pressure protection device. 9. Safety protection pressure discharge button, emergency safety device two-stage automatic pressure discharge button 10. Full touch controller, support U disk export history

Specification

Items	Description
Internal dimension	Diameter 400*L500mm; Circular type chamber
External dimension	Approx. 11509801850mm(WDH)
Internal material	SUS# 316 with thickness 3 mm
External material	Stainless steel plate material
Insulation material	Rock wool and rigid polyurethane foam insulation
Steam chamber heating tube	Titanium tube heating, never rust
Controller model	PLC control

Temperature range	+105C~147C (Vapor temperature)
Temperature fluctuations	±2C
Humidity range	75%~100% (vapor humidity)
Humidity control stability	±3%RH
Humidity distribution average	±5%RH
Operating Pressure	1.2~2.89kg(including l atm)
Time setting range	0~999hours
Pressurization time	From 0.00kg~1.04kg/cm2,approx.45min
Power supply	Single phase 220V 50/60Hz
Safety protection	a. Imported high-temperature resistant sealed solenoid valve, using a dual circuit structure to ensure that the pressure is not leaking. b. The whole machine is equipped with overpressure protection, over-temperature protection, one key pressure relief, manual pressure relief multiple safety devices, to ensure the use and safety of users to the maximum extent. c. Counter-pressure door locking device, when there is pressure inside the test chamber, the door of the test chamber can not be opened.

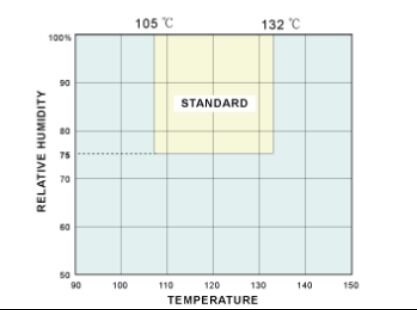

Temp. & Vapor Humid.

Company Profile

Our Partners

Our Advantages

Our Service

* If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days.
* We can offer operation video and English operation muanual.
* We can provide video-con.

Onsite Service:
* Device installation;
* Equipment Operation Test Technology training;
* Equipment Calibration;
* Daily maintenance and maintenance of equipment
* Free technical training for visiting factories
* 24-hour Online contact
* Free software upgrades
* Free information:
* Product Instruction;
* Product operation instruction/video;
* Experiment Test (test application, test report)

Device Problem Handling:
* Social media 24 hours online communication;
* Mail Seamless Docking;
* Video Conferencing;
* Artificial free door-to-door service
