UV Pre-Conditioning Testing Chamber Solar Panel Ultraviolet Damage Sensitivity Testing Equipment Machine UV Pretreatment Tester

Large Image : UV Pre-Conditioning Testing Chamber Solar Panel Ultraviolet Damage Sensitivity Testing Equipment Machine UV Pretreatment Tester

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HAIDA

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

UV Pre-Conditioning Testing Chamber Solar Panel Ultraviolet Damage Sensitivity Testing Equipment Machine UV Pretreatment Tester

Description

Type:	Testing Machine	Accuracy Class:	Standard Accuracy
Accuracy:	Within ±15%	Application:	UV Testing, Sensitivity Testing
Customized Support:	OEM, ODM	Power:	AC380V / 50 HZ, Approx. 5 KW
Protection Class:	/	Voltage:	380 V
Warranty:	1 Year	Irradiance Non-uniformity:	Within ±15%
Measurement Uncertainty:	Within ±15%	Irradiance Ratio:	280~400nm, 3~10% Within The 280nm ~ 320nm Wavelength Range
Internal Chamber Material:	Imported Fully Reflective Silver-coated Aluminum Plate	External Chamber Material:	Aluminum Profile Frame
Cooling Method:	Air Cooling	Control System:	PLC + Touch Screen
Effective Irradiation Area:	900 * 900 Mm (Can Accommodate 9 Pieces Of 300*300 Mm Samples)	External Dimension:	Approx.162011202000mm(LWH)
Power Supply:	AC380V / 50 HZ, Approx. 5 KW
Highlight:	Damage Sensitivity Testing Equipment , Pre-Conditioning Testing Chamber , Solar Panel Pretreatment Tester

Product Description

HD-E802-3

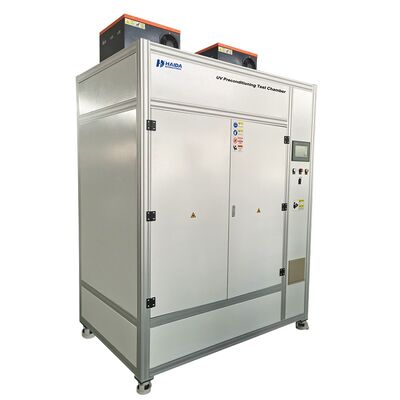

UV Pre-Conditioning Testing Chamber

UV preconditioning test is an irradiance test that determines how susceptible solar panels are to UV deterioration and, as a result, performance loss. This high condition test is frequently performed before the thermal cycle and humidity freeze tests during solar panel certification and research.

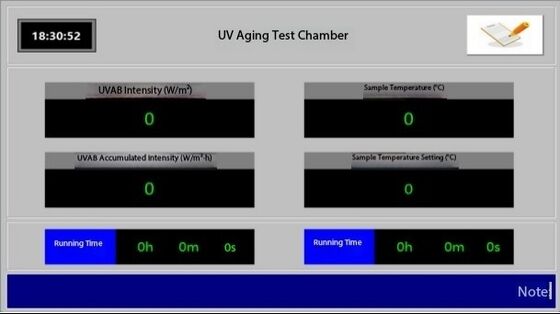

Main Interface

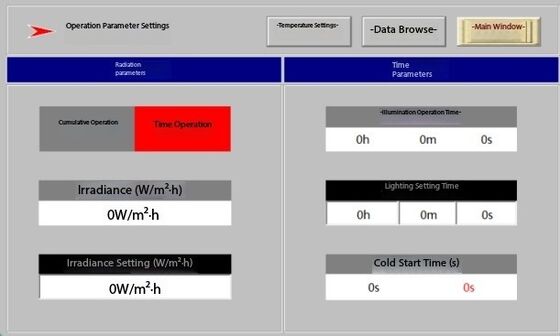

Parameter Settings

Specification

Item	Specification
Effective Irradiation Area	900 * 900 mm (Can accommodate 9 pieces of 300*300 mm samples)
External dimension	Approx.162011202000mm(LWH)
Irradiance Non-uniformity	Within ±15%
Measurement Uncertainty	Within ±15%
Irradiance Ratio	280~400nm, 3~10% within the 280nm ~ 320nm wavelength range
Internal Chamber Material	Imported fully reflective silver-coated aluminum plate
External Chamber Material	Aluminum profile frame
Cooling Method	Air Cooling
Control System	PLC + Touch Screen
Power Supply	AC380V / 50 HZ, Approx. 5 KW
Software Functions	• Real-time monitoring of UV intensity, component temperature, etc. • System automatically collects and stores data; can export to Excel. • Display on monitoring screen: Temperature parameters, UV Intensity, Accumulated UV Dose, Running Time, Operation Mode, etc. • Specific Display Items: - Ambient Temperature: Temperature inside the chamber. - Component A Temperature: Temperature at point A of the component. - Component B Temperature: Temperature at point B of the component. - UV Accumulated Dose AB: The total accumulated irradiation dose.

Test Requirements

Test Procedures

TEST STANDARD

IEC 61215-2:2021 MQT 10 UV Preconditioning Test

Company Profile

Our Partners

Our Advantages

Our Service

* If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days.
* We can offer operation video and English operation muanual.
* We can provide video-con.

Onsite Service:
* Device installation;
* Equipment Operation Test Technology training;
* Equipment Calibration;
* Daily maintenance and maintenance of equipment
* Free technical training for visiting factories
* 24-hour Online contact
* Free software upgrades
* Free information:
* Product Instruction;
* Product operation instruction/video;
* Experiment Test (test application, test report)

Device Problem Handling:
* Social media 24 hours online communication;
* Mail Seamless Docking;
* Video Conferencing;
* Artificial free door-to-door service
