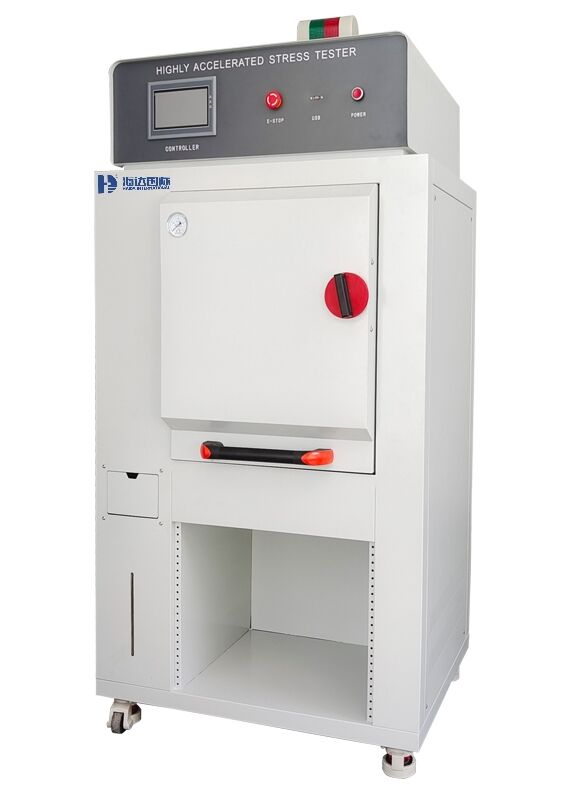

HD-E810-HAST Highly Accelerated Stress Test Chamber

Large Image : HD-E810-HAST Highly Accelerated Stress Test Chamber

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE,,ISO
Model Number:	HD-E810

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time:	20 days after order confirmed
Payment Terms:	L/C,T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability:	300 Sets per Month

Contact Now

HD-E810-HAST Highly Accelerated Stress Test Chamber

Description

High Temp. Exposure Range*1:	+60~ To +200°C	Low Temp. Exposure Range*1:	-65to 0 °C
Temp. Fluctuation *2:	±1.8°C	Pre-heat Upper Limit:	+200°C
Pre-cool Lower Limit:	-65°C	Temp. Pull Down Time*3:	Ambient Temp. To -65°C Within 70min
Damper Driving Unit:	Air Cylinder	Allowable Ambient Conditions:	+5~30°C
Power Supply:	AC380V, 50/60Hz, Three Phase , 30A	Cooling Water Supply Pressure*6:	02~0.4Mpa
Cooling Water Supply Rate*6:	8m³ /h	Use:	Thermal Shock Testing Chambers
Highlight:	HD-E810 HAST test chamber , Highly Accelerated Stress Test Chamber , Environmental test chamber with warranty

HD-E810-HAST Highly Accelerated Stress Test Chamber

Machine introduction

HAST, or High Accelerated Stress Test, is a test method that accelerates product ageing by subjecting samples to high temperatures, high humidity, and high pressure. It is widely used in industries such as PCBs, IC semiconductors, connectors, circuit boards, magnetic materials, polymer materials, EVA, and photovoltaic components to conduct accelerated ageing life tests on related products. This test is used to evaluate product sealing, moisture absorption, and ageing performance.

Basic Information
Name	Highly Accelerated Stress Test Chamber
Sample limitation	This test equipment prohibits: Testing or storage of samples of flammable, explosive and volatile substances. Testing or storage of samples of corrosive substances. Testing or storage of samples from strong electromagnetic emission sources.
Inner dimension	Φ400×D 500 (mm)
Outer dimension	About 1050x 980 x 1850 mm (W * D * H) Subject to the final drawing
Performance
Environmental conditions	Temperature of +25℃, Relative humidity ≤ 85%RH, and without load
Test Method	GB/T 5170.2-1996
Temp. Range	+105 ℃ ～ +147 ℃ (vapor temperature ).
Temp. Fluctuation	±0.5℃.
Temp. Uniformity	±2℃；.
Humidity Range	75% ～ 100 %RH
Humidity Display	±0.5%RH.
Humidity Control Stability	±3.0% RH.
Pressure Range	1.2~2.89Kg / cm² (included 1atm)(Pressure inside)
Uniformity of pressure fluctuation	±0.1Kg
Heating Rate	Ambient→ + 147℃ About 55 min.
Pressure Rising Time	0.00 Kg ～ 1.04 Kg / cm² About 45 min；
Condition of loading	Magnetic materials
Bias terminal	The bias voltage test terminal can withstand a voltage of up to 3000V(optional function). Please specify when ordering
Meet Standard	IEC60068-2-66; JESD22-A102-C; JESD22-A110-B;JESD22-A118; GB/T 2423.40
Structure
Insulation structure	Outer wall material: SUS#304 stainless steel plate or high-grade steel plate with plastic coating. Inner wall material: Stainless steel plate SUS# 316 3mm. The insulation material for the chamber body: rock wool and rigid polyurethane foam insulation.

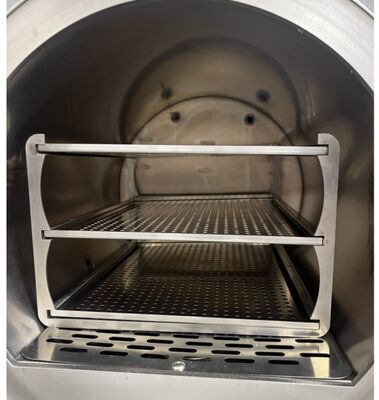

Chamber structure	The circular inner box, with a stainless steel circular test inner box structure, complies with industrial safety container standards and is designed to prevent condensation and dripping during tests. Round liner, stainless steel round liner design, independent steam generation chamber to prevent direct steam impact on the product and avoid local damage to the product. Precise design, good air tightness, low water consumption, and continuous operation for 400 hours with each water addition.
Air conditioning	Heaters, humidifiers, water supply and drainage outlets, temperature and humidity sensors, pressure sensors
Controller
Main Interface	The humidity and steam temperature are controlled by a Mitsubishi customized color touch PLC
Setting interface	It adopts the original imported 7-inch microcomputer color LCD touch screen direct key type, with a wide viewing Angle and high contrast function process controller in both Chinese and English, and is equipped with multiple PID control functions.
Controller Software	7 "TFT true-color LCD touch screen, direct touch option on the screen. The set (SV) and actual (PV) values are displayed directly. The remaining time of the current execution can be displayed. Run the cumulative time function. The set values are displayed in the form of graphical curves and have the function of real-time display of program curve execution. It features a separate editing interface, allowing for the input of temperature, humidity, pressure and test time. Chinese and English can be switched freely. The fault prompt screen is displayed; The screen can be adjusted for backlighting. The screen display protection function can be set for timing, TIMER or manual off.
Optional
Centralized Monitoring software (Optional Function)	It is used for remote centralized monitoring (the operation status of this machine can be monitored through a local area network or directly connected to a computer via the machine, and the machine can be remotely controlled), and one RS-485/RS-232 converter is provided along with the software (centralized monitoring software)
Condition for Machine	The user guarantees the following conditions.
Installation Site	The ground is flat and well-ventilated. There is no strong vibration around the equipment. There is no strong electromagnetic field influence around the equipment. There are no flammable, explosive, corrosive substances or dust around the equipment. There should be appropriate space for use and maintenance around the equipment.
Environment	The operation should be carried out in a well-ventilated environment. Temperature: 5℃ to 30℃ Relative humidity: ≤85% Air pressure: 86kPa to 106kPa.
Power condition	AC220V, power fluctuation shall not exceed ±10%, 50/60Hz It is required that the user configure the corresponding capacity air or power switch for the equipment at the installation site, and this switch must be independently used for this equipment.
Requirements for storage environment	When the equipment is not in operation, the ambient temperature should be maintained within 0℃ to +45℃. When the ambient temperature is below 0℃, the remaining water in the equipment should be drained completely to prevent the water in the pipes from freezing and damaging the pipes.

Packaging & Shipping

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.

Our Services

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.

HD-E810-HAST Highly Accelerated Stress Test Chamber 3

1. Pre-service

24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise.

2. Middle service

Give you best offer
Provide discount for many sets order
Do customer's request:
Choose payment term you convienent.
Promptly production and delivery,inform you in time.
Can provide invoice value as you like to decrease your tax.

3. After sale service

1 year warranty service and all life maintenance.
Technical Egineer are avalible for oversea trainning.
Free change for some parts
Remote control technical consult
Free installation DVD
Maintenance plan

4,Commitment:

We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.

5,Good Packaging:

Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
