Haida International Equipment CO.,LTD
 |
| Place of Origin: | China |
| Brand Name: | Haida |
| Certification: | CE,,ISO |
| Model Number: | HD-E710 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | each set protected with resin fiber and PP film, then put into Strong wooden case with operation man |
| Delivery Time: | 20 days after order confirmed |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 300 Sets per Month |
| Usage: | Water Drip Test Chamber | Inner Chamber Size(W*D*H): | 1000*1000*1000mm |
|---|---|---|---|
| Internal Chamber Size(W*D*H): | 1200*1400*2100mm | Air Pressure: | 86~106kpa |
| Sample Turntable: | Diameter 500mm | Turntable Rotation Speed: | 1~10r/min, Height Can Be Adjusted |
| Water Drop Speed: | 1 Or 3mm/min, Can Be Adjusted | Drip Box Size: | 400*400mm |
| Distance From Drip Box To Specimen Surface: | 200mm | Water Drop Hole Diameter: | 0.4mm |
| Distance From Water Drop Hole: | 20mm | Test Duration: | 1~999,999min, Adjustable |
| Safety Protection Device: | Leakage, Short Circuit, Motor Over Temperature… | ||
| High Light: | ip testing equipment,ingress protection testing |
||
IPX1 / IPX2 Water Drip Test Chamber IP Testing Equipment with Transparent Window
GENERL SPECIFICATIONS
Packaging Dimensions: (WxDxH) 1400*1600*2300mm
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Gross Weight: 300kg
HS Code: 8424899990
STANDARD FEATURES
| Item | Specification |
| Inner Chamber size(W*D*H) | 1000*1000*1000mm |
| Internal Chamber size(W*D*H) | 1200*1400*2100mm |
| Chamber material | Stainless steel #304, Waterproof Toughened glass observation window |
| Sample turntable | Diameter 500mm |
| Turntable rotation speed | 1~10r/min, height can be adjusted |
| Water drop speed | 1 or 3mm/min, can be adjusted |
| Drip box size | 400*400mm |
| Distance from drip box to specimen surface | 200mm |
| Water drop hole diameter | 0.4mm |
| Distance from water drop hole | 20mm |
| Test duration | 1~999,999min, adjustable |
| Turntable angle for IPX2 | 15° inclined on either side of the vertical in two mutually perpendicular planes |
| Safety protection device | Leakage, short circuit, motor over temperature… |

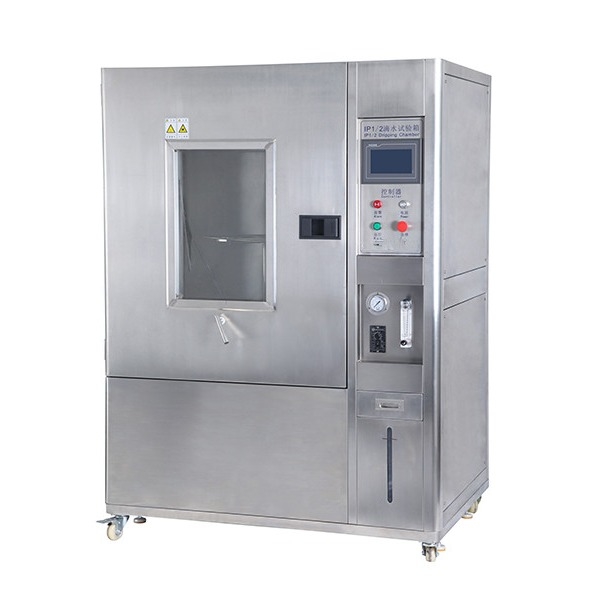

IPX1 / IPX2 Water Drip Test Chamber view:
