Product Details:
|
| Usage: | Universal Material Waterproof / Water Spray / Rain Spray Test Chamber | Rotating Speed: | Adjustable |
|---|---|---|---|
| Arm Radius: | 300mm, 400mm, 600mm, 800mm, 1000mm, 1200mm Or 1500mm | Rotating Angle: | +/-270, Adjustable |
| Rotating Table: | Speed Is Adjustable | Flow Rate: | 0.07L/min (IPX3,4), 0.6+/-0.5L/min (IPX4K) |
| Nozzle Distance: | 50mm | Nozzle Diameter: | 0.4mm |
| Power: | 1 Phase, 220V, 5KW | Weight: | Approx.350kg |
| Specimen Rotative Speed: | 1-3r/min (Adjustable) | ||
| High Light: | ingress protection test equipment,ingress protection testing |
||

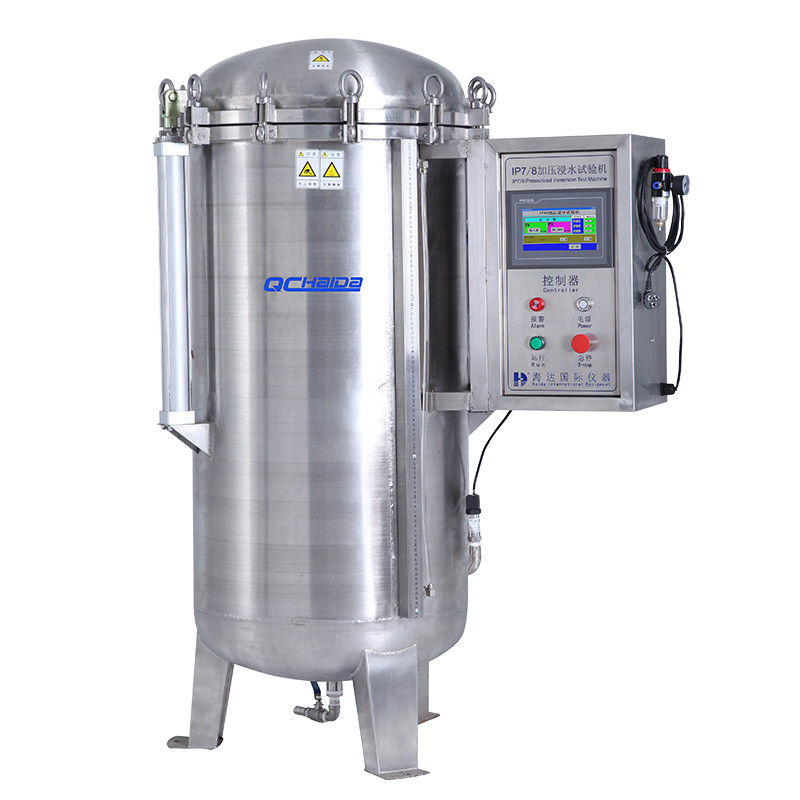

Environmental IPX7 / 8 Water Soaking Test Equipment With Rotating Spray Nozzles
GENERL SPECIFICATIONS
Packaging Dimensions: (W*D*H) 1700*1380*2100mm
Power supply source: three-phase, 380V±10%, 50/60Hz (can be appointed)
Gross Weight: 400kg
STANDARD FEATURES
| Item | Specification |
| Internal dimension | Diameter 1000* height 1000mm |
| Chamber material | SUS#304, thickness 2mm |
| Water depth | Simulate 50m depth by air compressor |
| Water pressure | Ambient to 0.5MPa, pressure gauge accuracy 0.25 degree |
| Timer | 0 ~ 99min, 99sec |
| Sample lift device | Portable stainless steel basket |
| Water level display | Water pipe with scale |
| Protection device | Pressure protection and anti-explosive device, water drain and pressure release device |
| Safety protection | Power overload protection, short circuit protection, grounding protection, alarm display |
FEATURES:
1. Flexible positioning and electric trolley. It is easy to fix and achieve the changeable value of speed.
2. The height of trolley is relatively low so that is easy to fix the specimen; the strong impact resistance board can guarantee the fastness of the structure.
3. The trolley can be adjusted to be horizontal in order to fix the specimen for customer. The angle adjustment is driven by air cylinder which is flexible and convenient.
4. In order to keep the test staff completely safe, the tester is with remote control function.
5. Before testing, the customer only needs to fix the tester on the ground when stalling it, no other complicated operation.
AFTER-SERVICE:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
FAQ
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
IPX1 - IPX8 Rain Test Chamber.
