Product Details:
|
| Usage: | Sand And Dust Testing Chamber | External Size: | 170 * 150 * 190cm (approx.) |
|---|---|---|---|
| Inner Chamber Size: | 120 * 120 * 120cm | Air Pressure: | 86~106kpa |
| Studio Temperature: | RT~60'C, Adjustable | Powder Type: | Talcum Powder |
| Aspirator Flowing Quantity: | 0~6L/min | Pressure Tolerance: | 0~2kpa |
| Testing Time: | 0~999h88m99s, Adjustable | Blower: | Centrifugal Fan |
| Blowing Dust Cycle: | Interval Control, Adjustable | Door Material: | Tempering Glass |
| Control Interface: | LCD Touch Screen | Weight: | 400kg |
| Power Supply: | AC380V, 50/60Hz, Three Phase | Chamber Material: | SUS#304 Stainless Steel |
| High Light: | ip testing equipment,ingress protection testing |
||
Simulation Dust Ingress Protection Test Equipment Environmental Test Chamber
Haida IPX1 - IPX8 Rain Test Chamber.pdf
Product Description:
The Environmental Simulation Sand and Dust Resistance Testing Chamber is designed for sealing performance test and reliability test, widely used in electrical, electronics, automobile, motorcycle, LED and other products. It is suitable for the work ability test on the shell sealing performance, product in dust free settlement, in the environment without apparent air flow or with a strong blast air and a large amount of sand dust, and similar conditions.
Main Technical Parameters of Simulation Sand and Dust Resistance Testing Chamber:
|
Item |
Specification |
|
Inner chamber size |
120 * 120 * 120cm |
|
External size |
170 * 150 * 190cm (approx.) |
|
Air pressure |
86~106kpa |
|
Studio temperature |
RT~60'C, adjustable |
|
Amount of talcum powder |
2kg per cubic meter of the test chamber volume Can not have been used for more than 20 tests |
|
Powder type |
Talcum powder |
|
Aspirator flowing quantity |
0~6L/min |
|
Pressure tolerance |
0~2kpa |
|
Metal net size |
Wire diameter 50um, width of a gap between wires 75um |
|
Testing time |
0~999h88m99s, adjustable |
|
Blower |
Centrifugal fan |
|
Blowing dust cycle |
Interval control, adjustable |
|
Chamber material |
SUS#304 stainless steel |
|
Door material |
Tempering glass |
|
Control interface |
LCD touch screen |
|
Vacuum system |
Pressure gauge, air filter, Pressure regulating FRL, connecting pipe, Vacuum pump |
|
Weight |
400kg |
|
Power supply |
AC380V, 50/60Hz, three phase |
Features of Environmental Simulation Sand and Dust Resistance Testing Chamber:
1. Formed using CNC machining box, nice shape, and no reaction by the handle, easy to operate.
2. Imported high grade stainless steel inner tank (SUS304) mirror panels, use of A3 steel box outside the gall spray, increasing the appearance of the texture and cleanliness.
3. Equipment containing dust vertical circulation of air, dust can be reused for testing; device itself has a good sealing performance, test, laboratory test can clearly observe the situation; device equipped with a vacuum system to meet the needs test; equipment dust the bottom of the device can be replaced.
4. Large observation window with bright lights to keep the box, and use of tempered glass embedded heating element, at any time a clear observation box condition.
5. Test with 50mm diameter holes for the external test power line or signal line.
Chamber Structure:
1, Chamber material: SUS#304 stainless steel;
2, Transparent window is convenient to observe specimen during testing;
3, Blow fan adopts stainless steel shell, high sealing and wing speed, low noise;
4, Inside the shell is the funnel type, vibration cycle can be adjusted, dust free float in the sky falling to blowing the hole together.

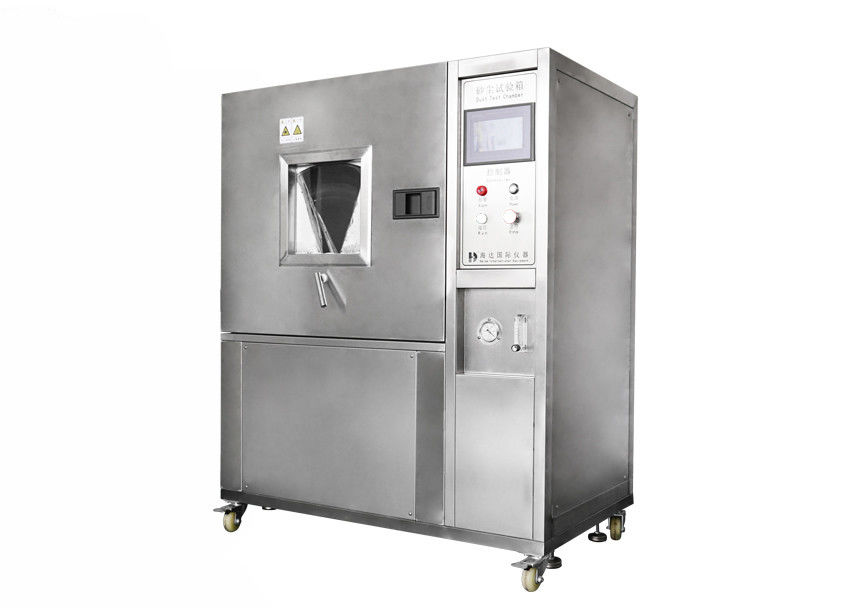

Environmental Simulation Sand and Dust Resistance Testing Chamber view:
