Professional Simulation Sand and Dust Resistance Testing Equipment

Professional Simulation Sand and Dust Resistance Testing Equipment

    • Professional Simulation Sand and Dust Resistance Testing Equipment
    • Professional Simulation Sand and Dust Resistance Testing Equipment
    • Professional Simulation Sand and Dust Resistance Testing Equipment
    • Professional Simulation Sand and Dust Resistance Testing Equipment
    • Professional Simulation Sand and Dust Resistance Testing Equipment
  • Professional Simulation Sand and Dust Resistance Testing Equipment

    Product Details:

    Place of Origin: China
    Brand Name: Haida
    Certification: CE,,ISO
    Model Number: HD-E706

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
    Delivery Time: 20 days after order confirmed
    Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 300 Sets per Month
    Contact Now
    Detailed Product Description
    Usage: Sand And Dust Testing Chamber External Size: 170 * 150 * 190cm (approx.)
    Inner Chamber Size: 120 * 120 * 120cm Air Pressure: 86~106kpa
    Studio Temperature: RT~60'C, Adjustable Powder Type: Talcum Powder
    Aspirator Flowing Quantity: 0~6L/min Pressure Tolerance: 0~2kpa
    Testing Time: 0~999h88m99s, Adjustable Blower: Centrifugal Fan
    Blowing Dust Cycle: Interval Control, Adjustable Door Material: Tempering Glass
    Control Interface: LCD Touch Screen Weight: 400kg
    Power Supply: AC380V, 50/60Hz, Three Phase Chamber Material: SUS#304 Stainless Steel
    High Light:

    ip testing equipment

    ,

    ingress protection testing

    Professional Simulation Sand and Dust Resistance Testing Equipment





    HD-E706 Dust Test Chamber - IP5X&6X.pdf



    Chamber Structure:



    1, Chamber material: SUS#304 stainless steel;

    2, Transparent window is convenient to observe specimen during testing;

    3, Blow fan adopts stainless steel shell, high sealing and wing speed, low noise;

    4, Inside the shell is the funnel type, vibration cycle can be adjusted, dust free float in the sky falling to blowing the hole together.





    Product Description:



    The Professional Simulation Sand and Dust Resistance Testing Equipment is designed for sealing performance test and reliability test, widely used in electrical, electronics,  automobile, motorcycle, LED and other products. It is suitable for the work ability test on the shell sealing performance, product in dust free settlement, in the environment without apparent air flow or with a strong blast air and a large amount of sand dust,  and similar conditions.







    Features of Professional Simulation Sand and Dust Resistance Testing Equipment:



    1. Formed using CNC machining box, nice shape, and no reaction by the handle, easy to operate.


    2. Imported high grade stainless steel inner tank (SUS304) mirror panels, use of A3 steel box outside the gall spray, increasing the appearance of the texture and cleanliness.


    3. Equipment containing dust vertical circulation of air, dust can be reused for testing; device itself has a good sealing performance, test, laboratory test can clearly observe the situation; device equipped with a vacuum system to meet the needs test; equipment dust the bottom of the device can be replaced.


    4. Large observation window with bright lights to keep the box, and use of tempered glass embedded heating element, at any time a clear observation box condition.


    5. Test with 50mm diameter holes for the external test power line or signal line.







    Main Technical Parameters of Sand and Dust Resistance Testing Equipment:



    Item

    Specification

    Inner chamber size

    120 * 120 * 120cm

    External size

    170 * 150 * 190cm (approx.)

    Air pressure

    86~106kpa

    Studio temperature

    RT~60'C, adjustable

    Amount of talcum powder

    2kg per cubic meter of the test chamber volume

    Can not have been used for more than 20 tests

    Powder type

    Talcum powder

    Aspirator flowing quantity

    0~6L/min

    Pressure tolerance

    0~2kpa

    Metal net size

    Wire diameter 50um, width of a gap between wires 75um

    Testing time

    0~999h88m99s, adjustable

    Blower

    Centrifugal fan

    Blowing dust cycle

    Interval control, adjustable

    Chamber material

    SUS#304 stainless steel

    Door material

    Tempering glass

    Control interface

    LCD touch screen

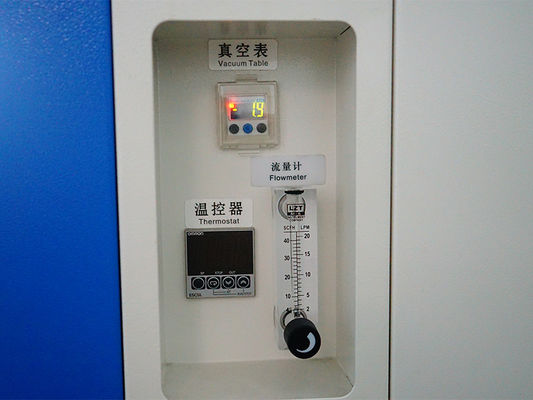

    Vacuum system

    Pressure gauge, air filter, Pressure regulating FRL, connecting pipe, Vacuum pump

    Weight

    400kg

    Power supply

    AC380V, 50/60Hz, three phase

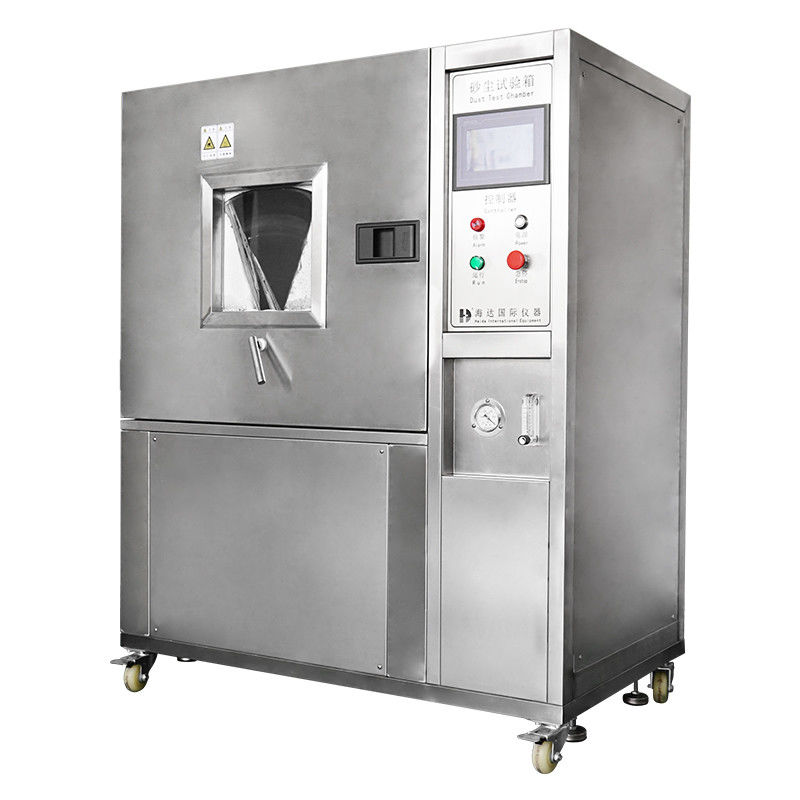

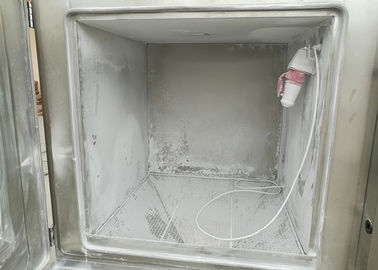

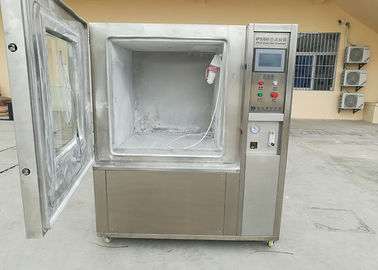

    Professional Simulation Sand and Dust Resistance Testing Equipment view:



                                          dust test chamber image



                                   Professional Simulation Sand and Dust Resistance Testing Equipment 1
