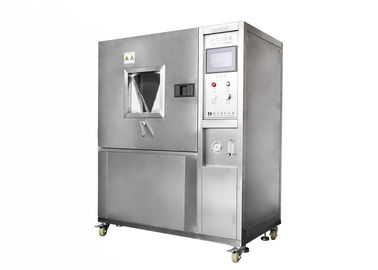

Microcomputer Controlled LED Light Sand and Dust Testing Device

Microcomputer Controlled LED Light Sand and Dust Testing Device
Microcomputer Controlled LED Light Sand and Dust Testing Device Microcomputer Controlled LED Light Sand and Dust Testing Device Microcomputer Controlled LED Light Sand and Dust Testing Device Microcomputer Controlled LED Light Sand and Dust Testing Device Microcomputer Controlled LED Light Sand and Dust Testing Device

Large Image :  Microcomputer Controlled LED Light Sand and Dust Testing Device

Product Details:
Place of Origin: China
Brand Name: Haida
Certification: CE,SGS,ISO
Model Number: HD-E706
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Strong Wooden Case
Delivery Time: 15 Days After Order
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 75 Piece / Pieces Per Month

Microcomputer Controlled LED Light Sand and Dust Testing Device

Description
Usage: Sand And Dust Testing Chamber External Size: 170 * 150 * 190cm (approx.)
Inner Chamber Size: 120 * 120 * 120cm Air Pressure: 86~106kpa
Studio Temperature: RT~60'C, Adjustable Powder Type: Talcum Powder
Aspirator Flowing Quantity: 0~6L/min Pressure Tolerance: 0~2kpa
Testing Time: 0~999h88m99s, Adjustable Blower: Centrifugal Fan
Blowing Dust Cycle: Interval Control, Adjustable Door Material: Tempering Glass
Control Interface: LCD Touch Screen Weight: 400kg
Power Supply: AC380V, 50/60Hz, Three Phase Chamber Material: SUS#304 Stainless Steel
High Light:

ingress protection test equipment

,

ingress protection testing

Microcomputer Controlled LED Light Sand and Dust Testing Device





HD-E706 Dust Test Chamber - IP5X&6X.pdf



Product Description:



The LED Light Sand and Dust Testing Device is designed according to GB4706,GB2423,GB7000.1,IEC60529,ect standards and meet the IPX5 and IPX6 dust test requirements. It is maily used for testing control cabinet, household appliances, low voltage electric appliance, automobile, lamps and lanterns, motorcycle parts,ect outer shells.  Test chamber pressure can be constant and changed, suitable for indoor low concentration dust pollution test, assessment  sample in this environment of sealing and corrosion degree.





Main Technical Parameters of LED Light Sand and Dust Testing Device:



Item

Specification

Inner chamber size

120 * 120 * 120cm

External size

170 * 150 * 190cm (approx.)

Air pressure

86~106kpa

Studio temperature

RT~60'C, adjustable

Amount of talcum powder

2kg per cubic meter of the test chamber volume

Can not have been used for more than 20 tests

Powder type

Talcum powder

Aspirator flowing quantity

0~6L/min

Pressure tolerance

0~2kpa

Metal net size

Wire diameter 50um, width of a gap between wires 75um

Testing time

0~999h88m99s, adjustable

Blower

Centrifugal fan

Blowing dust cycle

Interval control, adjustable

Chamber material

SUS#304 stainless steel

Door material

Tempering glass

Control interface

LCD touch screen

Vacuum system

Pressure gauge, air filter, Pressure regulating FRL, connecting pipe, Vacuum pump

Weight

400kg

Power supply

AC380V, 50/60Hz, three phase





Chamber Structure:



1, Chamber material: SUS#304 stainless steel;

2, Transparent window is convenient to observe specimen during testing;

3, Blow fan adopts stainless steel shell, high sealing and wing speed, low noise;

4, Inside the shell is the funnel type, vibration cycle can be adjusted, dust free float in the sky falling to blowing the hole together.





Features of Microcomputer Controlled LED Light Sand and Dust Testing Device:



1. Formed using CNC machining box, nice shape, and no reaction by the handle, easy to operate.


2. Imported high grade stainless steel inner tank (SUS304) mirror panels, use of A3 steel box outside the gall spray, increasing the appearance of the texture and cleanliness.


3. Equipment containing dust vertical circulation of air, dust can be reused for testing; device itself has a good sealing performance, test, laboratory test can clearly observe the situation; device equipped with a vacuum system to meet the needs test; equipment dust the bottom of the device can be replaced.


4. Large observation window with bright lights to keep the box, and use of tempered glass embedded heating element, at any time a clear observation box condition.


5. Test with 50mm diameter holes for the external test power line or signal line.

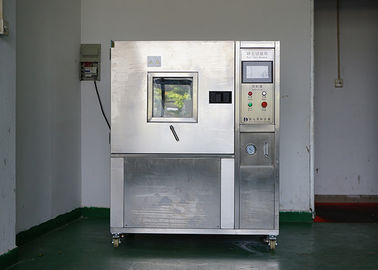

Microcomputer Controlled LED Light Sand and Dust Testing Device view:



dust test chamber image



                                       Microcomputer Controlled LED Light Sand and Dust Testing Device 1
