Product Details:
|
| Humiture Range: | 30-98%RH | Rainfall Cycle: | 1-240min |
|---|---|---|---|
| Certificate: | ISO9001: 2008 | Warranty Period: | 12 Months |
| Studio Size: | 95Dx95Wx90Hcm | Box Material: | Stainless Steel SUS304# |
| Insulation Materials: | Superfine Glass Fabric | Control System: | Germany KLOCKNER-MOELLER Progammable Controler |
| Gas Processing: | Dischager For Fector And Harmful Gas | Use Environment: | 5°C~+30°C, ≤85%R.H |
| Use: | Xenon Test Equipment | ||
| Highlight: | environmental test chamber,environmental lab testing equipment |
||

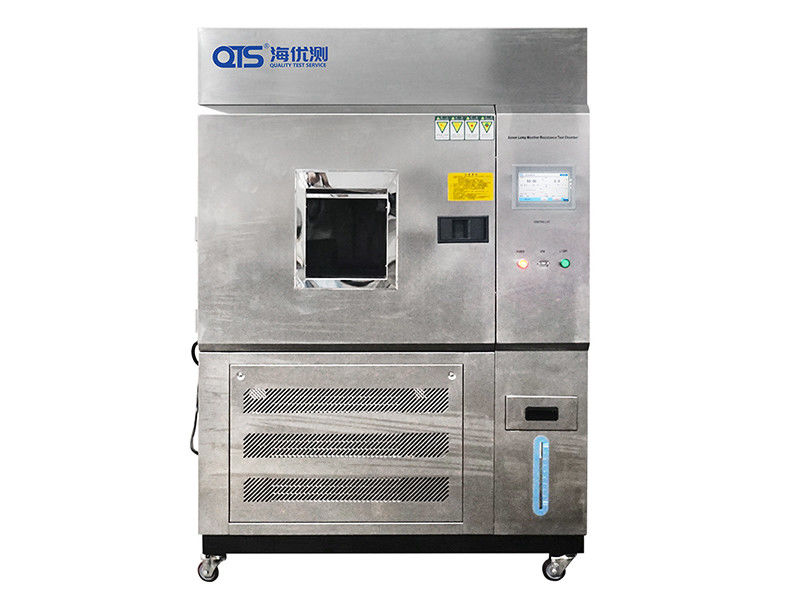

Stainless Steel Xenon Test Chamber Environmental Testing Chamber
Product Introduction:
Xenon Lamp Aging Chamber is to test the product undergone illumination/rain/condensation/temperature/humidity/wind and any other climatic changes.
This aging tester mainly for the test of non-ferrous/organic/rubber/plastic and building materials.
Xenon Lamp Aging Chamber can provide data for user to evaluate the products' properties and performance in order to improve the product qualities.
Specifications:
| Model | HD-711L Xenon Lamp Aging Chamber |
| Inner Box Size (D×W×H) | 950×950×900mm |
| Outside Dimension (D×W×H) | 1300×1500×1900mm |
| Humiture Range | (RT+10)~70°C; 30~98%RH |
| Humiture uniformity | ± 2°C; ± 3%RH |
| Rainfall time | 1~9999min, adjustable |
| Rainfall cycle | 1~240min, interval is adjustable |
| Xenon lamp light | xenon long-arc lamp, 6KW±10%, 290-800nm, 1000W/m2±200 |
| Heating/humidifying power | 2.0KW/2.0KW |
| Sample spinning machine speed | 1~5r/ min (adjustable) |
| Sample and xenon lamp distance | 300~375mm |
| Box material | Stainless Steel SUS304# |
| Insulation materials | Superfine heat insulation cotton |
| Insulation body | Superfine glass fabric |
| Circulation system | Single cycle, centrifugal fan |
| Control system | Germany KLOCKNER-MOELLER progammable controler |
| Gas processing | dischager for fector and harmful gas |
| Power | AC380V, three phase five wire, 10KW |
| Use environment | 5°C~+30°C, ≤85%R.H |
| Standard features | 1. Filtering screen viewing window; 2.Moistureproof lamp |
| Security Protection | Security device for circuit break, |
| high pressure of the compressure, high temperature alarm |

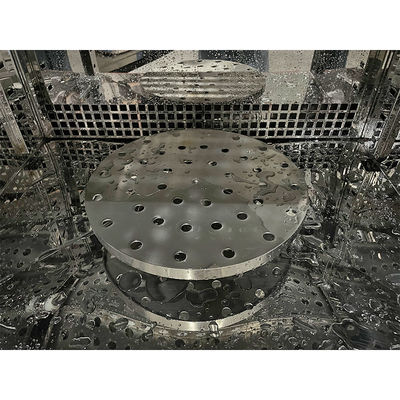

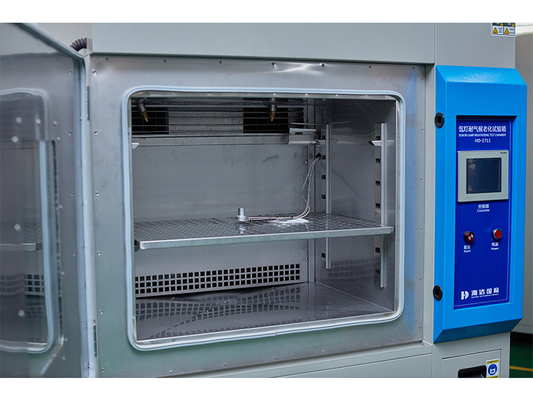

Pictures:
Features:
. Box shape using CNC machining and elegant, imported high grade stainless steel cabinet liner (SUS304) mirror panel, box outside the gallbladder with A3 steel spray
. Equipment is divided into the main part, heating, humidification, cooling dehumidification section , display control section, air conditioning parts, part of security measures and other accessories section;
. Temperature and humidity control devices with high precision the number of total imports of integrated micro computer controller;
. Accuracy: 0.1 (display range); Resolution: ± 0.1 ; temperature sensor: PT100 platinum resistance temperature body;
. Control: heat balance humidity thermostat method;
. Temperature and humidity control with P. I. D + S. SR system coordination control with the channel;
. It has automatic calculation of the function, temperature and humidity conditions can be amended immediately so that more precise control of temperature and humidity stable.
. Refrigerator with the French original, Tecumseh closed compressor.
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Our Services
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
4,Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5,Good Packaging:
Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
FAQ
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
