Professional Rain Spray Test Chamber Ingress Protection Test Equipment IP Tester

Professional Rain Spray Test Chamber Ingress Protection Test Equipment IP Tester

Professional Rain Spray Test Chamber Ingress Protection Test Equipment IP Tester
video
Professional Rain Spray Test Chamber Ingress Protection Test Equipment IP Tester
Product Details:
Place of Origin: China
Brand Name: Haida
Certification: CE,,ISO
Model Number: HD-E710-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 300 Sets per Month
Contact Now
Detailed Product Description
Usage: Universal Material Waterproof / Water Spray / Rain Spray Test Chamber Rotating Speed: Adjustable
Arm Radius: 300mm, 400mm, 600mm, 800mm, 1000mm, 1200mm Or 1500mm Rotating Angle: +/-270, Adjustable
Rotating Table: Speed Is Adjustable Flow Rate: 0.07L/min (IPX3,4), 0.6+/-0.5L/min (IPX4K)
Nozzle Distance: 50mm Nozzle Diameter: 0.4mm
Power: 1 Phase, 220V, 5KW Weight: Approx.350kg
Specimen Rotative Speed: 1-3r/min (Adjustable)
High Light:

ip testing equipment

,

ingress protection test equipment

Professional Rain Spray Test Chamber Ingress Protection Test Equipment IP Tester





Haida IPX1 - IPX8 Rain Test Chamber.pdf



GENERL SPECIFICATIONS

Packaging Dimensions: (W*D*H) 1600*1400*2000mm x 2

Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)

Gross Weight: 560kg

HS Code: 8424899909



STANDARD FEATURES

Item Specification
Internal chamber size(W*D*H) 1000*1000*1000mm(can be customized)
External chamber size(W*D*H) 1400*1200*3500mm
IP Code IPX5 IPX6
Internal diameter of the nozzle 6.3mm 12.5mm
Delivery rate 12.5l/min±5% 100l/min±5%
Core of the substantial stream Circle of approximately 40mm diameter at 2.5m distance from nozzle Circle of approximately 120mm diameter at 2.5m distance from nozzle
Chamber material Internal: SUS304 stainless steel, external: stainless steel
Test duration per square meterof enclosure surface area likely to be sprayed 1 min
Minimum test duration 3 min
Controller PLC touch screen
Distance from nozzle to enclosure surface Between 2.5m and 3m
Sample rotatory table Diameter 500mm, rotation speed adjustable
Power AC380V, 50Hz, three phase

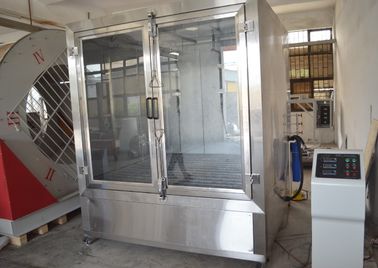

                                     Professional Rain Spray Test Chamber Ingress Protection Test Equipment IP Tester 0

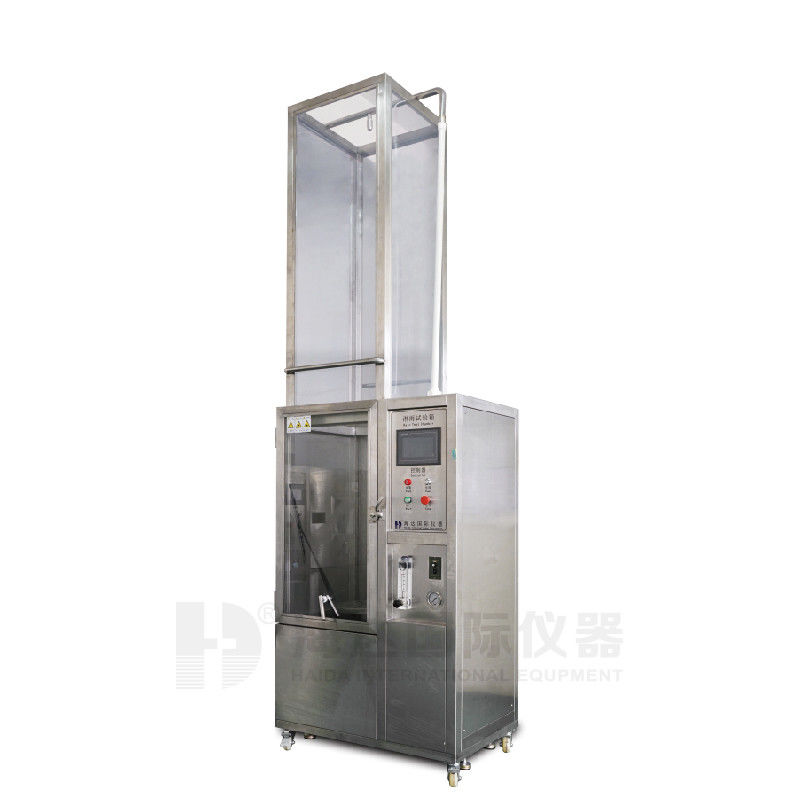

                                      Professional Rain Spray Test Chamber Ingress Protection Test Equipment IP Tester 1
