Product Details:
|
| Usage: | Constant Temperature And Humidity Testing Machine | Temp. Range: | -70°C~150°C |
|---|---|---|---|
| Humid. Range: | 10~ 98 Percent R.H. | Temp. & Humid. Accuracy: | ± 0.3°C; ± 2 Percent R.H |
| Temp. & Humid. Regularity: | ± 1°C; ± 3 Percent RH | Resolution: | 0.01°C, 0.1 Percent, P.I.D Control |
| Heating Up: | -40°C ~ +100°C Within 45 Min | Heating Down: | 20°C~ -20°Cwithin 40min |
| Interior Dimension(W×D×H): | 100×100×80cm | Exterior Dimension(W×D×H): | 145x190x135cm |
| Interior Material: | Stainless Steel Plate(SUS304) | Exterior Material: | Stainless Steel Plate(SUS304) |
| Insulation: | Rigid Foam | Display: | LCD |
| Weight: | Approx. 600 Kg | Power: | AC220V±10 Percent 50/60Hz |
| High Light: | environmental testing equipment,environmental test chamber |
||

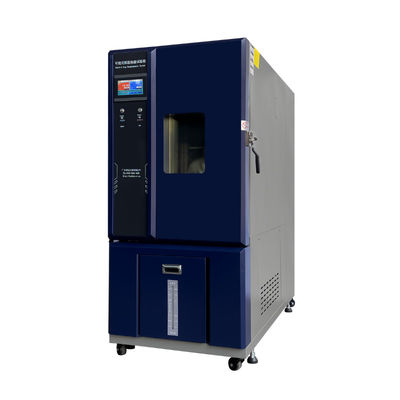

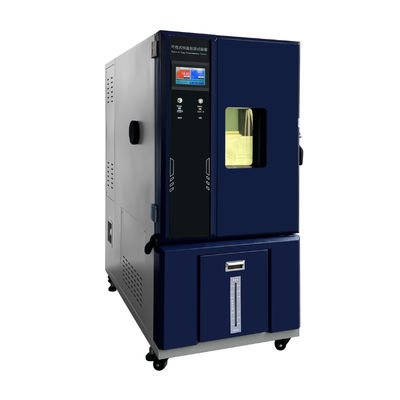

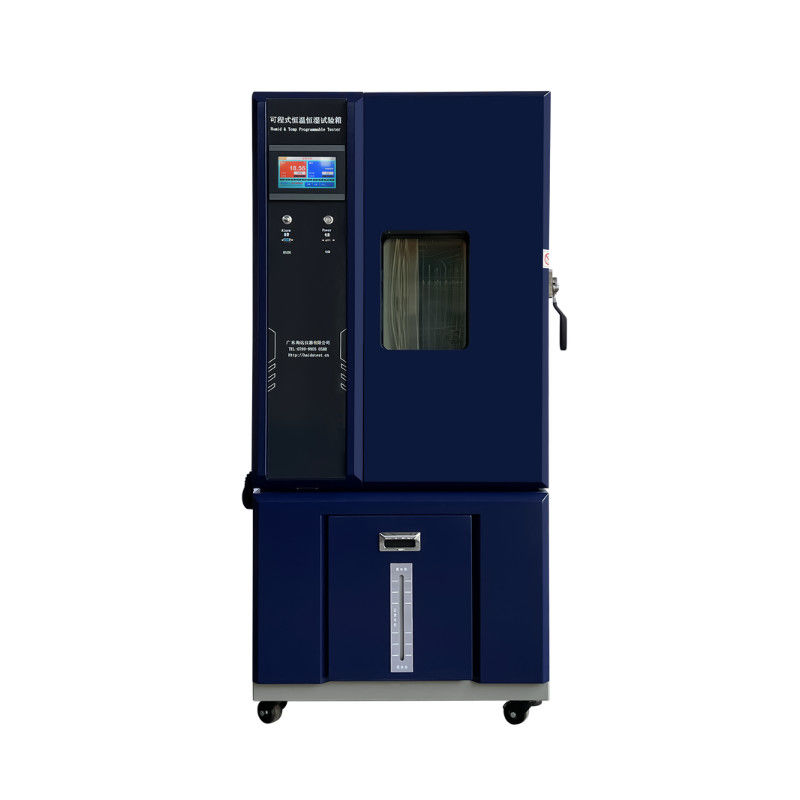

ISO Certificated Canstant Humidity Temperature Environmental Testing Chamber
HD-E702-1000-7 Climate Chamber.pdf
1.Chamber Summary:
ISO Certificated Canstant Humidity Temperature Environmental Testing Chamber used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for for all types of electronic products,electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical,building materials, medical and aerospace industries.
Features
The HD series chambers have temperature change rates from 1 to 3°C per minute in average and controlled humidity from 10% to 95%. There are 6 sizes with interior volumes of 100 to 1000 Liters or we also provide tailor-made chambers of size. On the advance model for Cycling Chambers have temperature change rates from 3 to 15 °C, controlled humidity from 10 to 95%.
International Applications
HD series chambers meet international test performance standards. The units can be installed around the world for consistent testing at different facilities, supported by Haida Group and our cooperation prater in Australia, Dubai, India, Malaysia, Turkey and Vietnam. And our chambers feature two levels of overheat protection, and one levels of overcool protection. The system controller provides alarm messages with specific troubleshooting help to quickly resume testing.
Standard Features:
2. Specifications of ISO Certificated Canstant Humidity Temperature Environmental Testing Chamber:
Range – 70 to 150°C
|
Temp/Humidity |
HD-E702-100-7 |
HD-E702-150-7 |
HD-E702-225-7 |
|
|
|
HD-E702-408-7 |
HD-E702-800-7 |
HD-E702-1000-7 |
|
|
Temp-only |
HD-E702-100T-7 |
HD-E702-150T-7 |
HD-E702-225T-7 |
|
|
|
HD-E702-408T-7 |
HD-E702-800T-7 |
HD-E702-1000T-7 |
|
|
Temperature Range: |
-70°C ～150°C |
|||
|
Cooling Capacity |
~ 2.5 kW at -50°C |
~ 3 kW at -50°C |
~ 5 kW at -50°C |
|
|
~ 6.5 kW at-50°C |
~ 8.5 kW at -50°C |
~ 9 kW at - -50°C |
||
|
Heating System |
~ 5 kW |
~ 5 kW |
~ 5.5 kW |
|
|
~6.5 kW |
~ 8.5 kW |
~ 9 kW |
||
|
Temperature Fluctuation: |
±0.5°C |
|||
|
Temperature Gradient: |
±0.5°C～±0.2°C |
|||
|
Heating Rate†: |
≥3℃ / min average ( Advance model 5 – 15 ℃ / min) |
|||
|
Cooling Rate†: |
≥1℃ / min average (Advance model 5 - 15℃ / min) |
|||
|
Humidity Range: |
10％～95％RH (Ref to Normal Humidity Range Diagramed) |
|||
|
Humidity Fluctuation: |
±1.5％RH～±2.0％RH |
|||
|
Humidity Gradient: |
±3％RH |
|||
|
Dimensions |
||||
|
Workspace dimensions |
500x400x500 HD-E702-100 |
600x500x500 HD-E702-150 |
750x500x600 HD-E702-225 |
|
|
|
850x650x800 HD-E702-800 |
1000x1000x800 HD-E702-800 |
1000x1000x1000 HD-E702-1000 |
|
|
Exterior dimensions |
1400x850x1050 |
1500x950x1050 |
1650x950x1150 |
|
|
|
1750x1050x1350 |
1900x1450x1350 |
1900x1450x1550 |
|
|
Site Requirements |
||||
|
Electrical Supply: |
208V 3Ø 60Hz or 230V 3Ø 60Hz (customer specific) |
|||
|
Humidity Water |
Distilled water |
|||
|
Condensate Drain: |
1/2" hose connection (gravity drain) |
|||
Range – 40 to 150°C
|
Temp/Humidity |
HD-E702-100-4 |
HD-E702-150-4 |
HD-E702-225-4 |
|
|
|
HD-E702-408-4 |
HD-E702-800-4 |
HD-E702-1000-4 |
|
|
Temp-only |
HD-E702-100T-4 |
HD-E702-150T-4 |
HD-E702-225T-4 |
|
|
|
HD-E702-408T-4 |
HD-E702-800T-4 |
HD-E702-1000T-4 |
|
|
Temperature Range: |
-40°C ～150°C |
|||
|
Cooling Capacity |
~ 2 kW at -20°C |
~ 2.5 kW at -20°C |
~ 4.5 kW at -20°C |
|
|
~ 5.5 kW at-20°C |
~ 8 kW at -20°C |
~ 8.5 kW at - -20°C |
||
|
Heating System |
~ 5 kW |
~ 5 kW |
~ 5.5 kW |
|
|
~6.5 kW |
~ 8.5 kW |
~ 9 kW |
||
|
Temperature Fluctuation: |
±0.5°C |
|||
|
Temperature Gradient: |
±0.5°C～±0.2°C |
|||
|
Heating Rate†: |
≥3℃ / min average ( Advance model 5 – 15 ℃ / min) |
|||
|
Cooling Rate†: |
≥1℃ / min average (Advance model 5 - 15℃ / min) |
|||
|
Humidity Range: |
10％～95％RH (Ref to Normal Humidity Range Diagramed) |
|||
|
Humidity Fluctuation: |
±1.5％RH～±2.0％RH |
|||
|
Humidity Gradient: |
±3％RH |
|||
|
Dimensions |
||||
|
Workspace dimensions |
500x400x500 HD-E702-100 |
600x500x500 HD-E702-150 |
750x500x600 HD-E702-225 |
|
|
|
850x650x800 HD-E702-800 |
1000x1000x800 HD-E702-800 |
1000x1000x1000 HD-E702-1000 |
|
|
Exterior dimensions |
1400x850x1050 |
1500x950x1050 |
1650x950x1150 |
|
|
|
1750x1050x1350 |
1900x1450x1350 |
1900x1450x1550 |
|
|
Site Requirements |
||||
|
Electrical Supply: |
208V 3Ø 60Hz or 230V 3Ø 60Hz (customer specific) |
|||
|
Humidity Water |
Distilled Water |
|||
|
Condensate Drain: |
1/2" hose connection (gravity drain) |
|||
3. Performance of ISO Certificated Canstant Humidity Temperature Environmental Testing Chamber:
Get a performance evaluation to help provide the suitable chambers to you.
For better assurance of performance for your temperature and humidity cycling application, Haida can provide a guaranteed performance calculation based on your submitted requirements.
Please use these questions as below as a guide to define your test plan. You can then give this information to our lab consultant or email to us, for review by our lab consultant. A recommended model with appropriate refrigeration size will provide to you.
Questions for Performance Evolution Request:
System & Performance Options
(Normal Humidity Range Diagramed)
4. view:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
4,Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5,Good Packaging:
Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
