Product Details:
|
| Usage: | Environmental Constant Temperature And Humidity Control Test Instrument | Resolution: | 0.01°C, 0.1 Percent, P.I.D Control |
|---|---|---|---|
| Heating Down: | 20°C~ -20°Cwithin 40min | Interior Dimension(W×D×H): | 100×100×80cm |
| Exterior Dimension(W×D×H): | 145x190x135cm | Insulation: | Rigid Foam |
| Display: | LCD | Power: | AC220V±10 Percent 50/60Hz |
| High Light: | environmental testing equipment,environmental test chamber |
||

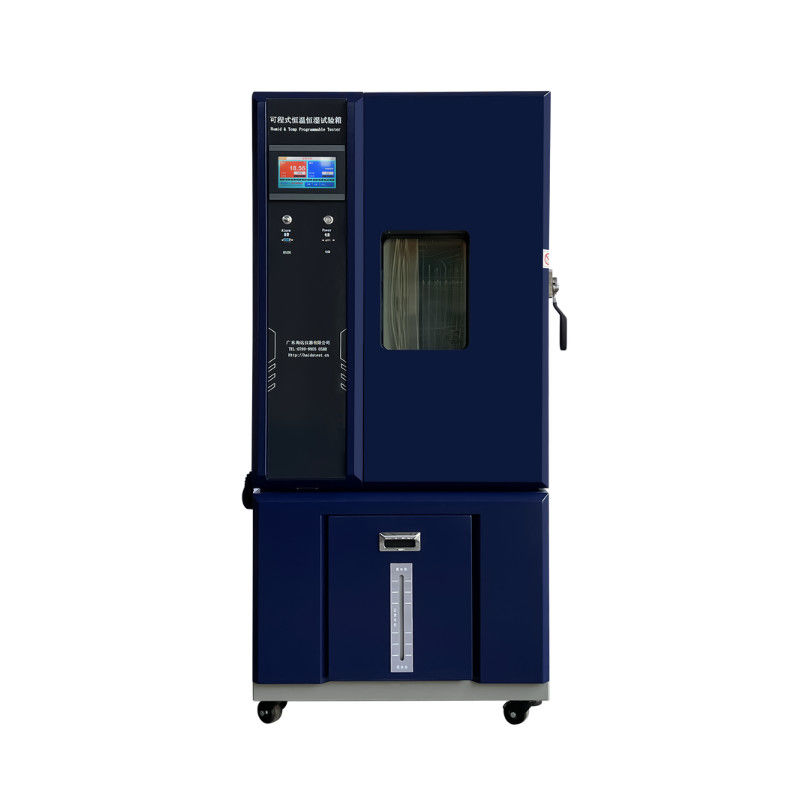

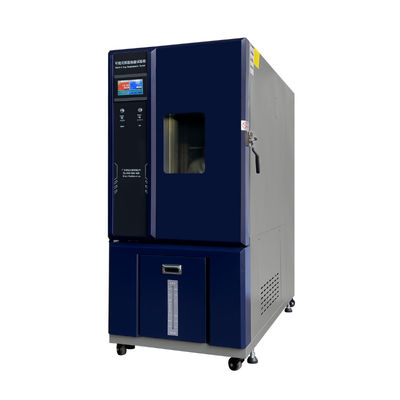

Controlled Humidity Chamber / Temperature Humidity Chamber Custom Made
Temperature and humidity chamber.pdf
International Applications
HD series chambers meet international test performance standards. The units can be installed around the world for consistent testing at different facilities, supported by Haida Group and our cooperation prater in Australia, Dubai, India, Malaysia, Turkey and Vietnam. And our chambers feature two levels of overheat protection, and one levels of overcool protection. The system controller provides alarm messages with specific troubleshooting help to quickly resume testing.
The HD series chambers have temperature change rates from 1 to 3°C per minute in average and controlled humidity from 10% to 95%. There are 6 sizes with interior volumes of 100 to 1000 Liters or we also provide tailor-made chambers of size. On the advance model for Cycling Chambers have temperature change rates from 3 to 15 °C, controlled humidity from 10 to 95%.
Standard Features:
Stainless# 304 steel for interior
Paint steel for exterior
Foam-insulated door for rigidity and long life
Plastic water tank easy for maintenance
Observation Window with frost free function
High performance refrigeration system
Easy user interface for TEMI-880 PLC controller
One 100mm cable port/ Customer specified
One shelve, 10 Kg loading & 4 casters included
Van Type Sirocco,L134,Fan
PID controlled-Stainless Steel Humidifier
DuPont R-404A [No Fluorine] Refrigerant / 23 for below -40 °C
USB port for data output
Anti-explosive interior lamps
Data logging chart recorders, paperless recorders stored data in the PLC.
Performance
Get a performance evaluation to help provide the suitable chambers to you.
For better assurance of performance for your temperature and humidity cycling application, Haida can provide a guaranteed performance calculation based on your submitted requirements.
Please use these questions as below as a guide to define your test plan. You can then give this information to our lab consultant or email to us, for review by our lab consultant. A recommended model with appropriate refrigeration size will provide to you.
System & Performance Options
Low and Ultra-Low Humidity Extends the humidity control range. (Normal Humidity Range Diagramed)
Water-cooling system.
Dry Air Purge keeps moisture in the chamber extremely low by purging with -40 °C. Compressed air supply required
Additional shelves, 50 Kg loading
Cable ports with flexible silicone plug, 50 , 100, 150mm or customer specific diameters
(Normal Humidity Range Diagramed)
Specifications
Range – 40 to 150°C
|
Temp/Humidity |
HD-E702-100-4 |
HD-E702-150-4 |
HD-E702-225-4 |
|
|
|
HD-E702-408-4 |
HD-E702-800-4 |
HD-E702-1000-4 |
|
|
Temp-only |
HD-E702-100T-4 |
HD-E702-150T-4 |
HD-E702-225T-4 |
|
|
|
HD-E702-408T-4 |
HD-E702-800T-4 |
HD-E702-1000T-4 |
|
|
Temperature Range: |
-40°C ～150°C |
|||
|
Cooling Capacity |
~ 2 kW at -20°C |
~ 2.5 kW at -20°C |
~ 4.5 kW at -20°C |
|
|
~ 5.5 kW at-20°C |
~ 8 kW at -20°C |
~ 8.5 kW at - -20°C |
||
|
Heating System |
~ 5 kW |
~ 5 kW |
~ 5.5 kW |
|
|
~6.5 kW |
~ 8.5 kW |
~ 9 kW |
||
|
Temperature Fluctuation: |
±0.5°C |
|||
|
Temperature Gradient: |
±0.5°C～±0.2°C |
|||
|
Heating Rate†: |
≥3℃ / min average ( Advance model 5 – 15 ℃ / min) |
|||
|
Cooling Rate†: |
≥1℃ / min average (Advance model 5 - 15℃ / min) |
|||
|
Humidity Range: |
10％～95％RH (Ref to Normal Humidity Range Diagramed) |
|||
|
Humidity Fluctuation: |
±1.5％RH～±2.0％RH |
|||
|
Humidity Gradient: |
±3％RH |
|||
|
Dimensions |
||||
|
Workspace dimensions |
500x400x500 HD-E702-100 |
600x500x500 HD-E702-150 |
750x500x600 HD-E702-225 |
|
|
|
850x650x800 HD-E702-800 |
1000x1000x800 HD-E702-800 |
1000x1000x1000 HD-E702-1000 |
|
|
Exterior dimensions |
1400x850x1050 |
1500x950x1050 |
1650x950x1150 |
|
|
|
1750x1050x1350 |
1900x1450x1350 |
1900x1450x1550 |
|
|
Site Requirements |
||||
|
Electrical Supply: |
208V 3Ø 60Hz or 230V 3Ø 60Hz (customer specific) |
|||
|
Humidity Water |
Distilled Water |
|||
|
Condensate Drain: |
1/2" hose connection (gravity drain) |
|||
Range – 70 to 150°C
|
Temp/Humidity |
HD-E702-100-7 |
HD-E702-150-7 |
HD-E702-225-7 |
|
|
|
HD-E702-408-7 |
HD-E702-800-7 |
HD-E702-1000-7 |
|
|
Temp-only |
HD-E702-100T-7 |
HD-E702-150T-7 |
HD-E702-225T-7 |
|
|
|
HD-E702-408T-7 |
HD-E702-800T-7 |
HD-E702-1000T-7 |
|
|
Temperature Range: |
-70°C ～150°C |
|||
|
Cooling Capacity |
~ 2.5 kW at -50°C |
~ 3 kW at -50°C |
~ 5 kW at -50°C |
|
|
~ 6.5 kW at-50°C |
~ 8.5 kW at -50°C |
~ 9 kW at - -50°C |
||
|
Heating System |
~ 5 kW |
~ 5 kW |
~ 5.5 kW |
|
|
~6.5 kW |
~ 8.5 kW |
~ 9 kW |
||
|
Temperature Fluctuation: |
±0.5°C |
|||
|
Temperature Gradient: |
±0.5°C～±0.2°C |
|||
|
Heating Rate†: |
≥3℃ / min average ( Advance model 5 – 15 ℃ / min) |
|||
|
Cooling Rate†: |
≥1℃ / min average (Advance model 5 - 15℃ / min) |
|||
|
Humidity Range: |
10％～95％RH (Ref to Normal Humidity Range Diagramed) |
|||
|
Humidity Fluctuation: |
±1.5％RH～±2.0％RH |
|||
|
Humidity Gradient: |
±3％RH |
|||
|
Dimensions |
||||
|
Workspace dimensions |
500x400x500 HD-E702-100 |
600x500x500 HD-E702-150 |
750x500x600 HD-E702-225 |
|
|
|
850x650x800 HD-E702-800 |
1000x1000x800 HD-E702-800 |
1000x1000x1000 HD-E702-1000 |
|
|
Exterior dimensions |
1400x850x1050 |
1500x950x1050 |
1650x950x1150 |
|
|
|
1750x1050x1350 |
1900x1450x1350 |
1900x1450x1550 |
|
|
Site Requirements |
||||
|
Electrical Supply: |
208V 3Ø 60Hz or 230V 3Ø 60Hz (customer specific) |
|||
|
Humidity Water |
Distilled water |
|||
|
Condensate Drain: |
1/2" hose connection (gravity drain) |
|||
