Product Details:
|
| Product Name: | Walk In Test Chamber | Accuracy: | Temp. ±1c, Humidity ±2.5%Rh |
|---|---|---|---|
| Interior Walls: | Stainless Steel 304 | Exterior Walls: | Cold Rolled Stell Plate With Baking Finish |

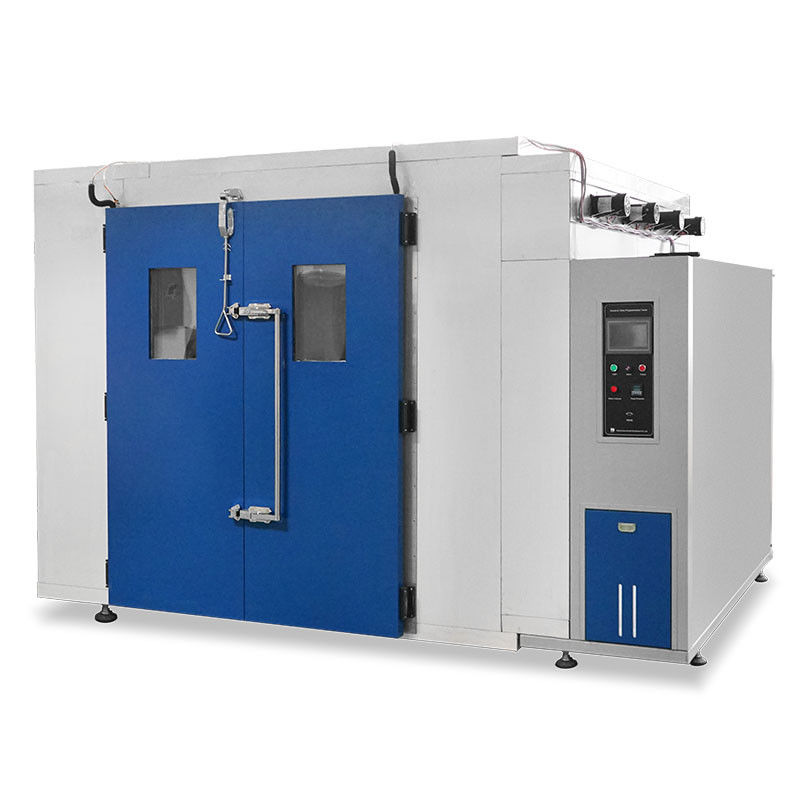

Walk-In Environmental Temperature Humidity Chamber Solar Panel Test Chamber
Description:
Haida Solar Panel Testing Systems provide customized environmental chamber solutions for testing solar panels, grid-tied photovoltaic inverters, or photovoltaic cells and modules.
Solar Panel Test Chambers are designed to test Solar Panels as per IEC test standards in order to prove their performance, reliability, durability and service life. There are three test methods that are performed; Thermal Cycle Test, Humidity Freeze Test and Damp Heat Test. Details of these tests are below:
Thermal Cycle Test: Thermal cycle test is performed according to IEC 61215:2005 standard to test ability of PV module to withstand effects of temperature stress. This test is performed between temperature 85°C and -40°C with fast changing rate. Number of cycles is run 50 or 200 times.
Humidity Freeze Test: Humidity freeze test is performed to determine ability of PV modules withstand against high temperature and humidity conditions followed by sub-zero temperature. In this this 10 cycles are run between 85°C with 85% relative humidity and negative temperature -40°C.
Damp Heat Test: Damp heat test is performed to test effects of long exposure of humidity penetration and high temperature. In this test is performed by applying 85°C ±2°C temperature with relative humidity of 85% for uninterrupted cycle of 1000 hours.
In order to perform above mentioned tests, we make Environmental Test Chambers or Climatic Test Chambers that can perform these tests effectively. As solar panels come in different sizes and dimensions; therefore, solar panel environmental chambers are also made according their sizes. Whatever the panel size, small, medium or large; we can design the test chamber that meets your requirement under your price budget. Our Solar panel environmental test chambers are made of imported components and fabricated with stainless steel sheets using CNC and laser machines. Digital touch control panel enables you to save temperature, humidity settings with controllable rate and dwell times. Data recording facility is inbuilt. Imported branded refrigeration system lets you experience trouble free negative temperature for long hours. Special stainless steel rack system is provided to hold PV modules inside chamber. We supply our solar panel test chambers all over worldwide at factory price with complete installation, commissioning and after sales service.
Specifications
| Specification | Hd-e705-7-1 |
| Temperature Range | -50c To +100c |
| Humidity Range | 40% To 98% Rh |
| Dimension (Internal) (w x d x h) | 1500 x 1500 x 3000 Mm |
| Dimension (External) (w x d x h) | 2850 x 1700 x 3200 Mm |
| Ramp |
Variable, Temp. 0~5c / Min & Humidity 0~5%/Min In Average, No Load |
| Accuracy | Temp. ±1c, Humidity ±2.5%Rh |
| Interior Walls | Stainless Steel 304 |
| Exterior Walls | Cold Rolled Stell Plate With Baking Finish |
| Temperature & Humidity Measurement And Controller |
32 Bit Control And Monitoring System. Interface Facility With Rs232 Programmable Temp. Humid. Controller |
| Viewing Window | Multi Pane Glass Window Size |
| Port Holes | 50 Mm Diameter For Wire Routing |
| Power Supply Requirement | Three Phase, Ac380 v ± 10 %, 50 Hz |
| Sound Pressure Level | <72db (a) |
| Condenser Cooling | Water Cooled |
The table parameters is for the company Standard Model parameters, we support customer customization parameters
Viewing Window
Viewing interlock is sealed to avoid leakage and provided with heating provision to prevent condensation
Illumination
Inernallight on viewing windows with external control
Port Holes
Each port hole provided with silicon sealing bunker (plug)
Operating System
Detailed operating & maintanance manual
a. operational instruction
b. complete list parts
c. preventive maintenance procedure
d. trouble shooting measures
e. electrical circuit diagrams
Why Choose Us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2. Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3. Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4. Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
