Product Details:
|
Temperature Uniformity: | ±0.5°C | Temperature Range: | 0°C To +60°C |
---|---|---|---|
Humidity Range: | 20% To 95% RH | Weight: | 200Kg |
Product Name: | Temperature Humidity Chamber | Humidity Resolution: | 0.1% RH |
Temperature Rate Of Change: | 1.0°C/min | Humidity Uniformity: | ±2.5% RH |
Highlight: | Climate Change Test Temperature Humidity Chamber,Industrial Temperature Humidity Chamber,Simulate Climate Change Temperature Humidity Chamber |

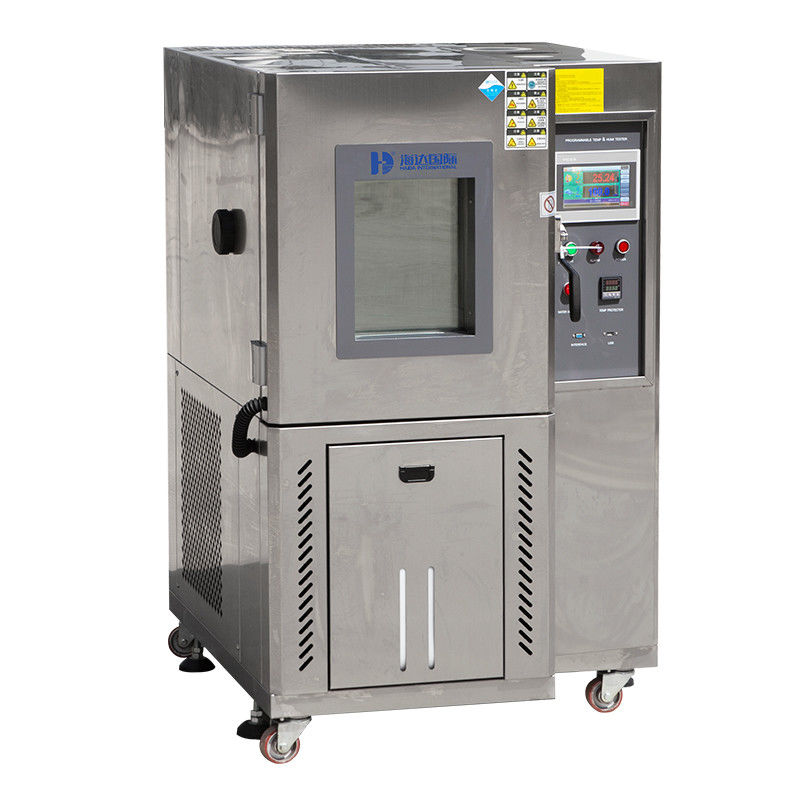

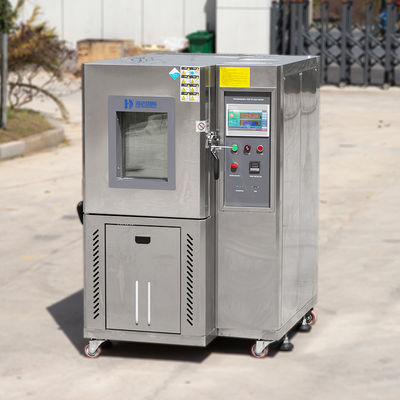

The Temperature Humidity Chamber is a powerful temperature and humidity testing equipment, ideal for environmental and climate testing. It is a temperature controlled chamber designed to provide a stable, repeatable and uniform temperature and humidity environment. This testing equipment is capable of rapidly changing temperature and humidity with a rate of change of 1.0°C/min and 1.0% RH/min respectively.
The Temperature Humidity Chamber is equipped with a heavy duty stainless steel construction with a high quality finish. The chamber is also equipped with a user-friendly digital controller for easy operation. Additionally, the chamber is designed with a high safety factor which makes it safe and efficient for use. With a total weight of 200Kg, the Temperature Humidity Chamber is the ideal temperature and humidity testing equipment for industrial and laboratory use.
This model features high performance and quiet operation, with an impressive 68 decibels of sound. It is specifically designed with a space-saving feature for flush installation into walls. A full thermal break is fitted around the doorframe for added durability. There is one 50mm diameter cable port o left, with flexible silicone plug included. Finally, an accurate wet/dry-bulb humidity measurement system is fitted for easy maintenance.
Parameter | Value |
---|---|
Temperature Range | 0°C To +60°C |
Temperature Accuracy | ±0.3°C |
Humidity Accuracy | ±3% RH |
Humidity Resolution | 0.1% RH |
Humidity Range | 20% To 95% RH |
Temperature Uniformity | ±0.5°C |
Humidity Uniformity | ±2.5% RH |
Weight | 200Kg |
Temperature Resolution | 0.1°C |
Humidity Rate of Change | 1.0% RH/min |
We can create a test environment with various temperatues and humidity. This is called a cyclic test and has a number of different climatic conditions. These are including holding test, cooling-off test, heating-up test, moistening test and drying test.
In order to provide the condition of test unit under operation, there is a flexible silicone plug for cable routing. This helps to uncover any weaknesses in the test unit through a short-term test, and provides an accelerated time effect.
Temperature Humidity Chamber technical support and services include:
The Temperature Humidity Chamber will be safely and securely packaged with the following materials:
The product is shipped via a reliable courier service such as FEDEX, UPS, or DHL.
