Product Details:
|
| Temperature Range: | -50c To +100c | Humidity Range: | 40% To 98% Rh |
|---|---|---|---|
| Dimension (Internal) (w X D X H): | 1500 X 1500 X 3000 Mm | Dimension (External) (w X D X H): | 2850 X 1700 X 3200 Mm |
| Viewing Window: | 50 Mm Diameter For Wire Routing | Sound Pressure Level: | <72db (a) |
| Condenser Cooling: | Water Cooled | Ramp: | Variable, Temp. 0~5c / Min & Humidity 0~5%/Min In Average, No Load |
| Accuracy: | Temp. ±1c, Humidity ±2.5%Rh | Interior Walls: | Stainless Steel 304 |
| High Light: | 72db Walk In Environmental Chamber,SS 304 Walk In Environmental Chamber |
||

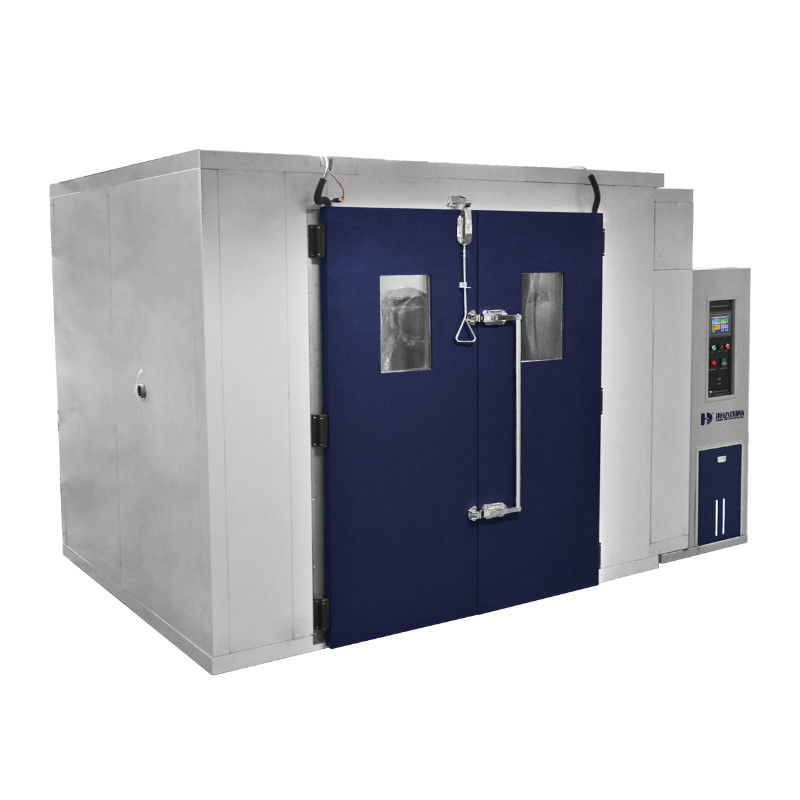

High Capacity Simulated Environment Laboratory Equipment Walk In Environmental Chamber
The usage:
Walk In Environmental Chamber is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.
general technical specification
15 thermal cyclic chamber
15.1 chamber with internal air circulation, and all the heaters and cooling coil located behind/below the false sheet of the chamber and outside the working space
16 interior
16.1 the conditioning with air circulation to maintain uniform temperatur
16.2 interior have provision for arranging stainless steel
17 insulation
17.1 insulation is asbestos-free csc-free, with low thermal conductivity, polyrthene pu foam
18 cooling system
18.1 cascade type, refrigeration system with hermetically sealed refrigeration
cycles with environment and ozone friendly and chloride free refrigeration
19 door
19.1 lockable front opening, with double door latch easy to open
19.2 with silicon gasket for perfect sealing
Features of Professional Walk In Environmental Chamber:
1. The separation of humidifier circuit from electric circuit improves safety and protects the circuit against the leakage of water supply line.
2. Freezer imported by the French original armored warrior compressor and use environmental-friendly refrigerant (R134a, R404a, R23).
3. Water supply adopts automatic watering system, circulating water supply together with water filter
4. The system-wide multi-security protection and power-cut memory.
5. Available in Chinese and English LCD touch screen, easy operation and program.
6. The system of heating up, heating down, dehumidifying, and humidifying can be operated independently so as to reduce the cost of testing, extend the operation life of the machine and decrease the failure rate.
7. The Sirocco fan motor provides greater cyclic airflow to avoid dead corner in the chamber so as to obtain an uniform distribution of temperature and humidity.
8. Able to display the relative date and information of the whole operating system in running mode, graphic display, precautions, maintenance and troubleshooting appear on the screen instantly.
Specification:
| Specification | HD-E705-8 |
| Temperature Range | -50c To +100c |
| Humidity Range | 40% To 98% Rh |
| Dimension (Internal) (w x d x h) | 1500 x 1500 x 3000 Mm |
| Dimension (External) (w x d x h) | 2850 x 1700 x 3200 Mm |
| Ramp |
Variable, Temp. 0~5c / Min & Humidity 0~5%/Min In Average, No Load |
| Accuracy | Temp. ±1c, Humidity ±2.5%Rh |
| Interior Walls | Stainless Steel 304 |
| Exterior Walls | Cold Rolled Stell Plate With Baking Finish |
| Temperature & Humidity Measurement And Controller |
32 Bit Control And Monitoring System. Interface Facility With Rs232 Programmable Temp. Humid. Controller |
| Viewing Window | Multi Pane Glass Window Size |
| Port Holes | 50 Mm Diameter For Wire Routing |
| Power Supply Requirement | Three Phase, Ac380 v ± 10 %, 50 Hz |
| Sound Pressure Level | <72db (a) |
| Condenser Cooling | Water Cooled |
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Our Services
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
4,Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5,Good Packaging:
Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
