Product Details:
|
| Product Name: | Altitude Test Chamber | Temperature Range: | -70~+100℃(no Load) |
|---|---|---|---|
| Temperature Fluctuation: | ±0.5℃ | Temperature Uniformity: | ±2℃ |
| High Light: | environmental testing equipment,environmental test chamber |
||

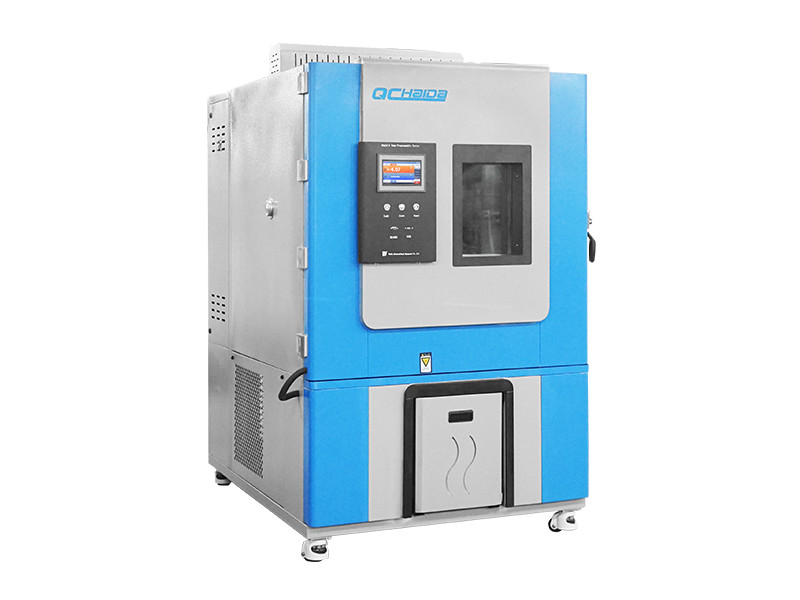

Temperature Cycling Altitude Environmental Test Chamber With Programmable
Product Description:
Altitude Environmental Test Chamber is mainly used in aviation, aerospace, information, electronics and other fields, instruments and meters, electric products, materials, parts, equipment at the same time in the low pressure, high temperature, low temperature single or under the action of the environmental adaptability and reliability of the test, and or electric performance parameters for the specimen electricity measurement, adopt and composite structure form, the test chamber by is located in the front of the heat preservation box (confined structure), located at the back of the refrigeration, located on the chamber door vacuum unit and the electrical controller (system).
Standard Features:
| Internal dimension (W*D*H) | 1000*1000*1000mm |
| Temperature range | -70~+100℃(no load);-55~+100℃(with load) |
| Temperature fluctuation | ±0.5℃ |
| Temperature uniformity | ±2℃ |
| Ambient Humidity | ≤85%RH |
| Cooling speed | ≥1℃/min in average (with loading 15kg,+85℃~-55℃ ) |
| Heating speed | 1℃/min in average (with loading,-55℃~+85℃) |
| Pressure Range | 101Kpa~1Kpa |
| Pressure Accuracy | ±5% |
| Pressure Control Method | Adjust temperature first, then pump vacuum |
| Internal chamber material | Steel plate with plastic spray |
| External chamber material | Stainless steel |

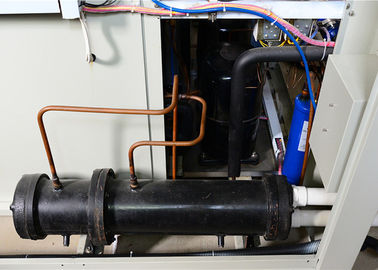

| Cooling method | Water Cooler |
| Controller |
LCD touch screen, programmable control temperature and Pressure Can set different parameter for cyclic test |
| Insulation material | Compound material without sweating, special for low pressure |
| Heating Method | Electrical |

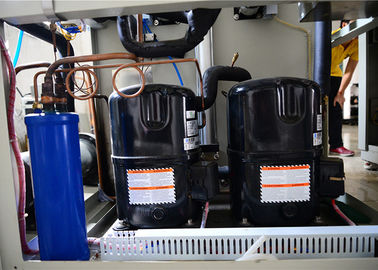

| Compressor | Imported new generation with low noise |
| Safety protection device |
Protection for leakage Over-temperature Compressor over voltage and overload Heater short circuit |
The table parameters is for the company Standard Model parameters, we support customer customization parameters
Applications
1. To simulate test environment with various altitude environments .
2. It is especially important for defense and aerospace applications where pressure and vacuum conditions are even more intense
3. Application fields: Include Aviation, aerospace, communications, electronics, electrical appliances etc.
4. Test Purpose: to guarantee the maximum quality and reliability while products or material might encounter at various altitude levels.
Features:
1. High performance and quiet operation
2.Space-saving designed for flush installation to wall
3. External pressure type box body structure and stainless steel tank design, rational air circulation system and scientific layout of heating, refrigerating system
4. Adopts international brand of imported parts for cooling system to improve operation reliability
5. High precision and stable performance with touch screen controller, friendly Man-Machine interface.
6. Multiple layers of safety device to easy maintenance.
Altitude Environmental Test Chamber Meet Following Standards:
GB2423.25-1992
GB2423.26-1992
GJB150.3A-2009
GJB150.4A-2009
GJB150.2A-2009
GJB5170.10-200
Our Company Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
Why Choose Us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2. Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3. Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4. Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
