Environmental Formaldehyde Test Chamber For Emission Test With Programmable

Environmental Formaldehyde Test Chamber For Emission Test With Programmable
Environmental Formaldehyde Test Chamber For Emission Test With Programmable Environmental Formaldehyde Test Chamber For Emission Test With Programmable Environmental Formaldehyde Test Chamber For Emission Test With Programmable Environmental Formaldehyde Test Chamber For Emission Test With Programmable

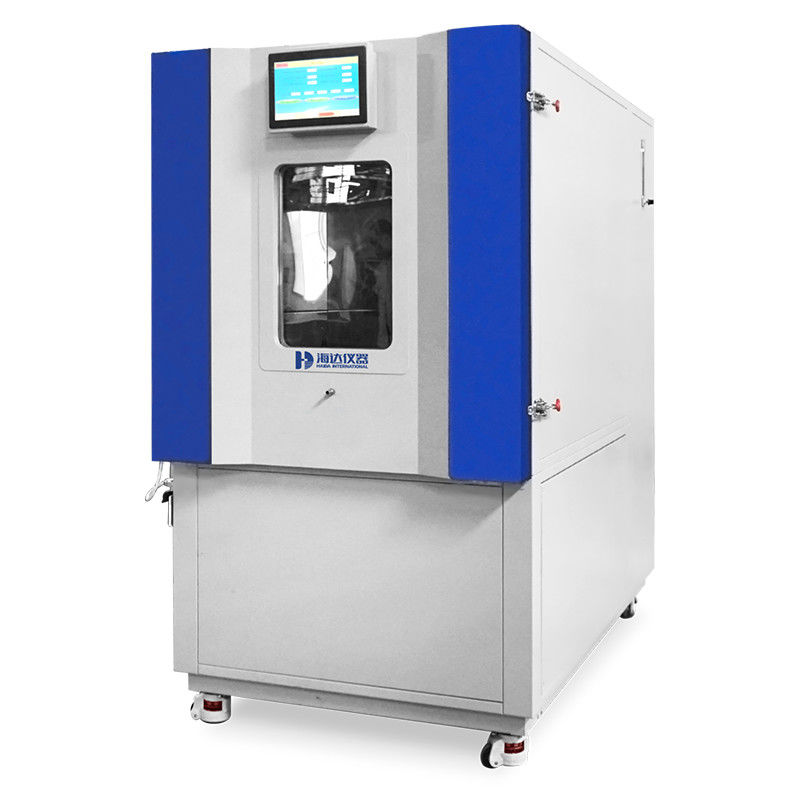

Large Image :  Environmental Formaldehyde Test Chamber For Emission Test With Programmable

Product Details:
Place of Origin: China
Brand Name: Haida
Certification: ISO
Model Number: HD-F801-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 300 Sets per Month Haida

Environmental Formaldehyde Test Chamber For Emission Test With Programmable

Product Name: Formaldehyde Test Chamber Inner Volume: (1.0±0.02)m³
Test Temperature Range: (10—40)℃, Accuracy:±0.5℃, Resolution 0.1℃, Adjustable Air Exchange: (0.1—2)m/s, Accuracy:±0.05 M/s, Adjustable
Air Speed: (0.2—2)m³/h, Accuracy: ±5%, Adjustable
High Light:

furniture testing equipment


compression testing machine

Environmental Formaldehyde Test Chamber For Emission Test With Programmable


HD-F801-3 Formaldehyde Test Chamber.pdf


Product Description:


Formaldehyde test chamber, mainly used for interior decoration materials (such as: standard climate simulation for formaldehyde emission detection of man-made panels, carpets, paints, wallpapers, curtains, etc.) and manufacturing of standard test chambers for reasonable release of materials Formaldehyde, and then determine the amount of formaldehyde released.


Working principle:

Put sample of 1 square meter area into the temperature chamber which controlled control in a certain value of temperature, relative humidity, air velocity. The formaldehyde released from samples, mixed with the air in the cabinet, regular extraction in the air, and the air will be drawn through the absorption bottle is filled with distilled water, all the formaldehyde in air dissolve in the water; Measure the amount of formaldehyde in the absorption solution and extraction of air volume, and show it by micrograms per cubic meter (mg/m after), calculate the amount of formaldehyde in per cubic meter of air. Sampling is cyclical, until the test the formaldehyde concentration in the oven to reach equilibrium.



Technique Data:


Inner volume (1.0±0.02)m³
Test temperature range (10—40)℃, accuracy:±0.5℃, Resolution 0.1℃, Adjustable
test humidity adjustable range (30—80)%, accuracy:±3%, Resolution 0.1%, Adjustable
Air exchange (0.1—2)m/s, accuracy:±0.05 m/s, Adjustable
Air speed (0.2—2)m³/h, accuracy: ±5%, Adjustable
Leakproofness 1KPa relative pressure, leakage rate<10-3×1m³/min, import and export air differ<1%
background levels formaldehyde≤0.006mg/m³
Adiabaticity The wall and door of the climate box is effectively thermal insulation
Noise less than 60dB
Continuous working hours not less than 40 days
monitoring parameter Monitoring the temperature and humidity, air discharge, switching time, working time, data can be transferred and stored
Method of controlling humidity The dew point control method is adopted to control the relative humidity, the humidity is stable, and the fluctuation range <3%.rh. no water appear on the inside
Out dimension (W×D×H) 1630 x 1200 x 1850mm


Configuration list:


Standard computer, sampling tube, absorption bottle, gas sampler
Optional spectrophotometer, water bath, medicament, glass apparatus, standard solution, Balance




1. Box inner chamber is made of stainless steel, the surface is smooth and no condensation, adsorption formaldehyde, guarantee the accuracy. The thermostat box is made of hard foaming material. The door is sealed with silicone rubber, and it’s good thermal insulation performance and sealing performance. Box is equipped with forced air circulation device (it’s form the circulating air flow), to ensure the consistent temperature and humidity balance of the main structure in the cabinet: The inner tank is a mirror stainless steel test tank., the outer for insulation casing, compact, clean, efficient, energy saving, not only reduces the energy consumption and reduce the time of the balance of the equipment.

2. Using a 7 inch touch screen as personnel operating equipment dialogue interface, intuitive and convenient. Directly to set up and display the temperature in the cabinet, relative humidity, temperature compensation, compensation, dew point deviation, dew point temperature deviation, adopts imported sensors, and can automatically record and control curve drawing. Special control configuration software, the realization of system control, program setting, dynamic data display and historical data playback, fault recording, alarm Settings, and other functions.

3. It adopts industrial module and imported programmable controller, good operation stability and reliability, It can ensure the trouble-free operation for a long time and improve the service life of equipment, also reducing the operation cost of the equipment. And breakdown self check and prompt functions. It is convenient for users understanding the running situation of equipment, maintenance is simple and convenient.

4. The control program and operation interface are in accordance with the relevant test standard optimization design and simplely convenient operation.

5. It changed the existing reciprocating humidify the fog, dew point method is used to humidify, make the casing humidity change smoothly, thus greatly improve the accuracy of moisture control.

6. It adopted the imported film platinum resistor as temperature sensor, high precision, stable performance..

7. With advanced technology in the heat exchanger and high thermal efficiency, reduce the temperature gradient.

8. The compressor, such as temperature and humidity sensor, controller, relay device and so on, these spare parts adopted imported components.

9. Protection device: climate, water tank has high and low temperature dew point alarm protection with high and low water level alarm protective measures.

10.Integration of the whole machine structure is compact; Installation, debugging and use is very simple.



Formaldehyde Test Chamber Testing Standrads:

ASTM D6007—14

EN 717-1 Wood-Based Panels Determination of Formaldehyde Release-Part 1:Formaldehyde Emission by the Chamber Method.




                                   Formaldehyde Test Chamber
