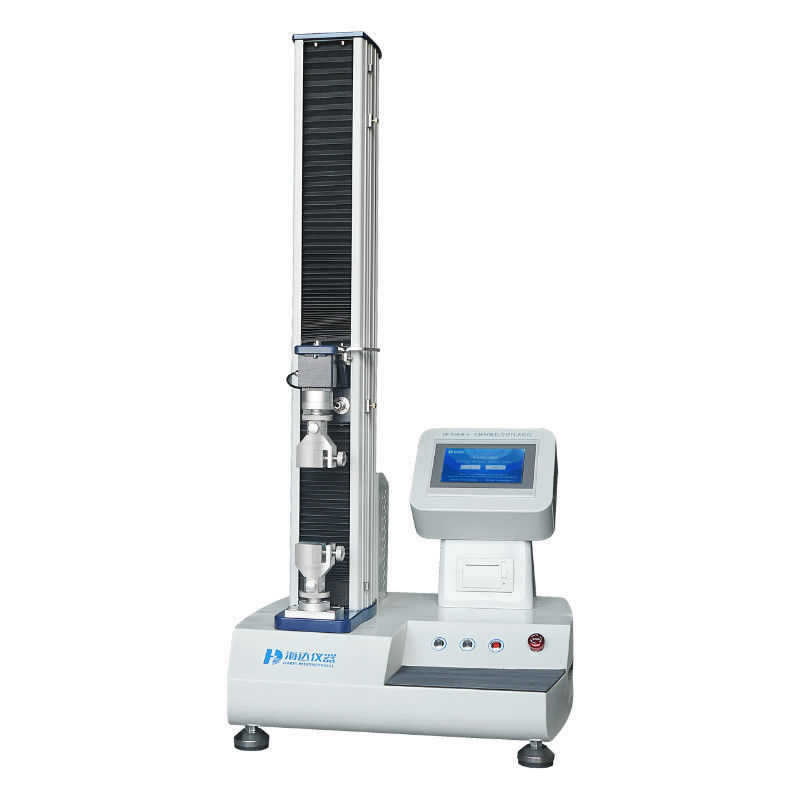

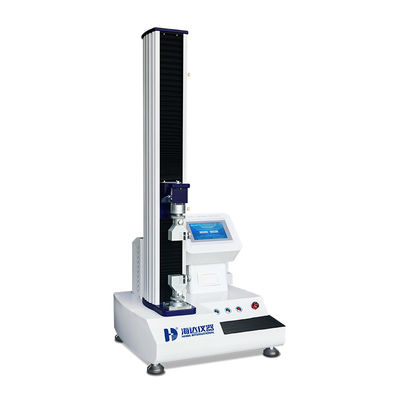

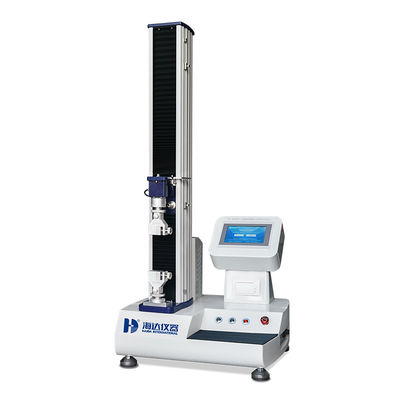

TM2101 Material Tensile Strength Test Equipment , Universal Tensile Testing Machine

TM2101 Material Tensile Strength Test Equipment , Universal Tensile Testing Machine
TM2101 Material Tensile Strength Test Equipment , Universal Tensile Testing Machine TM2101 Material Tensile Strength Test Equipment , Universal Tensile Testing Machine TM2101 Material Tensile Strength Test Equipment , Universal Tensile Testing Machine TM2101 Material Tensile Strength Test Equipment , Universal Tensile Testing Machine TM2101 Material Tensile Strength Test Equipment , Universal Tensile Testing Machine

Large Image :  TM2101 Material Tensile Strength Test Equipment , Universal Tensile Testing Machine

Product Details:
Place of Origin: China
Brand Name: HAIDA
Certification: ISO,CE
Model Number: HD-B609B-S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 Sets per Month

TM2101 Material Tensile Strength Test Equipment , Universal Tensile Testing Machine

Description
Name: Tensile Strength Testing Equipment Capacity: 5~200kg
Load Accuracy: 0.5% F.S Control System: G, KG, N, LB
Display Device: LCD With Build-in Printer /PC With Windows 7 System Force Reading: 1/250,000
Motor: Kgf, Ibf, N, KN, T Etc Vertical Test Space: 900mm Including Fixture
Test Speed: 0.1-500mm/min (adjustable ) Power: 1ø, AC220V, 50HZ
High Light:

universal test equipment

,

tensile strength tester

TM2101 Material Tensile Strength Test Equipment , Universal Tensile Testing Machine





Product Description

Tensile test machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.



Tensile testing machine is used to test the mechanical properties of various materials such as static load, tensile, compression, bending, shearing, tearing, peeling and other mechanical properties of mechanical equipment. It is suitable for plastic plates, pipes, and other materials. Various physical and mechanical performance tests of profiles, plastic films and rubber, wires and cables, steel, fiberglass and other materials are developed for materials



Applications

Tested sample: plastic films, laminated materials, adhesive tapes, adhesive bandage (plaster), release paper, plastic films, leather, rubber & plastic, paper, fiber, etc.

Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.

Deformation under defined load: Test deformation under defined load of tested sample

Load under defined deformation: Test load under defined deformation of tested sample

Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.





Standard Features



Item Description
Frame capacity 200kg
Load cell brand Germany brand load cell for high accuracy
200kg (5,10,50,100kg are optional)
Load accuracy 0.5% F.S
Control system LCD with build-in printer /PC with windows 7 system
Motor Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod
Force reading kgf, Ibf, N, KN, T etc
Vertical test space 900mm including fixture
Test speed 0.1~500mm/min (adjustable)
Software TM 2101
Curves display Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…
Safety features E-Stop
Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat







Product Features

1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan)

2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation

3. Data transmission: RS232

4. Displacement resolution: 0.001mm

5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.

6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.

7. User can set parameters of product material such as length, width, thickness, radius, area and so on.

8. Many languages random switching: Simplified Chinese, Traditional Chinese, and English.





Software and Curves

The TM2101 software is designed purposely for computer controlled electronic universal testing machine, used for tension, compress, bend, shear, tearing and peel test. With the personal computer and interface plate, it could collect, save, process and print test result. Further it can calculate multiple parameters, i.e. maximum force, yield strength, average peel force maximum deformation, yielding point and elastic modulus; this system is featured in curve process, multi-sensor support, image interface, flexible data process and powerful system function.



SOFTWARE – TM 2101

tensile test machine software



User setting page



TM2101 Material Tensile Strength Test Equipment , Universal Tensile Testing Machine 1

Curves display picture



TM2101 Material Tensile Strength Test Equipment , Universal Tensile Testing Machine 2

Test result picture



TM2101 Material Tensile Strength Test Equipment , Universal Tensile Testing Machine 3

Test curve page
