Humidity testing Powerful air circulator smooth airflow Temperature Chamber

Humidity testing Powerful air circulator smooth airflow Temperature Chamber

Humidity testing Powerful air circulator smooth airflow Temperature Chamber
Humidity testing Powerful air circulator smooth airflow Temperature Chamber

Product Details:

Place of Origin: China
Brand Name: Haida
Certification: CE,,ISO
Model Number: HD-E702

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Strong Wooden Case
Delivery Time: 15 Days After Order
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 75 Piece / Pieces Per Month
Contact Now
Detailed Product Description
Usage: Constant Temperature And Humidity Testing Machine Humid. Range: 10~ 98 Percent R.H.
Resolution: 0.01°C, 0.1 Percent, P.I.D Control Heating Up: -40°C ~ +100°C Within 45 Min
Heating Down: 20°C~ -20°Cwithin 40min Power: AC220V±10 Percent 50/60Hz
Use: Temperature Test Chambers
High Light:

Temperature And Humidity Controlled Cabinets

,

Constant Temperature And Humidity Chamber

Humidity testing Powerful Air Circulator Smooth Airflow Temperature Chamber





Temperature and humidity chamber.pdf



1. Performance



Humidity testing Powerful air circulator smooth airflow Temperature Chamber can simulate both temperature and humidity. Controlled humidity from 10% RH to 95% RH can be maintained within the dry-bulb temperature range of +10°C to +85°C, limited by a 6°C dew point. For lower dew point conditions (low RH or relative humidity at low dry-bulb temperatures), you will need dry air purge or GN2 (gaseous nitrogen) purge. See the humidity range chart on the specification page of each temperature-humidity chamber for humidity range limits.





Questions for Performance Evolution Request:



temperature test chambers





System & Performance Options

  • Low and Ultra-Low Humidity Extends the humidity control range. (Normal Humidity Range Diagramed)
  • Water-cooling system.
  • Dry Air Purge keeps moisture in the chamber extremely low by purging with -40 °C. Compressed air supply required
  • Additional shelves, 50 Kg  loading
  • Cable ports with flexible silicone plug, 50 , 100, 150mm or customer specific diameters



2. Specifications of Stability High Low Temperature and Humidity Test Machine:



Range – 70 to 150°C



Temp/Humidity

HD-E702-100-7

HD-E702-150-7

HD-E702-225-7



HD-E702-408-7

HD-E702-800-7

HD-E702-1000-7

Temp-only

HD-E702-100T-7

HD-E702-150T-7

HD-E702-225T-7



HD-E702-408T-7

HD-E702-800T-7

HD-E702-1000T-7

Temperature Range:

-70°C ~150°C

Cooling Capacity

~ 2.5 kW at -50°C

~ 3 kW at -50°C

 ~ 5 kW at -50°C



~ 6.5 kW at-50°C

~ 8.5 kW at -50°C

~ 9 kW at - -50°C

Heating System

~ 5 kW

~ 5 kW

~ 5.5 kW



~6.5 kW

~ 8.5 kW

~ 9 kW

Temperature Fluctuation:

±0.5°C

Temperature Gradient:

±0.5°C~±0.2°C

Heating Rate†:

≥3℃ / min average ( Advance model 5 – 15 ℃ / min)

Cooling Rate†:

≥1℃ / min average (Advance model 5 - 15℃ / min)

Humidity Range:

10%~95%RH (Ref to Normal Humidity Range Diagramed)

Humidity Fluctuation:

±1.5%RH~±2.0%RH

Humidity Gradient:

±3%RH

Dimensions

Workspace dimensions
(WxDxH)mm:

500x400x500

HD-E702-100

600x500x500

HD-E702-150

750x500x600

HD-E702-225



850x650x800

HD-E702-800

1000x1000x800

HD-E702-800

1000x1000x1000

HD-E702-1000

Exterior dimensions
(WxDxH)mm:

1400x850x1050

1500x950x1050

1650x950x1150



1750x1050x1350

1900x1450x1350

1900x1450x1550

Site Requirements

Electrical Supply:

208V 3Ø 60Hz or 230V 3Ø 60Hz (customer specific)

Humidity Water

Distilled water

Condensate Drain:

1/2" hose connection (gravity drain)





Range – 40 to 150°C



Temp/Humidity

HD-E702-100-4

HD-E702-150-4

HD-E702-225-4



HD-E702-408-4

HD-E702-800-4

HD-E702-1000-4

Temp-only

HD-E702-100T-4

HD-E702-150T-4

HD-E702-225T-4



HD-E702-408T-4

HD-E702-800T-4

HD-E702-1000T-4

Temperature Range:

-40°C ~150°C

Cooling Capacity

~ 2 kW at -20°C

~ 2.5 kW at -20°C

 ~ 4.5 kW at -20°C



~ 5.5 kW at-20°C

~ 8 kW at -20°C

~ 8.5 kW at - -20°C

Heating System

~ 5 kW

~ 5 kW

~ 5.5 kW



~6.5 kW

~ 8.5 kW

~ 9 kW

Temperature Fluctuation:

±0.5°C

Temperature Gradient:

±0.5°C~±0.2°C

Heating Rate†:

≥3℃ / min average ( Advance model 5 – 15 ℃ / min)

Cooling Rate†:

≥1℃ / min average (Advance model 5 - 15℃ / min)

Humidity Range:

10%~95%RH (Ref to Normal Humidity Range Diagramed)

Humidity Fluctuation:

±1.5%RH~±2.0%RH

Humidity Gradient:

±3%RH

Dimensions

Workspace dimensions
(WxDxH)mm:

500x400x500

HD-E702-100

600x500x500

HD-E702-150

750x500x600

HD-E702-225



850x650x800

HD-E702-800

1000x1000x800

HD-E702-800

1000x1000x1000

HD-E702-1000

Exterior dimensions
(WxDxH)mm:

1400x850x1050

1500x950x1050

1650x950x1150



1750x1050x1350

1900x1450x1350

1900x1450x1550

Site Requirements

Electrical Supply:

208V 3Ø 60Hz or 230V 3Ø 60Hz (customer specific)

Humidity Water

Distilled Water

Condensate Drain:

1/2" hose connection (gravity drain)





3. Features:

Stainless steel exterior
Full thermal break around doorframe
One 50mm (2") diameter cable port on left, with flexible silicone plug
Three levels of overheat protection
115V main power for BTL-433 model
High performance and quiet operation (65 dBa)
Easy lift-off service panels, electrical access on left




WATLOW F4T PROGRAMMER/CONTROLLER


Popular PID controller with touch-screen operation
Stores 40 different profiles
Step types include: ramp, soak, jump/repeat, auto-start, and end
Ethernet interface for remote monitoring and operation





Standard Features:

  • Stainless# 304  steel for interior
  • Paint steel for exterior
  • Foam-insulated door for rigidity and long life
  • Plastic water tank easy for maintenance
  • Observation Window with frost free function
  • High performance refrigeration system
  • Easy user interface for TEMI-880 PLC controller
  • One 100mm cable port/ Customer specified
  • One shelve, 10 Kg loading  & 4 casters included
  • Van Type Sirocco,L134,Fan
  • PID controlled-Stainless Steel Humidifier
  • DuPont R-404A [No Fluorine] Refrigerant / 23 for below -40 °C
  • USB port for data output
  • Anti-explosive interior lamps
  • Data logging chart recorders, paperless recorders stored data in the PLC.



Performance indicators


Temperature Range RT + 10 ℃ ~ 100 ℃ Humidity 80 ~ 98% R · H fluctuation / uniformity ≤ ± 0.5 ℃ / ± 2 ℃ temperature deviation +2%, - 3% R · H Heating time of about 20min at room temperature ~ 100 ℃ temperature control ± 1 ℃ ± 2%




Control System


Imported microcomputer temperature controller wet integrated controller (display directly percent humidity).
Accuracy range setting accuracy: temperature ± 0.1 ℃, humidity ± 0.1% R · H, indicating accuracy: temperature ± 0.1 ℃, temperature ± 0.1% R · H temperature and humidity sensors platinum platinum resistance · PT100Ω.
Heating system is completely independent system, electric heating nichrome heater.
Isolated external humidification systems, stainless steel boiler type shallow surface evaporative humidifier.
Circulatory system temperature low noise air conditioning motors, leafy centrifugal wind wheel.





Heating system


Far-infrared heating using nickel-chromium alloy heating wire heating speed;
High temperature, low temperature completely independent systems;
Temperature control P · I · D + S · S · R system with channel coordination control;
Temperature control the output power by the microcomputer calculus, to achieve high accuracy and high efficiency power efficiency.




Cooling System


To ensure the chamber of cooling rate and minimum temperature requirements, the chamber of the refrigeration system cascade refrigeration system consisting of imported compressor, the refrigeration system has a reasonable match, high reliability and easy maintenance.
Refrigeration works: a refrigeration cycle are used against the card if the cycle, which consists of two isothermal and two adiabatic processes, whose process is as follows: a refrigerant through the compressor adiabatic compression to a higher pressure, the power consumption of the exhaust gas temperature, after the refrigerant through the condenser isothermally in and around medium heat exchange medium heat to four weeks. After the refrigerant flows through the shutoff valve adiabatic expansion work, when the refrigerant temperature decreases. Finally, the refrigerant passes through the evaporator isothermal heat from high temperature object, the object to be cooled so that the temperature is lowered. This loop again and again to achieve the purpose of cooling.

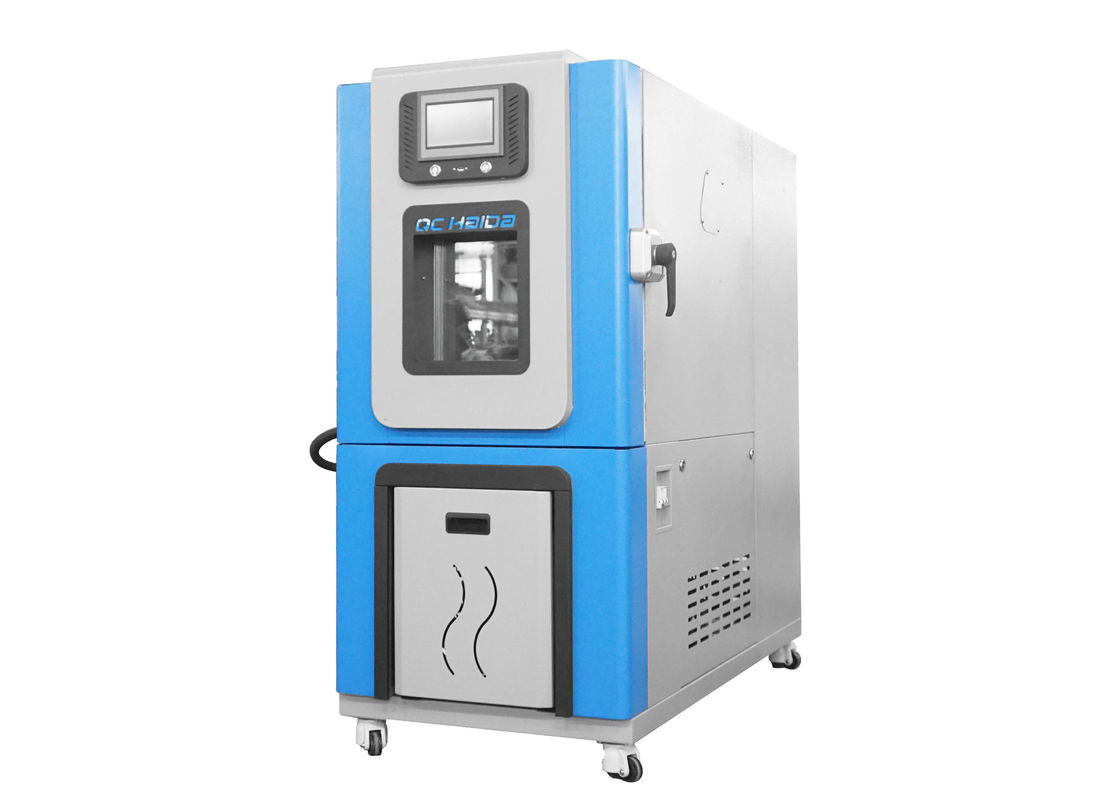

4. Professional Stability High Low Temperature and Humidity Test Machine view:



temperature test chambers

(Advanced refrigeration design is especially compact for HD-Series Chambers)
