|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||each set protected with resin fiber and PP film, then put into Strong wooden case with operation man|
|Delivery Time:||20 days after order confirmed|
|Payment Terms:||L/C, T/T, D/A, D/P, Western Union, MoneyGram|
|Supply Ability:||300 Sets per Month|
|Usage:||1-4 Ipx Waterproof Ip Test Equipmeent||Arm Radius:||300mm, 400mm, 600mm, 800mm, 1000mm, 1200mm Or 1500mm|
|Rotating Angle:||+/-270, Adjustable||Flow Rate:||0.07L/min (IPX3,4), 0.6+/-0.5L/min (IPX4K)|
|Nozzle Distance:||50mm||Nozzle Diameter:||0.4mm|
|Power:||1 Phase, 220V, 5KW||Weight:||Approx.350kg|
|Specimen Rotative Speed:||1-3r/min (Adjustable)|
ip testing equipment,
ingress protection testing
rain spray ip test Ingress Protection 1-4 ipx waterproof ip test equipment
Haida IPX1 - IPX8 Rain Test Chamber.pdf

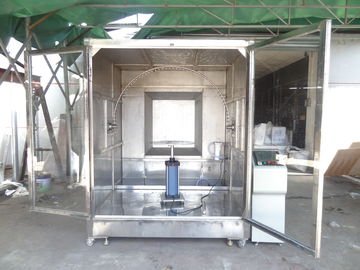

rain spray ip test Ingress Protection 1-4 ipx waterproof ip test equipmeent is used to test anti-rain and waterproof performance for products, the products such as .steam locomotive lamps, wiper performance, waterproof bands, motorcycle instruments, defense industry, navigation systems, missiles, radar cone top, aerospace industry, IEC IP code specifications that need an additional discussion
Packaging Dimensions: (WxDxH) 1480*1300*1850mm
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Gross Weight: 270kg

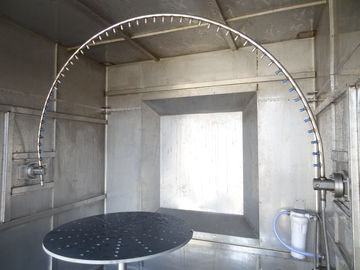

|Oscillating tube||Radius 400mm|
IPX3: spray ±60° from vertical line to each side, total 120°
IPX4: spray ±180° from vertical line to each side, total 360°
IPX3: 2*120° for 4s
IPX4: 2*360° for 12s
Diameter: 0.4mm, removable
Ensure the water sprays in a line and without tolerance
|Distance between two nozzles||50mm|
|Turntable rotation speed||1-3 cycles/min|
|Water flow of each nozzle||0.07 L/min +5%|
|Test duration||1~999,999min, adjustable|
|Material||Chamber - Stainless steel ; Spray nozzle - Brass|
1. To be used in testing external lighting and signal device and vehicle lamps shell protection.
2. Cyclic test includes conditions: heating, watering
3. The internal chamber has lighting device
4. Rain time, rain interval time and rainfall strength can be adjusted and controlled separately.

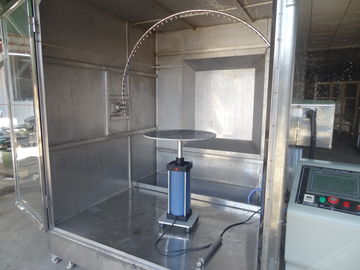

Rain Spray System
1. LCD Touch Screen Display and Control
2. Nozzle diameter: 0.4mm
3. Nozzle distance: 50mm
4. Flow rate: 0.07L/min (IPX3,4), 0.6+/-0.5L/min (IPX4K)
5. Arm Radius: 300mm, 400mm, 600mm, 800mm, 1000mm, 1200mm or 1500mm
6. Rotating angle: +/-270, adjustable.
7. Rotating speed: adjustable
8. Rotating table: speed is adjustable
9. Adjustable spray flow and spray time.
10. With 0-400kPa adjustable pressure regulator
11. All 304 stainless steel design, both interior and exterior

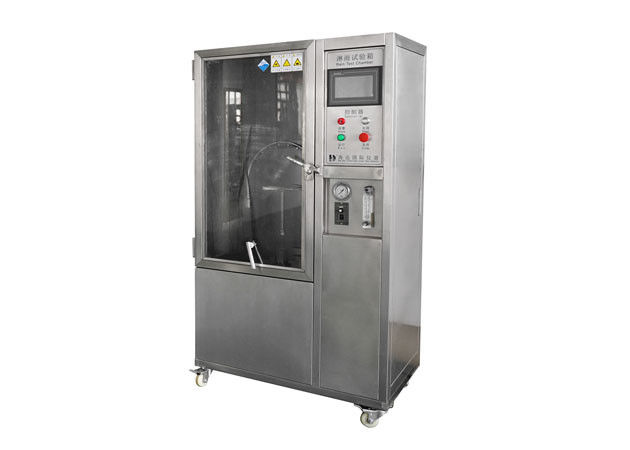

12. With chamber as option
(Rain Spray System)
1. Flexible positioning and electric trolley. It is easy to fix and achieve the changeable value of speed.
2. The height of trolley is relatively low so that is easy to fix the specimen; the strong impact resistance board can guarantee the fastness of the structure.
3. The trolley can be adjusted to be horizontal in order to fix the specimen for customer. The angle adjustment is driven by air cylinder which is flexible and convenient.
4. In order to keep the test staff completely safe, the tester is with remote control function.
5. Before testing, the customer only needs to fix the tester on the ground when stalling it, no other complicated operation.
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
