Product Details:
|
| Temp. Range: | -70°C~150°C | Humid. Range: | 10~ 98 Percent R.H. |
|---|---|---|---|
| Temp. & Humid. Accuracy: | ± 0.3°C; ± 2 Percent R.H | Temp. & Humid. Regularity: | ± 1°C; ± 3 Percent RH |
| Resolution: | 0.01°C, 0.1 Percent, P.I.D Control | Heating Up: | -40°C ~ +100°C Within 45 Min |
| Heating Down: | 20°C~ -20°Cwithin 40min | Interior Dimension(W×D×H): | 100×100×80cm |
| Exterior Dimension(W×D×H): | 145x190x135cm | Interior Material: | Stainless Steel Plate(SUS304) |
| Exterior Material: | Stainless Steel Plate(SUS304) | Insulation: | Rigid Foam |
| Display: | LCD | Weight: | Approx. 600 Kg |
| Power: | AC220V±10 Percent 50/60Hz | Use: | Constant Temperature And Humidity Chamber |
| High Light: | Temperature Humidity Test Chamber,Constant Temperature And Humidity Chamber |
||

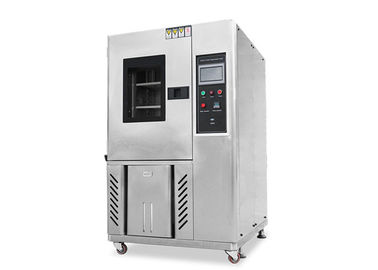

Centrifugal Air Circulation Chamber LCD Display Temperature Humidity Testing Chamber
Temperature and humidity chamber.pdf
Chamber Summary
centrifugal air circulation chamber LCD Display Temperature Humidity testing chamber is used to detect materials in the environmental performance of equipment and test various materials resistance to heat, cold, dry, performance.performance.For mobile PC case, electronic, electronics, communication, instrument, vehicles, plastic, metal, food, chemical, building materials, medical, aerospace and other products of quality.
Working principle
Circulating Air Chamber Automatically Adjust Cold - Hot Temperature Humidity Chamber (heating and cooling) and humidification is composed of two parts. Through installation in box within top Department of rotating fan, will air row into box achieved gas cycle, and balance box within of temperature, and humidity, by box built-in of temperature, and humidity sensor collection of data, biography to temperature, and humidity controller (micro information processing device) for edit processing, issued thermostat adjustable wet instruction, through air heating unit, and condensation tube and sink within heating evaporation unit of common completed.
Control system
Imported microcomputer temperature controller integrated controllers (humidity display percentage).
Accuracy range accuracy: ± 0.1%R ± 0.1 ° c, humidity temperature · H, indicating accuracy: ± 0.1 ° c, temperature is ± 0.1%R · • Platinum platinum resistance temperature and humidity sensors · PT100Ω.
Completely independent system of heating system, NI-CR alloy electric heating heater.

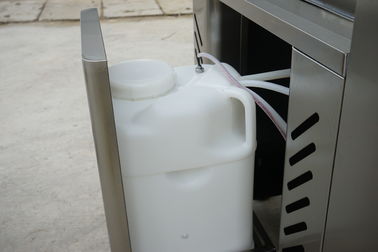

Humidification system external insulation type, stainless steel boiler type surface evaporative type humidifier.
Circulatory system and temperature of low-noise air conditioner motors, vane centrifugal wind wheel.
Main features
Parameters
| System | Balanced Temperature & Humidity Control System |
| Temp. range | -70°C~150°C |
| Humid. range | 20 ~ 98 percent R.H. |
| Temp. & Humid. accuracy | ± 0.3°C; ± 2 percent R.H |
| Temp. & Humid. regularity | ± 2°C; ± 5 percent RH |
| Resolution | 0.1°C, 1 percent, P.I.D control |
| Heating up | -40°C ~ +100°C within 45 min |
| Heating down | 20°C~ -20°Cwithin 40min |
| Interior dimension(W×D×H) | 50×60×50cm |
| Exterior dimension(W×D×H) | 102×170×87cm |
| Interior material | Stainless steel plate(SUS304) |
| Exterior material | Stainless steel plate(SUS304) |
| Insulation | Rigid foam |
| Refrigeration system | Air cooled, Hermetic compressor, single stage refrigeration system. |
| Display | LCD |
| Safety devices | No fuse breaker refrigerator over load relay, Refrigeration High pressure Switch, Over Temp, Protector, Protection relay, Protection fuse, Water Lever protector, Overheat protector, Alarm |
| Accessories | Viewing window, Shelves (freely adjustable 2 pcs.), Cable port(Ø50mm)Chamber lamp. |
| Weight | Approx. 330 kg |
| Power | AC220V±10 percent 50/60Hz |
Questions for Performance Evolution Request

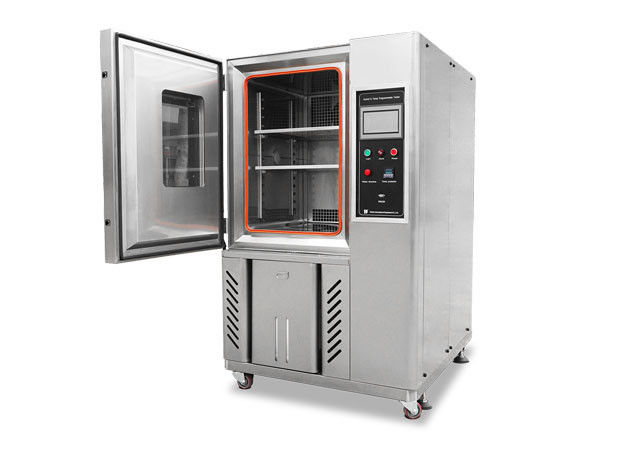

4. Environmental Temperature Humidity Laboratory Test Chamber view
(Advanced refrigeration design is especially compact for HD-Series Chambers)
