    Detailed Product Description
    Using Area: Machinery, Electronics, Instrumentation, Plastics Image: Clear
    Feature: Easy To Operate Price: Reasonable
    Camera: Color 1/3``CCD Camera Optical Magnification: 0.7~4.5X
    Object View-field: 8.1~1.3mm Resolution: 0.0005mm

        3D Optical coordinate measuring machine/optical measurement equipment




    Optical Coordinate Measuring Machine / Image Measuring Machine adopt precision multi-magnification, ultra low-distortion and high resolution telecentric zoom lens that developed by our company, equipping with DSP 1/2” CCD multicolor video system that our company especially designed for optical measure, so that the surface veins of workpiece can be displayed very clearly and distinctly, the hiberarchy of profile is distinguishable, and can be precisely enlarged 20~125 times for precision measure.




    Structure and composition


    Image measuring instrument is a kind of high-resolution CCD color camera, continuous zoom lens, color displays, video cross line generator, precision optical ruler, multi-function data processor, 2D data measurement software and high-precision table structures precision optical image measuring instrument.





    Measuring element
    Position, concentricity, straightness, etc.




    The Main Technical Parameters:

    Model TT-U801 Optical Coordinate Measuring Machine
    Glass table size  320×280mm
    Travel: X,Y  400×300mm
    Net Weight  240 kg
    Dimension  750×600×920mm
    Travel: Z : 150mm Work distance: 95mm
    Video system  Camera: Color 1/3``CCD camera
    Optical Magnification:0.7~4.5X
    Digital magnification:30~230X
    Object view-field:8.1~1.3mm
    Contour and surface illumination: Ring LED and brightness can be setup
    Power  180V(AC)-260V(AC) 50Hz
    Software  Quick Measuring 2.0




    Features of Optical Coordinate Measuring Machine / Image Measuring Machine:
    1 >   Creative modern-shape-design;
    2 >   Fashionable auto-painting-craftwork ;

    3 >   Steady granite base;
    4 >   Stable imported V-shape guide;
    5 >    Precise metal and glass worktable;
    6 >    High-speed 3-axis CNC driven motor;
    7 >    Adjustable USB 40-division ring LED illumination;
    8 >    Advanced Pomeas 0.7~4.5X Zoom lens;
    9 >    Wonderful SONY 1/2`` Color CCD camera;
    10>  Powerful 2.5D measuring software QuickMeasuring 4.1 version.




    Functions of Optical Coordinate Measuring Machine / Image Measuring Machine:

    1>  It can measure point, line, circle, arc, oval and rectangular to improve measurement accuracy with multi-point .

    2>  It has many features, such as combination of measurements, center structure, the intersection of structure, the midpoint of construction, line structure, a round structure and structural point of view.

    3> Coordinate translation and coordinates straighten out is to make measurement more convenient and efficient and improve measurement efficiency.

    4> Macros can measure the same parts faster and more convenient volume and improve the measurement efficiency.

    5> Measurement data directly input into AutoAD and become a full work circle .

    6> Measurement data can be entered in EXCEL to conduct statistical analysis, can draw a simple Xbar-S Control Yuan, find Ca and other parameters.

    7> Switching language interfaces.

    8> Record user program, editing and execute command.



    maintenance


    1, the instrument should be placed in a clean, dry room, avoid the optical surface of the part sweat loss, metal parts to rust, dust and debris falling into the movable rail, affecting the performance of the instrument.
    2, the instrument after use, should be ready to wipe clean working surface, and then cast the best guard.
    3, transmission equipment and rail movement, should be regularly lubricating oil.
    4, glass and painted surfaces dirty, you can wipe clean with a mild detergent and water. Never use organic agents to clean the paint surface, otherwise it would tarnish the paint surface.
    5, precision instrument parts, such as the impact of the system, table, optical device and Z-axis drive mechanism etc. required fine adjustment, all adjustment screws and sturdy screws are fixed and can not disassemble.

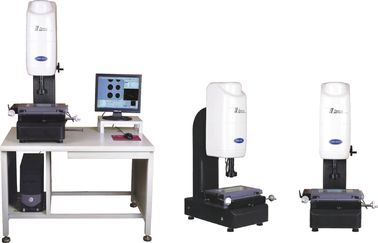

    Optical Coordinate Measuring Machine / Image Measuring Machine view:
