Portable 3D Laser Scanner Optical Measuring Testing Machine Sony CCD Camera

Portable 3D Laser Scanner Optical Measuring Testing Machine Sony CCD Camera
Portable 3D Laser Scanner Optical Measuring Testing Machine Sony CCD Camera Portable 3D Laser Scanner Optical Measuring Testing Machine Sony CCD Camera Portable 3D Laser Scanner Optical Measuring Testing Machine Sony CCD Camera Portable 3D Laser Scanner Optical Measuring Testing Machine Sony CCD Camera

Large Image :  Portable 3D Laser Scanner Optical Measuring Testing Machine Sony CCD Camera

Product Details:
Place of Origin: China
Brand Name: Haida
Certification: CE,,ISO
Model Number: HD-6050
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 300 Sets per Month

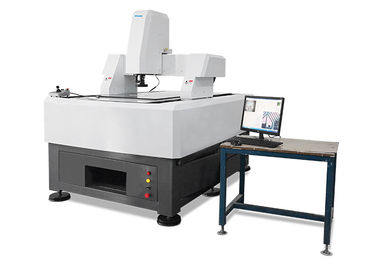

Portable 3D Laser Scanner Optical Measuring Testing Machine Sony CCD Camera

Description
Power: 50W(without Computer) Dimension (mm): 1130X1050X1700
Weight: 860kg Z Effective Space: 200mm
Travel: Z: 230mm Travel: X,Y (mm): 600X500
Glass Table Size (mm): 760X650 Marble Table Size(mm): 930X850
High Light:

Coordinate Measurement Machine

,

Optical Measuring Instruments

Portable 3D Laser Scanner Optical Measuring Testing Machine Sony CCD Camera





Applicability:



Portable 3D Laser Scanner Optical Measuring Testing Machine Sony CCD Camera has adopted precision slant girder technology (Patented) designed by advanced F.E.M. (finite element method), which has the high precision, high performance and high steady characteristics. The machine’s perfect style, strong rigidity, lightweight and close frame movable bridge structure, which configured with the world famous high-quality specific 3-D CMM control system and the world highest level self-owned intellectual property of AC-DMIS software, makes it become the highly appreciated product by comparing with its competitive price and high practical quality. It will meet customer’s challenging demand with a comprehensive measurement solution.







Main Features of Portable 3D Laser Scanner Optical Measuring Testing Machine Sony CCD Camera​:



1. without a computer, connected directly to the monitor, there is quasi-cross line drawing function, with the data processor DC3000


2. capable of lines, circles, arcs, angle measurements, compared with conventional projectors, longer life, high-definition screen improve the measurement accuracy, continuous zoom (30-220 times)


3. High-precision granite base, column, table ensure very high stability and rigidity.


4. The two-table design, precision V-guide, and ensure a high mechanical precision.


5. precision friction drive, sensitive and reliable, no backlash, and fast-moving.


6. High-quality optical system and high-resolution CCD, to ensure a high quality measurement.


7. LED cold light annular surface contour and cold light source. Avoid heat deformation.


8. precision optical ruler with a resolution 0.001MM





Functions of Portable 3D Laser Scanner Optical Measuring Testing Machine Sony CCD Camera:



1) Configuration of measuring environment parameter and movement parameter.



2) Probing system configuration and calibration.



3) Capture of measuring point.



4) Basic geometry element.



5) Element’s formation, transformation, review, projection, storage, transfer and relevant calculation.



6) Setup, storage and transformation of coordinate system and work piece coordinate system.



7) Assessment of dimension tolerance and position tolerance.



8) Store and input of measuring result file.



9) Import and convert CAD 3D model.



10) Coherence between Model coordinate system and part coordinate system.



11) Pickup of Features and curved surface points on the model.



12) Creation and measurement of section surface line.



13) Creation and measurement of curved surface.



14) Offline Programming based on CAD model.







Main Parameters of Portable 3D Laser Scanner Optical Measuring Testing Machine Sony CCD Camera:



Model:

HD-6050









Work table



Marble table size(mm)

930X850

Glass table size (mm)

760X650

Travel: X,Y  (mm)

600X500

Travel: Z

230mm

Z Effective space:

200mm

Weight:

860kg

Dimension (mm):

1130X1050X1700

Work distance :95mm

X,Y,Z Data Resolution :0.5um

Image system

1. Camera: Color 1/3``CCD camera

2. Video magnification :33-195X

3. Optical Magnification :0.7X-4.5X

4. Object view-field:8.1-1.3mm( for the length of the diagonal )

5.  The numerical errors of X, Y coordinates show=(3+L/200)um(L For the length of the product being tested,unit:mm)

6. Contour and surface illumination: Ring LED and brightness can be setup

Power supply

180V(AC)-260V(AC) 50Hz

Power

50W(without computer)
