Product Details:
|
Usage: | Sand And Dust Testing Chamber | External Size: | 170 * 150 * 190cm (approx.) |
---|---|---|---|
Inner Chamber Size: | 120 * 120 * 120cm | Air Pressure: | 86~106kpa |
Studio Temperature: | RT~60'C, Adjustable | Powder Type: | Talcum Powder |
Aspirator Flowing Quantity: | 0~6L/min | Pressure Tolerance: | 0~2kpa |
Testing Time: | 0~999h88m99s, Adjustable | Blower: | Centrifugal Fan |
Blowing Dust Cycle: | Interval Control, Adjustable | Door Material: | Tempering Glass |
Control Interface: | LCD Touch Screen | Power Supply: | AC380V, 50/60Hz, Three Phase |
High Light: | ingress protection test equipment,ingress protection testing |
IP Protection Tset Lcd Touch Screen Sand And Dust Test Chamber With Talcum Powder
HD-E706 Dust Test Chamber - IP5X&6X.pdf
Product description:
IP Protection Tset Lcd Touch Screen Sand And Dust Test Chamber With Talcum Powder is maily used to test control cabinet, household appliances, low voltage electric appliance, automobile, lamps and lanterns, motorcycle parts, ect outer shells. Test chamber pressure can be constant and changed, suitable for indoor low concentration dust pollution test, assessment sample in this environment of sealing and corrosion degree.
Applicable testing standards:
IEC- 60529, GB2423.37, GB4706, GB 4208, GB 10485, GB 7000.1, JIS-D0207-F2 , GJB 150.12, DIN, etc
Features:
1. The interior chamber used stainless steel, and the outer used cold-olled sheet with electrostatic spraying.
2. Small type programmable controller, the system has the protection function.
3. Mess diameter: 50μm
4. Wire spacing: 75μm
5. Stone powder quantity: 2kg/m3~4kg/m3
6. Suitable for for electrical, electronic, automobile, motorcycle LED and other products, spare parts etc dust test.
7. Equipment containing dust vertical circulation of air, dust can be reused for testing.
8.Device equipped with a vacuum system to meet the needs test.
Technical parameters:
Internal Dim.W×H×D(mm) | 1000×1000×1000 | 1000×1000×1000 | |||||
External Dim.W×H×D(mm) | 1350×1950×1350 | 1350×1950×1350 | |||||
Testing Type | F1 | F2 | F3 | IEC60529 | |||
C1 | C2 | ||||||
Concentration of dust(mg/m3) | Above 60000 | Above 3000 | Above 100 | Above 5000 | Above 100 | ||
Testing Temp. | 20 °c ±15 °c | ||||||
Humidity.Range | 45%~85%RH | ||||||
Testing Time | Swirl time | 5S or other | NO | ||||
Rest time | 15S or other | ||||||
Total time | 5H | 8H | 8H | 2H | 6H | ||
Material | Exterior | SUS#304+Powder Coated | |||||
Interior | SUS#304 | ||||||
Other Components | Chamber lamp,Wiper,Casters with adjusters | ||||||
Power Source(K.W.) | AC 1Ψ 220V 60/50Hz 4KW |
Working environment:
1. Temperature: 5~35'C; Relative humidity: 45%~85%RH;
2. Without strong vibration and Electromagnetic effect around;
3. Test chamber should be stable placed and keep balance;
4. Installation place should keep good ventilation, without strong airflow, high dust and corrosive material.
Chamber Structure:
1, Chamber material: SUS#304 stainless steel;
2, Transparent window is convenient to observe specimen during testing;
3, Blow fan adopts stainless steel shell, high sealing and wing speed, low noise;
4, Inside the shell is the funnel type, vibration cycle can be adjusted, dust free float in the sky falling to blowing the hole together.

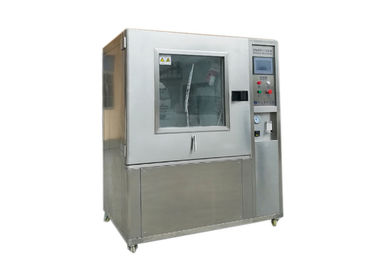

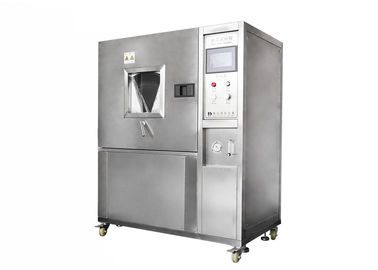

CE Approved Simulation Sand and Dust Resistance Testing Cabinet view:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
4,Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5,Good Packaging:
Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
